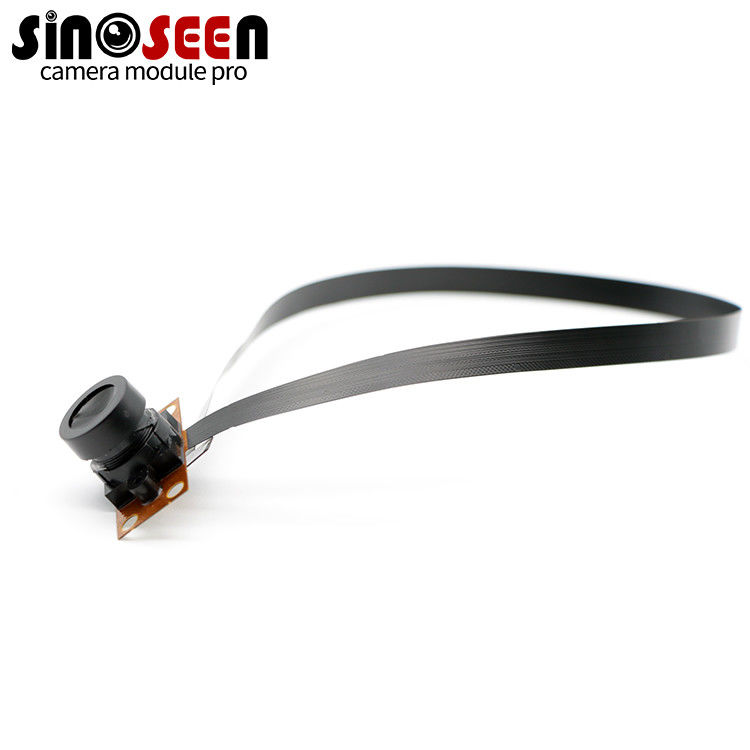

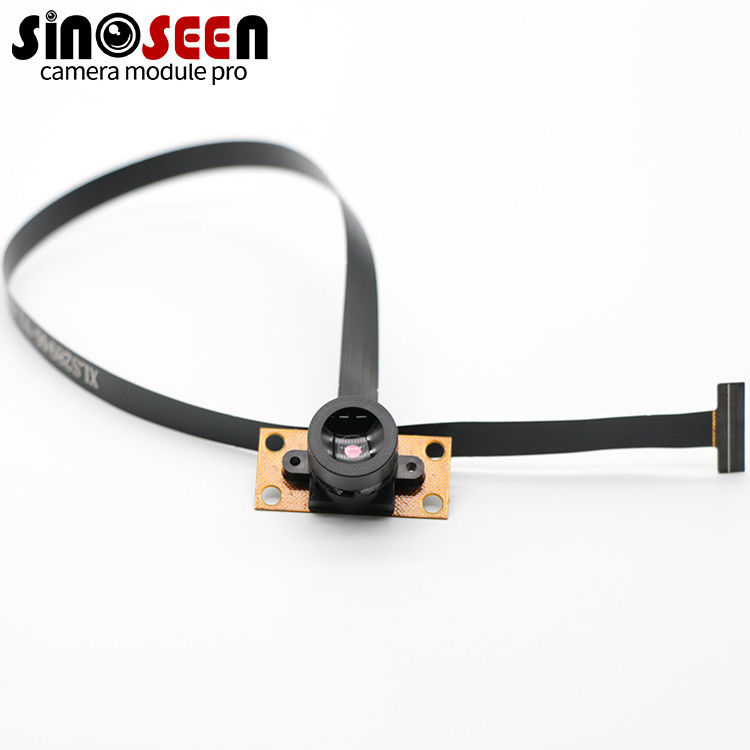

2MP 1080P HDR ADAS MIPI Camera Module High Temperature Resistance
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-28946-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | 1/2.9" Omnivision OV2775 |
|---|---|---|---|
| Resolution: | 2MP 1920(H) X 1080(V) | Dimensions: | Customizable |
| Lens FOV: | 100°(optional) | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | HDR |
| High Light: | 2MP MIPI Camera Module,1080P MIPI Camera Module,MIPI adas camera module |
||
Product Description
2MP 1080P HDR ADAS MIPI Camera Module High Temperature Resistance
High Temperature Resistance 2MP 1080P HDR ADAS MIPI Camera Module With Omnivision OV2775 Sensor
This is a MIPI camera module with high temperature resistance (temperature range:operating: -40°C to 105°C sensor ambient temperature and -40°C to 125°C junction temperature) and low power consumption. The sensor is OV2775 from Omnivision Technology. OV2775 is a very powerful chip with the following features:
Support for image size: 1920x1080, VGA, QVGA, and any cropped size
High dynamic range
High sensitivity
low power consumption
Image sensor processor functions: lens correction, defective pixel cancelation, HDR combination, and automatic black level correction
Supported output formats: RAW horizontal and vertical sub-sampling
SCCB for register programming
High speed serial data transfer with MIPI CSI-2/LVDS
Parallel 12-bit DVP output
External frame synchronization capability
Embedded temperature sensor
One time programmable (OTP) memory
|
Module No |
SNS-28946-V1.0 |
|
Pixel Size |
2.8μm x 2.8μm |
|
Effective Pixels |
2MP 1920(H) x 1080(V) |
|
Video output |
Raw Bayer10bit/8bit |
|
Active Array Size Video Rate |
1080p@30FPS |
|
Image Sensor |
1/2.9" |
|
Sensor Type |
Omnivision OV2775 |
|
Lens view |
FOV100°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
-40～105℃ |
|
Storage temperature |
-40～125℃ |
|
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
