60FPS Fixed Focus MIPI CSI Camera Module Flexible FPC With Aptina AR0130
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-FPC0130-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI CSI Camera Module | Sensor: | 1/3"Aptina AR0130 |
|---|---|---|---|
| Resolution: | 1MP 1280(H) X 960(V) | Dimensions: | Customizable |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | HD |
| High Light: | 60FPS CSI Camera Module,AR0130 CSI Camera Module,60fps camera module |
||
Product Description

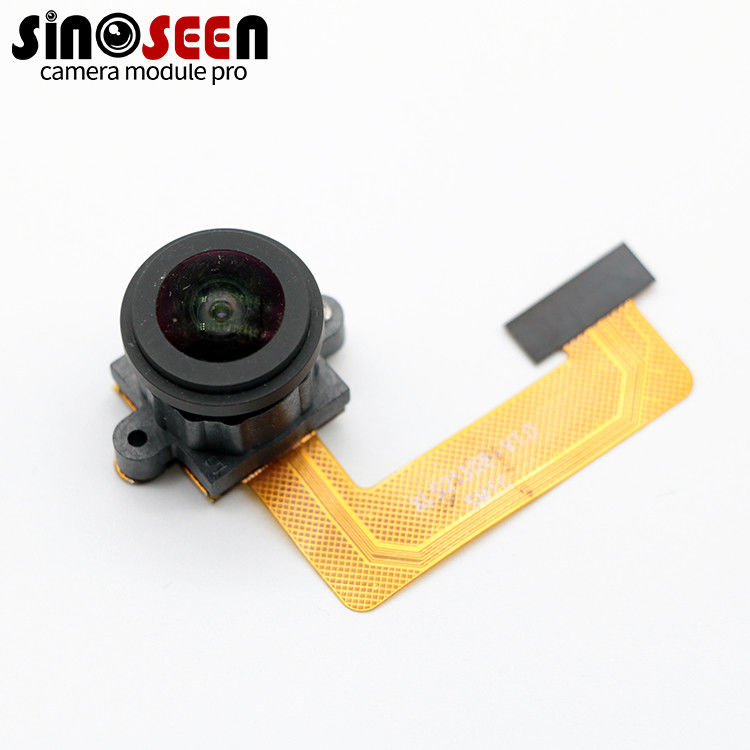

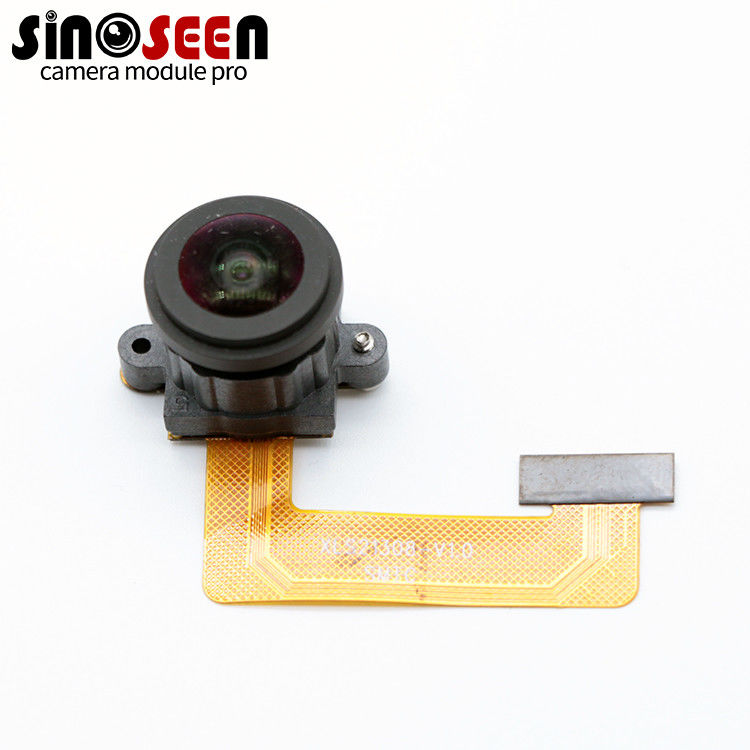

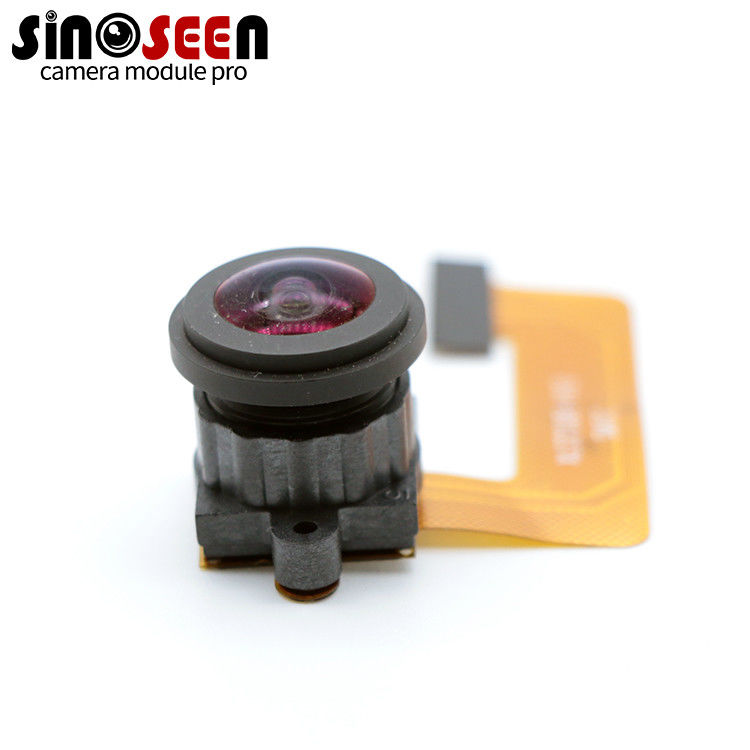

60FPS Fixed Focus MIPI CSI Camera Module Flexible FPC With Aptina AR0130
1MP 720P 60FPS HD Fixed Focus Flexible FPC MIPI Camera Module With Aptina AR0130
MIPI CSI Camera Module
This is a 1MP MIPI camera module with Aptina AR0130.Aptina's AR0130 is a 1/3-inch CMOS digital image sensor with an active-pixel array of 1280H x 960V. It captures images with a rolling-shutter readout. It includes sophisticated camera functions such as auto exposure control, windowing, and both video and single frame modes. It is programmable through a simple two-wire serial interface. The AR0130 produces extraordinarily clear, sharp digital pictures, and its ability to capture both continuous video and single frames makes it the perfect choice for a wide range of applications, including gaming systems, surveillance, and HD video.
Features
• Superior low-light performance both in VGA mode and HD mode
• Excellent Near IR performance
• HD video (720p60)
• On-chip AE and statistics engine
• Auto black level calibration
• Context switching
• Progressive Scan
• Supports 2:1 scaling
• Internal master clock generated by on-chip phase locked loop (PLL) oscillator.
• Parallel output
Applications
• Gaming systems • Video surveillance • 720p60 video applications
Specification
|
Module No |
SNS-FPC0130-V1 |
|
Pixel Size |
3.75μm x 3.75μm |
|
Effective Pixels |
1MP 1280(H) x 960(V) |
|
Video output |
Raw Bayer10bit/8bit |
|
Active Array Size Video Rate |
60FPS |
|
Image Sensor |
1/3" |
|
Sensor Type |
Aptina AR0130 |
|
Lens view |
FOV90°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
0～60℃ |
|
Storage temperature |
-20～70℃ |
|
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
