OV4689 Sensor Stereo 3D Dual Lens Camera Module For Facial Regognition
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Sinoseen |
Certification: | RoHS |
Model Number: | SNS-3MP-DualOV4689-V1.0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 3 |
---|---|
Price: | negotiable |
Packaging Details: | Tray+Anti-static bag in carton box |
Delivery Time: | 2-3weeks |
Payment Terms: | T/T |
Supply Ability: | 500000 pieces/month |
Detail Information |
|||
Type: | USB Camera Module | Sensor: | 1/3" Omnivision OV4689 |
---|---|---|---|
Resolution: | 3MP (3040*1080) | Dimensions: | 47.2mmx14mm(customizable) |
Lens FOV: | 50°(optional) | Focus Type: | Fixed Focus |
Interface: | USB2.0 | Feature: | Dual Lens |
Highlight: | OV4689 3D Dual Lens Camera Module,3D 3MP Dual Lens Camera Module,OV4689 dual camera module |
Product Description

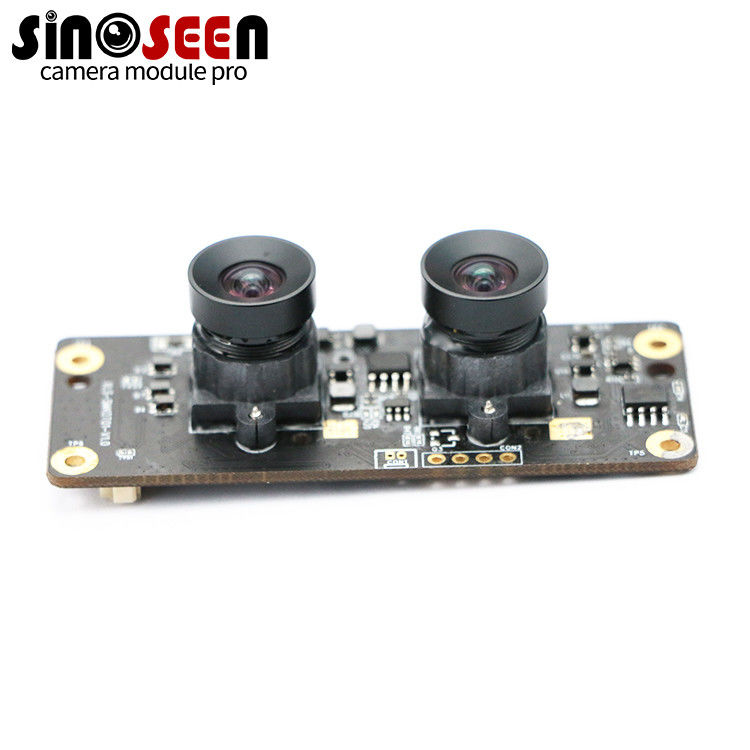

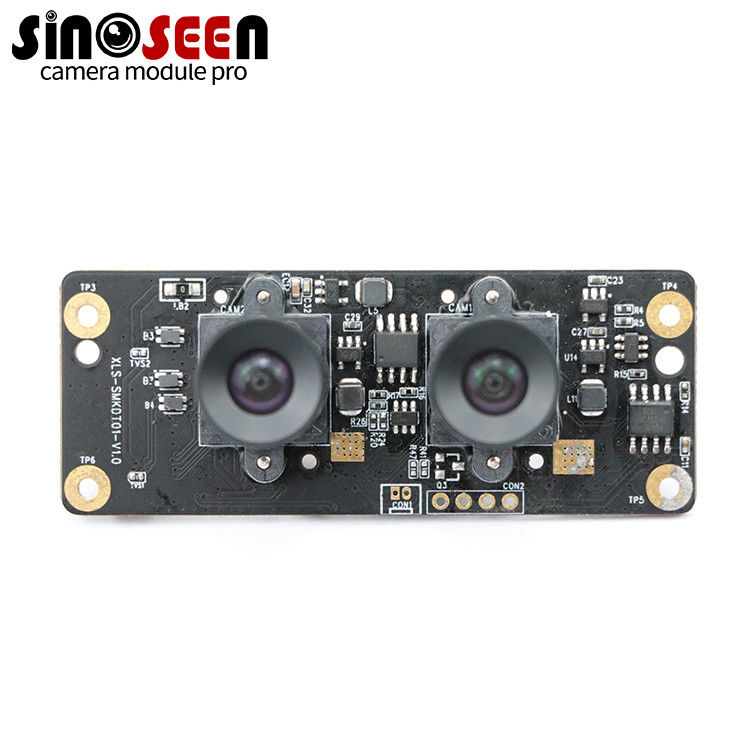

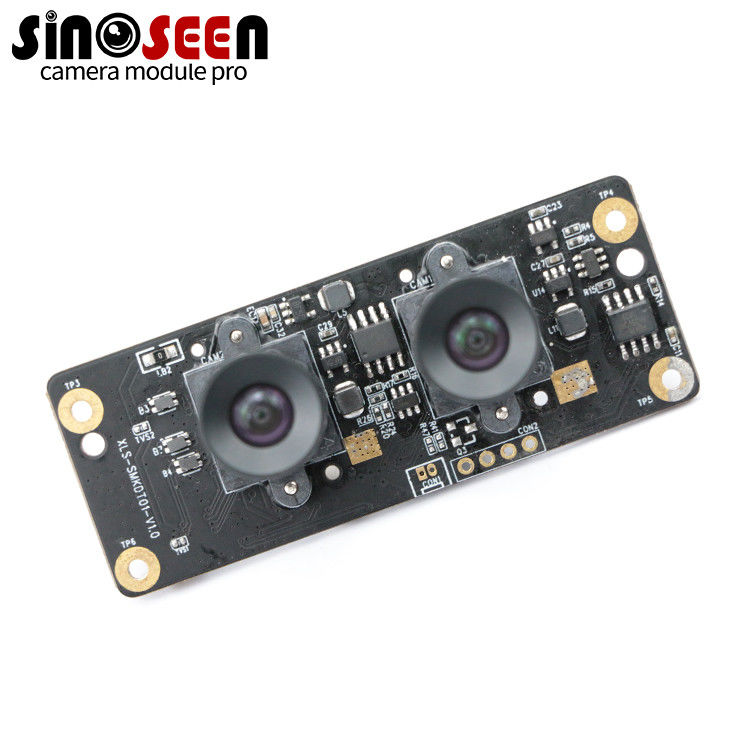

OV4689 Sensor Stereo 3D Dual Lens Camera Module For Facial Regognition
Dual lens stereo 3D usb camera module with OV4689 sensor for Facial regognition
Dual Lens Camera Module
For the dual lens camera module, this is definitely the smallest one, its size is 47.2MM * 14MM. Both sensors are high-quality Omnivision OV4689 CMOS image sensors with a resolution of up to 3040x1080 (3.28 megapixels).
Only 1 DSP and 1 USB cable control 2 sensors/lenses, which makes it a synchronous technology, that is, 2 photos are displayed as 1 image, and they have the same resolution and frame rate.
Both sensors/images are in color, but if needed, we can make one image in color, the other image in black/white, or both in black and white.
The camera module is widely used in 3D, artificial intelligence, robotics, computer vision, game systems, VR, AR, face recognition, Internet of Things, depth detection, distance detection, automobiles, medical equipment, artificial intelligence, imaging, machines and other applications Vision, security system, etc...
Specification
Model No |
SNS-3MP-DualOV4689-V1.0 |
Sensor |
1/3’’ Omnivision OV4689 |
Pixel |
3 Mega Pixel |
Most effective pixels |
3040(H) x 1080(V) |
Pixel Size |
2.0µm x 2.0µm |
Image area |
5440um(H) x 3072um (V) |
Compression format |
MJPG/YUY2 |
Resolution & Frame rate |
See above |
Shutter Type |
Electronic rolling shutter |
Focus type |
Fixed focus |
S/N ratio |
39.3dB |
Dynamic range |
64.6dB |
Sensitivity |
1900mV / lux-sec |
Interface type |
USB 2.0 high speed |
Lens |
Lens Size: 1/3’’ inch |
|
FOV: 50° |
|
Thread Size: M8 |
Audio frequency |
Optional |
Power supply |
USB BUS POWER |
Power consumption |
DC 5V, 240mW-300mW |
Main chip |
DSP/SENSOR/FLASH |
Auto Exposure Control (AEC) |
Support |
Auto White Balance (AEB) |
Support |
Auto Gain Control (AGC) |
Support |
Dimension |
47.2MM*14MM |
Storage temperature |
-20°C to 70°C |
Operating temperature |
0°C to 60°C |
USB cable length |
Default |
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
