WDR FHD Dual Lens Camera Module 1920x1080 Pixels AR0230 HM2131 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-USB1020SM-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | ON Semiconductor AR0230+HiMax HM2131 |
|---|---|---|---|
| Resolution: | 2x2MP 1928x1088 | Dimensions: | Customizable |
| Lens FOV: | 70°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Dual Lens |
| High Light: | 2MP Dual Lens Camera Module,HM2131 Dual Lens Camera Module,HM2131 binocular camera module |
||
Product Description
WDR FHD Dual Lens Camera Module 1928x1088 Pixels AR0230 HM2131 Sensor
WDR FHD Dual Lens USB Camera Module With ON Semiconductor AR0230 And HiMax HM2131
camera module

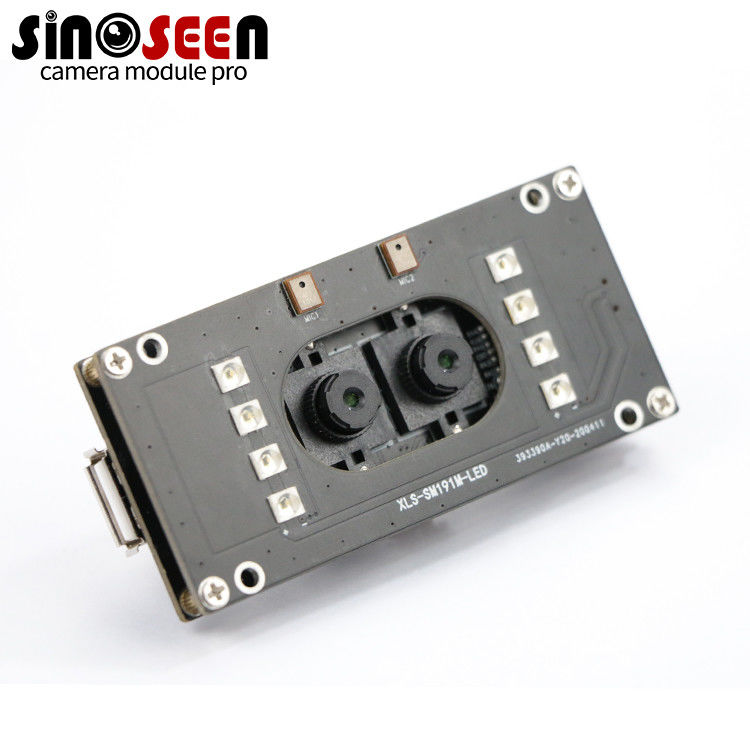

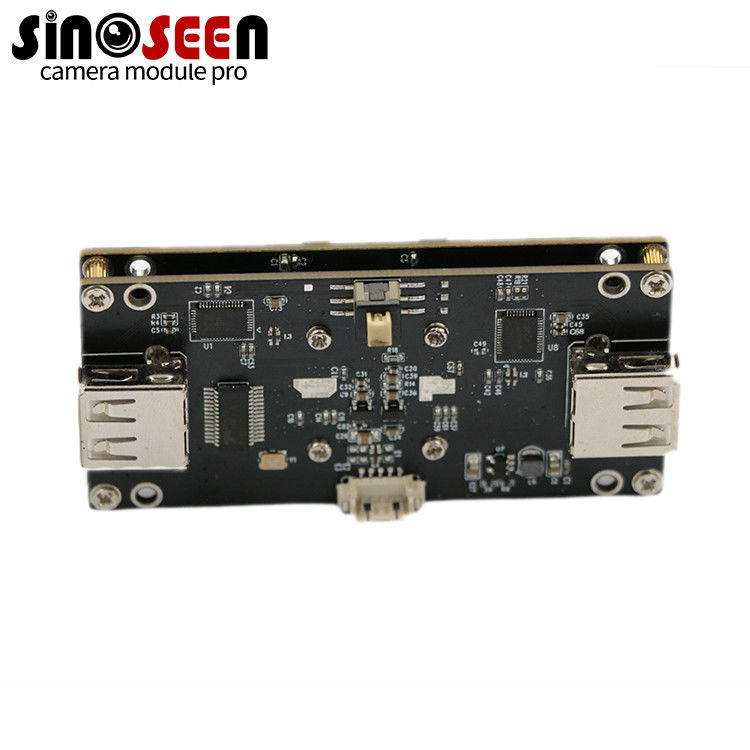

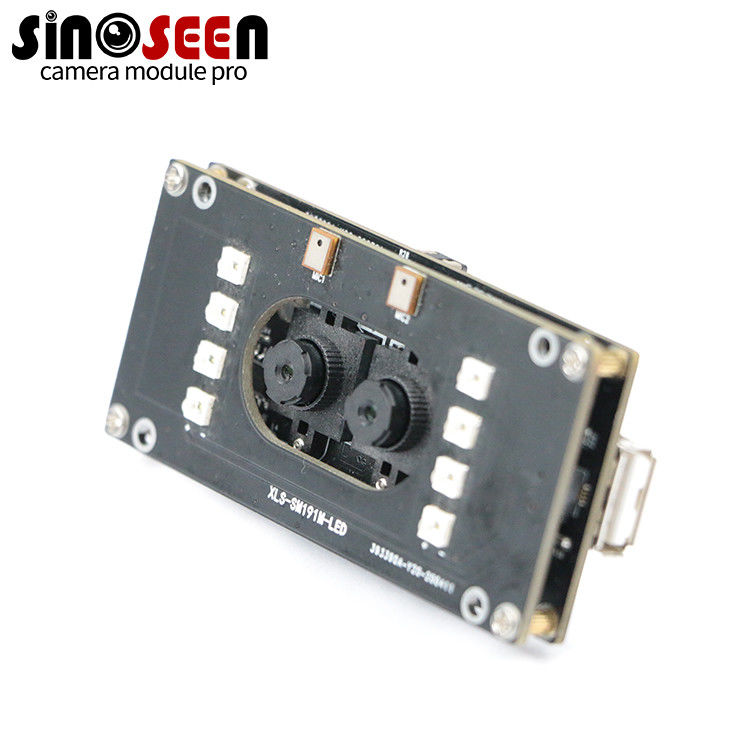

This is a very good binocular camera module with 8 high-power LED lights and two excellent microphones. For heat dissipation considerations, we use a double-layer PCB board design, and the lower board uses two very good ones. The 2MP chips are AR0230 from ON Semiconductor and HM2131 from HiMax. Both chips can output 1080P@30FPS. Among them, AR0230 is a wide dynamic range sensor, which also has a good picture performance in a backlit environment. The HM2131 is FHD, the best 2MP chip on the market.
You can also choose other sensors you need to do this dual lens camera module,you can choose it with or without LEDs and microphones,you can also choose it to be fixed focus or auto focus,in a word,we can customize such dual lens camera module as per your request.
Specification:dual lens camera module
|
Signal |
2.1M WDR |
2.1M FHD B/W |
REMARKS |
|
|
Image sensor |
AR0230 |
HM2131 |
|
|
|
Image sensor size |
1/2.7”CMOS |
1/2.7”CMOS |
|
|
|
Effective Pixels |
1920X1080 |
1920X1080 |
|
|
|
Pixel Size |
3.0umX3.0um |
3.0umX3.0um |
|
|
|
Optical distortion |
≤1% |
|
||
|
Image sensor Data output |
Raw Data 10bits |
|
||
|
Video output |
MPJG / YUY2 |
|
||
|
Maximum Frame Rates |
1920x1080 at 30fps 1280x720 at 30fps 800x600 at 30fps 640x480 at 30 fps 320x240 at 30fps |
1920x1080 at 30fps 1280x720 at 30fps 800x600 at 30fps 640x480 at 30fps 320x240 at 30fps |
MPEG |
|
|
Maximum Frame Rates |
1920x1080 at 10fps 1280x720 at 10fps 800x600 at 15fps 640x480 at 15 fps 320x240 at 15fps |
1920x1080 at 10fps 1280x720 at 10fps 800x600 at 15fps 640x480 at 15 fps 320x240 at 15fps |
YUY2
|
|
|
SNR max |
≤41dB |
≤39dB |
|
|
|
Dynamic range |
≤105dB |
≤62dB |
|
|
|
Min. Illumination |
≥0.01LUX at F1.2 |
≥0.01LUX at F1.2 |
NO LED |
|
|
Digital interface |
4pin 1.25mm USB2.0 |
|
||
|
Transfer rates |
480MB/S |
|
||
|
Power requirements |
5V± 5% |
|
||
|
Power Consumption |
NO LED |
Max 1W |
Max 0.9W |
|
|
|
IR LED |
|
|
|
|
LED IR-850 |
NO |
NO |
LED |
|
|
Lens view |
M8/D:70°H:65°V:40°/650IR |
LENS |
||
|
Lens view |
M8/D:70°H:65°V:40°/850IR |
LENS |
||
|
OS |
Windows XP /vista/seven/8.1/Mac /Android/linux2.6.2(include UVC ) |
|
||
