Synchronized Tech 60FPS Dual Lens Camera Module 2.5MP 3D Stereo
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-2MP-OV9750-S1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/3" Omnivision OV9750 |
|---|---|---|---|
| Resolution: | 2.5MP 2560(H) X 960(V) | Dimensions: | 156MM X 36MM(customizable) |
| Lens FOV: | 80°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Synchronized Tech |
| High Light: | 60FPS Dual Lens Camera Module,2.5MP Dual Lens Camera Module,60FPS nir camera module |
||
Product Description
Synchronized Tech 60FPS Dual Lens Camera Module 2.5MP 3D Stereo
Dual lens Synchronized tech 3D Stereo 60FPS high frame rate USB Camera module with OV9750 sensor

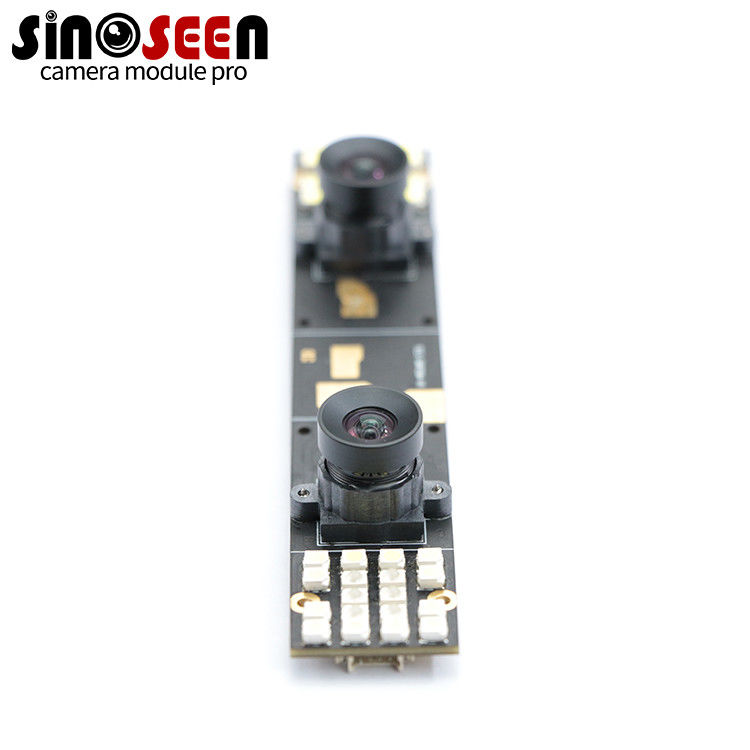

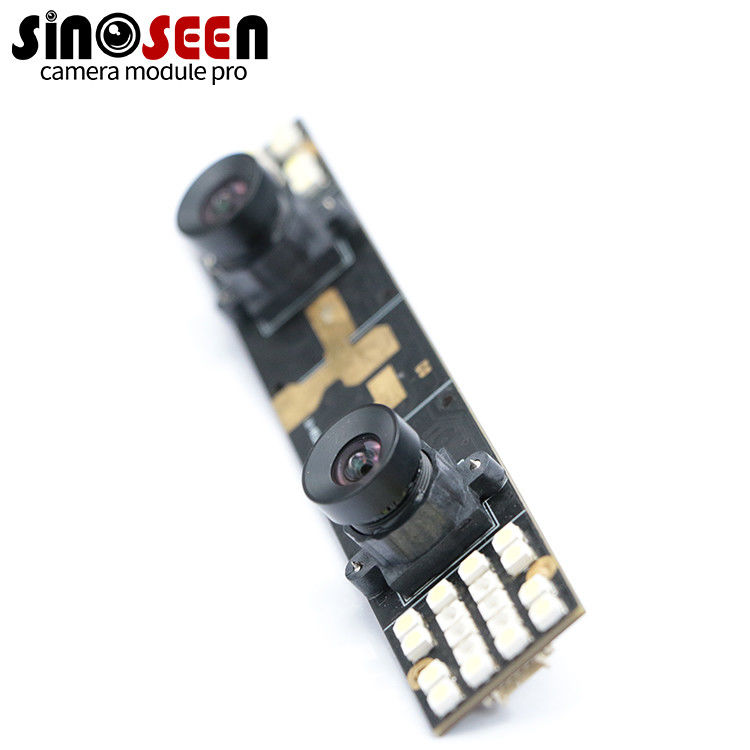

dual lens camera module
This is our latest 3D stereo dual lens camera module. The camera has the following advantages:
1. It supports a high frame rate of up to 60FPS, while most dual-lens cameras on the market can only support a frame rate of 30FPS;
2. It can be used as a dual-lens camera or a single-lens camera. The different resolution determines whether it is a dual-lens camera or a single-lens camera.
3. We use a high-quality Omnivision OV9750 CMOS sensor (1/3 inch) with a resolution of up to 2.5 megapixels (2560x960)
4. OV9750 sensor also has high near infrared (NIR) sensitivity, suitable for day and night camera applications.
This camera mainly supports different lenses of 55°FOV, 80°FOV, 100°FOV and 130°FOV. When ordering from us, please let us know which FOV you need.
This dual lens camera module can be widely used in many high-tech applications, such as facial recognition, gesture recognition, depth sensing, 3D, mapping, AR, VR, robotics, AI, agricultural technology, computer vision, machine vision, industrial automation, etc. .
Specification
|
Model No |
SNS-2MP-OV9750-S1 |
|
Sensor |
1/3’’ Omnivision OV9750 |
|
Pixel |
2.5 Mega Pixel |
|
Most effective pixels |
2560(H) x 960(V) |
|
Pixel Size |
3.75µm x 3.75µm |
|
Image area |
4860µm x 3660µm |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus/Manually adjustable |
|
S/N ratio |
43.1dB |
|
Dynamic range |
73.4dB |
|
Sensitivity |
39.6 ke- / lux-sec |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
focal length: 3.6mm |
|
Lens Size: 1/3 inch |
|
|
FOV: 80° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
156MM x 36MM |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Camera module customization process
1 According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right SENSER+ lens solution, and then design the product PCB or FPC according to the structural requirements.
2 examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
