GC1064 Sensor 30FPS Dual Lens Camera Module 1MP 720P For Smart Robots
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-SM191M-LED-V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | Galaxy GC1064 |
|---|---|---|---|
| Resolution: | 2x1MP 1280x720x2 | Dimensions: | Customizable |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Dual Lens |
| High Light: | GC1064 Dual Lens Camera Module,30FPS 1MP Dual Lens Camera Module,GC1064 robot camera module |
||
Product Description

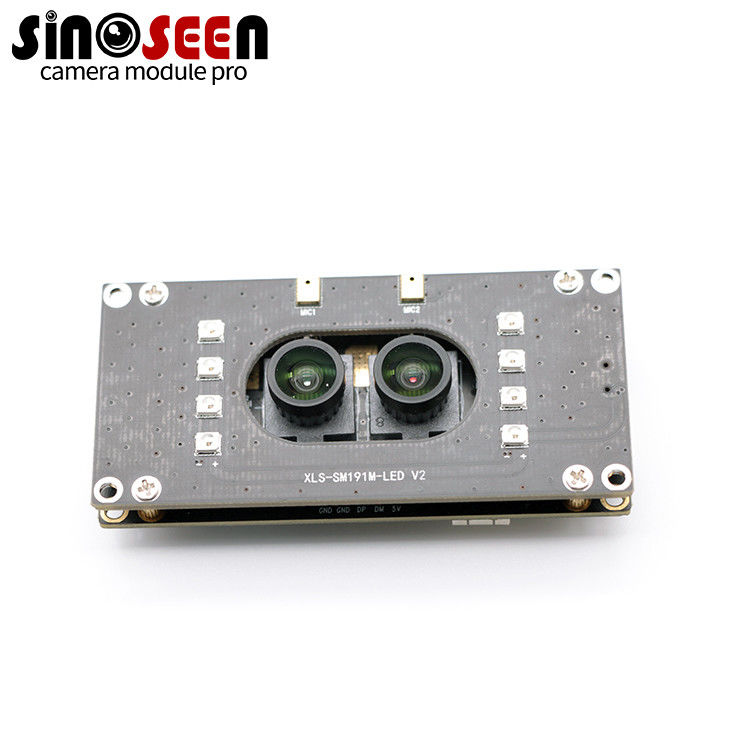

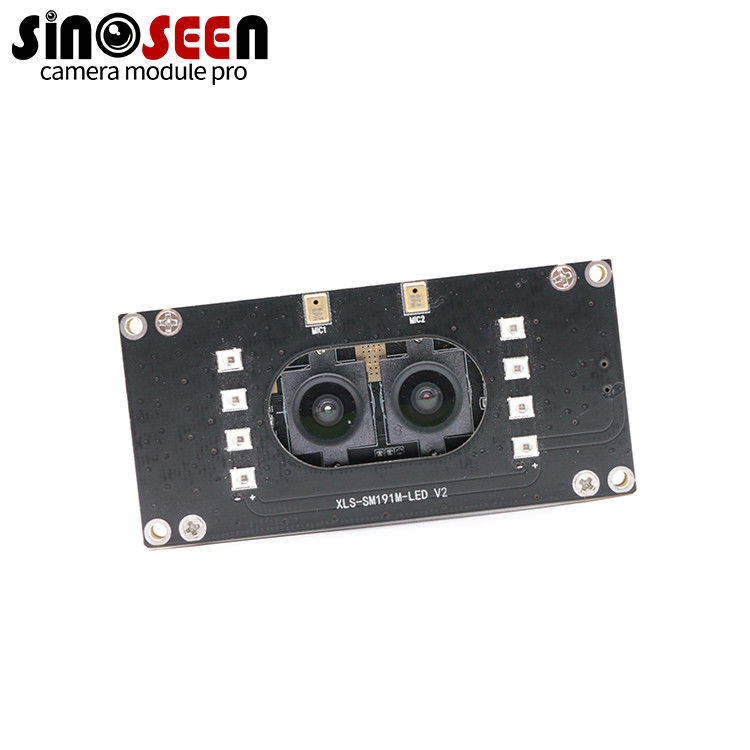

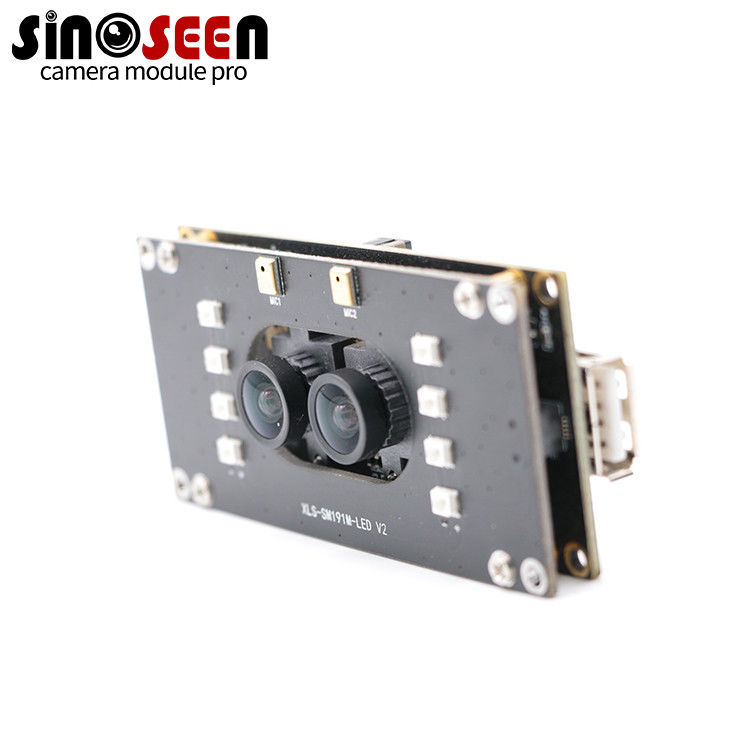

GC1064 Sensor 30FPS Dual Lens Camera Module 1MP 720P For Smart Robots
1MP 720P 30FPS Dual Lens Binocular USB Camera Module With GalaxyCore CMOS Sensor GC1064
Dual Lens Camera Module
This is a relatively economical binocular 1MP USB camera module. Both cameras use the GC1064 from the Chinese chip manufacturer GalaxyCore. The GC1064 can output 720P and can reach 30FPS at full resolution.
The two cameras are controlled by two independent DSPs. You can turn on one camera or two cameras.
This 1MP 720P USB dual lens camera module can be applied to many fields, such as face recognition, living body recognition, smart robots, self-service terminals, gate access control systems, attendance machines, ATM self-service machines, game interaction, etc.
Specification
|
Model No |
SNS-SM191M-LED |
|
||
|
Image Sensor |
GC1064 |
GC1064 |
|
|
|
Image Sensor |
1/4”CMOS |
1/4”CMOS |
|
|
|
Effective Pixels |
1280X720 |
1280X720 |
|
|
|
Pixel size |
3.4umX3.4um |
3.4umX3.4um |
|
|
|
Optical distortion |
≤6.4% |
|
||
|
Image sensor Data output |
Raw Data 10bits |
|
||
|
Video output |
MPJG / YUY2 |
|
||
|
Maximum Frame Rates |
1280x720 at 30fps 800x600 at 30fps 640x480 at 30 fps 320x240 at 30fps
|
1280x720 at 30fps 800x600 at 30fps 640x480 at 30 fps 320x240 at 30fps
|
MJPG |
|
|
SNR max |
41dB |
41dB |
|
|
|
Min. Illumination |
≥0.01LUX at F1.2 |
≥0.1LUX at F1.2 |
NO LED |
|
|
Digital interface |
5pin 1.25mm USB2.0 |
|
||
|
Power requirements |
5V±5% |
|
||
|
Power Consumption |
NO LED |
Max 1W |
Max 1W |
|
|
|
IR-LED |
Max 2W |
|
|
|
LED IR-850 |
≤90°500mm |
NO |
LED |
|
|
Lens view |
M8/ FOV90°(f=2.4MM) |
LENS |
||
|
OS |
Windows XP /vista/seven/8.1/Mac linux2.6.2(include UVC ) |
|
||
