Anti Glare 1080p HD Face Recognition Camera Module Wide Dynamic Range
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-USB1080P02-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2.7" Aptina AR0230 |
|---|---|---|---|
| Resolution: | 2MP (1920*1080) | Dimensions: | 38*38mm (compatible For 32*32)(customizable) |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Wide Dynamic Range |
| High Light: | AR0230 Face Recognition Camera Module,2MP Face Recognition Camera Module,AR0230 3d camera module |
||
Product Description
Anti Glare 1080p HD Face Recognition Camera Module Wide Dynamic Range

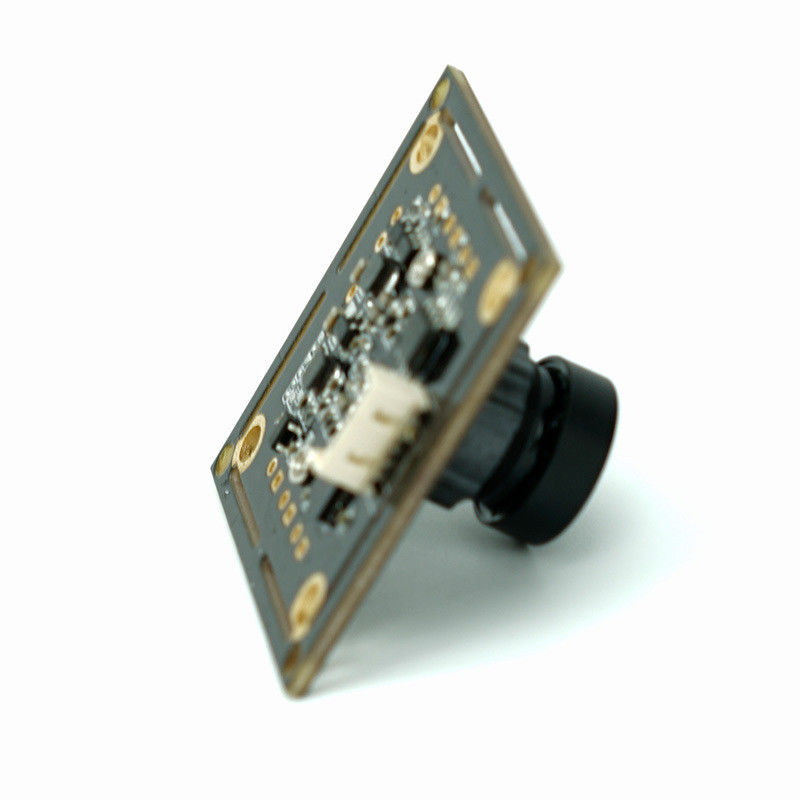

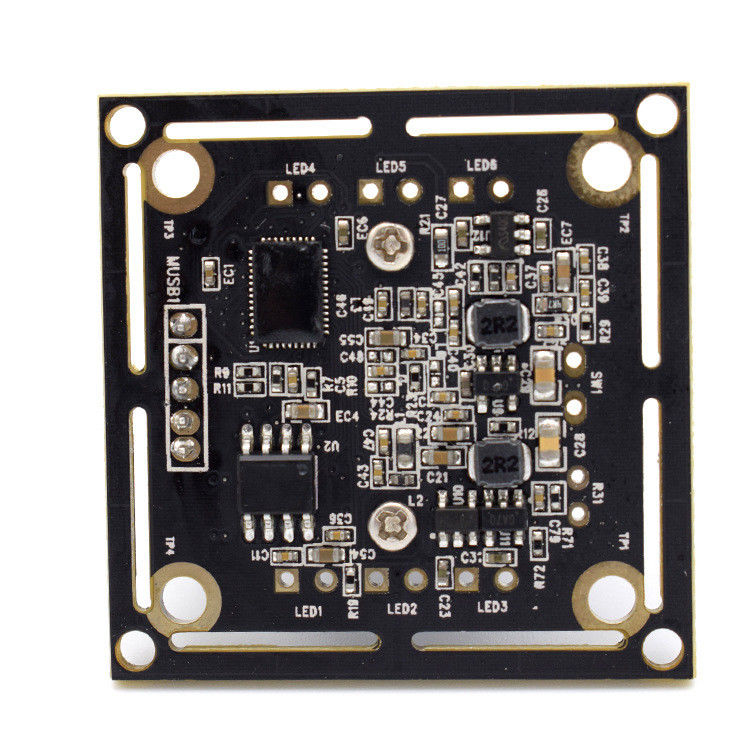

Wide Dynamic Range 1080p HD Anti-Glare WDR USB Camera Module with AR0230 sensor
This is a WDR(wide dynamic range) USB2.0 camera modules with APTINA AR0230 CMOS sensor. It can be used in many applications like face recognition, Automotive, Robotics, Machine vision, ADAS, intelligent machines, kiosk, vending machine, strong/weak light condition, windows/entrance surveillance, etc
Features
• Superior low-light performance
• Latest 3.0 m pixel with ON Semiconductor DR-Pix™ technology with Dual Conversion Gain
• Full HD support at up to 1080P 60 fps for superior video performance
• Linear or high dynamic range capture
• Optional adaptive local tone mapping (ALTM)
• Pixel or Line interleaved T1/T2 output
• Support for external mechanical shutter
• On-chip phase-locked loop (PLL) oscillator
• Integrated position-based color and lens shading correction
• Slave mode for precise frame-rate control
• Stereo/3D camera support
• Statistics engine
• Data interfaces: four-lane serial high-speed pixel interface (HiSPi) differential signaling (SLVS and HiVCM), or parallel
• Auto black level calibration
• High-speed configurable context switching
• Temperature sensor
Applications
• Video surveillance
• 1080p60 (Surveillance) video applications
• High dynamic range imaging
General Description
ON Semiconductor's AR0230CS is a 1/2.7-inch CMOS digital image sensor with an active-pixel array of 1928Hx1088V. It captures images in either linear or high dynamic range modes, with a rolling-shutter readout. It includes sophisticated camera functions such as in-pixel binning, windowing and both video and single frame modes. It is designed for both low light and high dynamic range scene performance. It is programmable through a simple two-wire serial interface. The AR0230CS produces extraordinarily clear, sharp digital pictures, and its ability to capture both continuous video and single frames makes it the perfect choice for a wide range of applications, including surveillance and HD video.
Specification
|
Model No |
SNS-USB1080P02-V1.0 |
|
Sensor |
1/2.7’’ Aptina AR0230 |
|
Resolution |
2 Mega Pixel |
|
Most effective pixels |
1920 X 1080 |
|
Pixel Size |
3.0μm X 3.0μm |
|
Resolution |
See above |
|
Compression format |
YUY2/MJPG |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Lens FOV |
70° and customizable |
|
Input clock frequency |
6-48MHz |
|
Focus type |
Fixed focus/Manually adjustable |
|
S/N ratio |
41dB |
|
Dynamic range |
UP to 96dB |
|
Dark current |
<10mA |
|
Interface type |
USB2.0 |
|
Microphone |
Optional |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Automatic Exposure Control (AEC) |
Support |
|
Automatic White Balance (AEB) |
Support |
|
Automatic Gain Control (AGC) |
Support |
|
Dimension |
38*38mm (compatible for 32*32) |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB Wire |
Default |
|
|
WinXP/Vista/Win7/Win8/Win10 |
