Small Size 2MP USB Face Recognition Camera Module AR0230 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-2MP-AR0230-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2.7" Aptina AR0230 |
|---|---|---|---|
| Resolution: | 2MP (1920*1080) | Dimensions: | 60x13mm(customizable) |
| Lens FOV: | 80°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | High Dynamic Range |
| High Light: | 1920*1080 Face Recognition Camera Module,AR0230 Face Recognition Camera Module,1920*1080 uvc camera module |
||
Product Description
Small Size 2MP USB Face Recognition Camera Module AR0230 Sensor
Small Size HDR High Dynamic Range 2MP USB Camera Module With AR0230 Sensor
Camera Module AR0230 Sensor

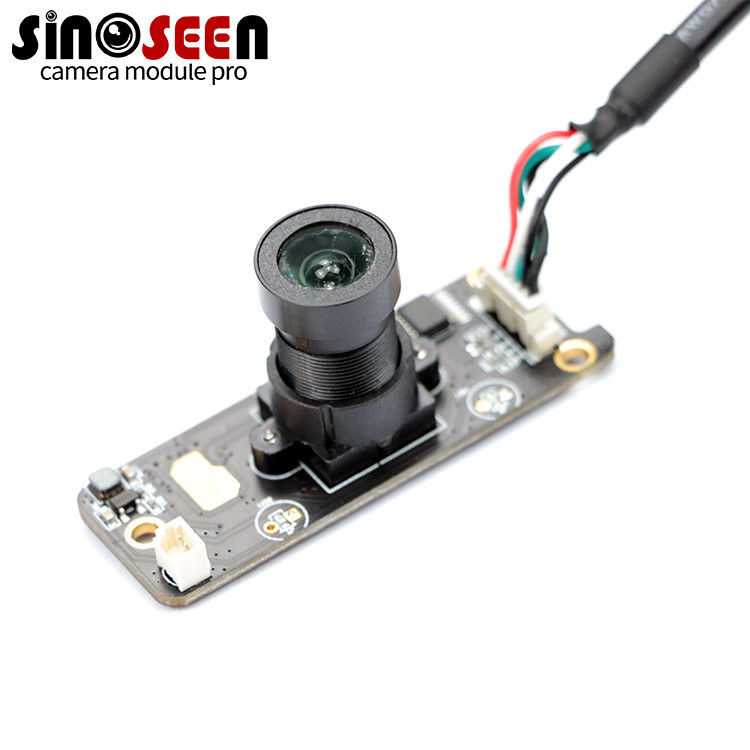

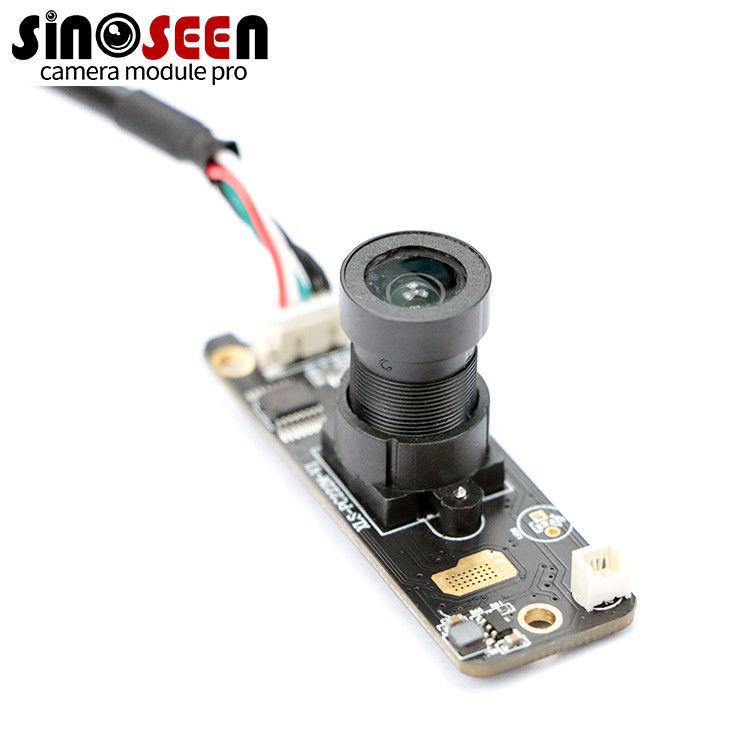

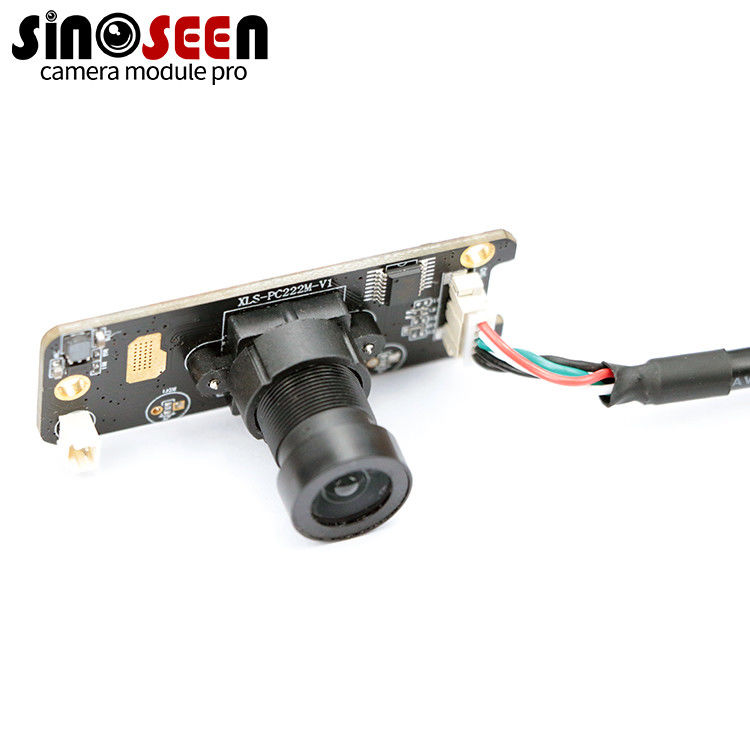

This is a small size USB2.0 camera modules with APTINA AR0230 CMOS sensor. The current size is 60MMX13MM and can be customized as you required. The resolution of this camera is 2MP (1920 X 1080) and it supports 30FPS frame rate at full resolution. Another advantage of this module is that its dynamic range is up to 96dB, which can be used for many applications, such as facial recognition, cars, robots, machine vision, ADAS, smart machines, kiosks, vending machines, strong light and low light status, window/entry monitoring, etc.
Specification
|
Model No |
SNS-2MP-AR0230-V1.0 |
|
Sensor |
1/2.7’’ Aptina AR0230 |
|
Resolution |
2 Mega Pixel |
|
Most effective pixels |
1920 X 1080 |
|
Pixel Size |
3.0μm X 3.0μm |
|
Resolution |
See above |
|
Compression format |
YUY2/MJPG |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Lens FOV |
80° and customizable |
|
Input clock frequency |
6-48MHz |
|
Focus type |
Fixed focus/Manually adjustable |
|
S/N ratio |
41dB |
|
Dynamic range |
UP to 96dB |
|
Dark current |
<10mA |
|
Interface type |
USB2.0 |
|
Microphone |
Optional |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Automatic Exposure Control (AEC) |
Support |
|
Automatic White Balance (AEB) |
Support |
|
Automatic Gain Control (AGC) |
Support |
|
Dimension |
60x13MM |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB Wire |
Default |
|
|
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
