Face Recognition Compact Camera Module 2MP 60fps Low Light Performance
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-2MP-IMX307-M1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | 1/2.8" SONY IMX307 |
|---|---|---|---|
| Resolution: | 2MP 1920x1080 | Dimensions: | Customizable |
| Lens FOV: | 80°(optional) | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | WDR |
| High Light: | MIPI Compact Camera Module,2MP 60fps Compact Camera Module,MIPI low light camera module |
||
Product Description
Face Recognition Compact Camera Module 2MP 60fps Low Light Performance
Low Light Performance 2MP Fixed Focus Face Recognition WDR MIPI Camera Module

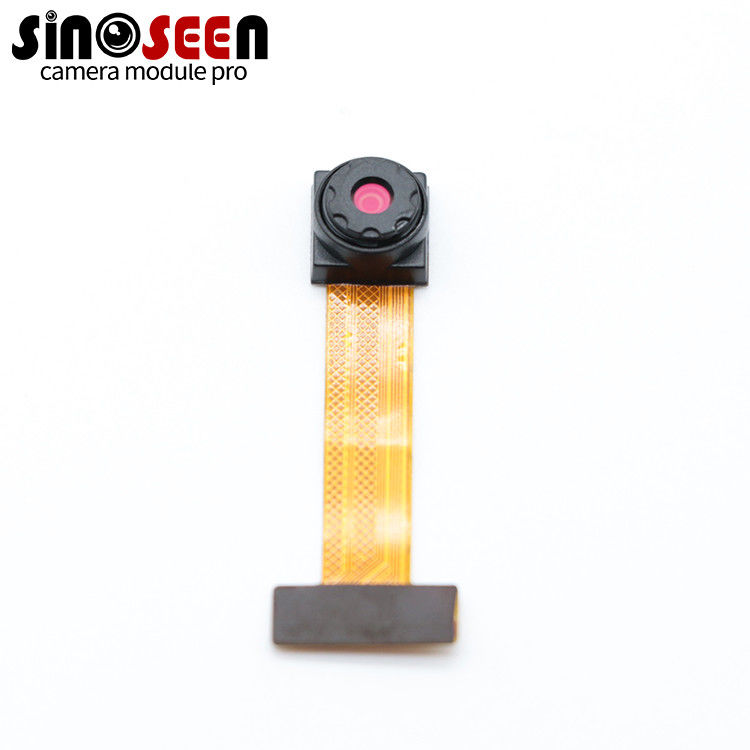

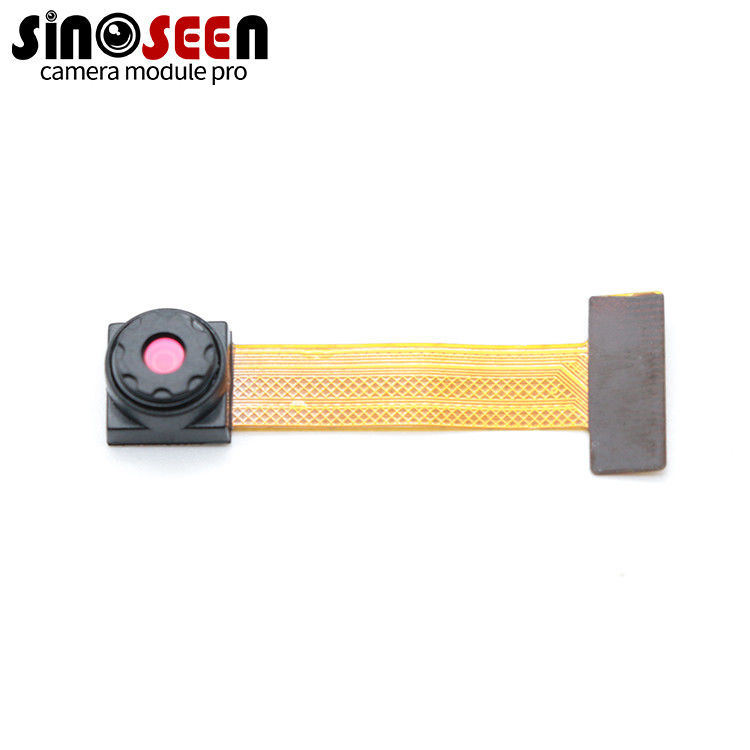

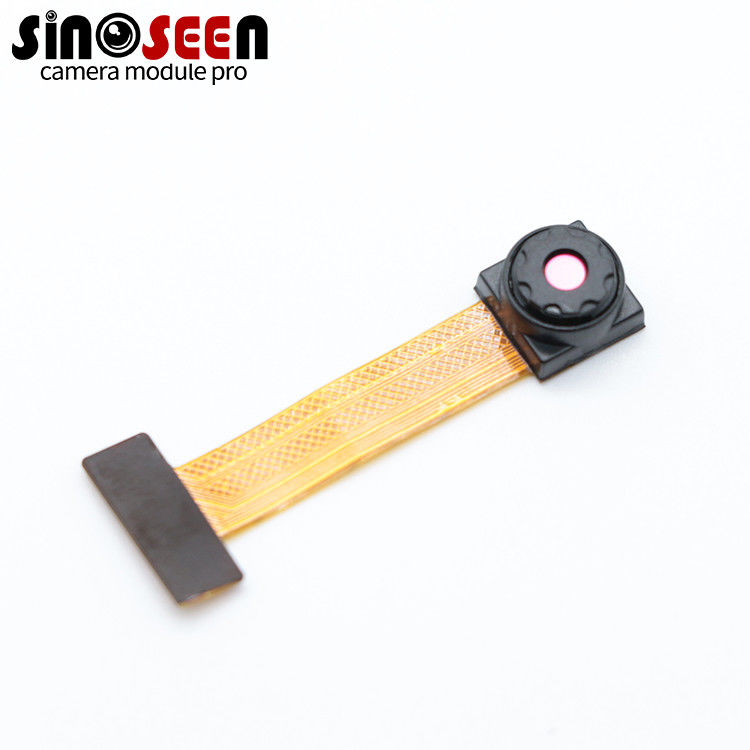

This is a 2MP MIPI camera module with SONY IMX307 sensor. IMX307 has excellent performance in low-light environments, so it is very suitable for face recognition applications. The IMX307LQR-C is a diagonal 6.46 mm (Type 1/2.8) CMOS active pixel type solid-state image sensor with asquare pixel array and 2.13 M effective pixels. This chip operates with analog 2.9 V, digital 1.2 V, and interface 1.8 Vtriple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time.
Features
◆ CMOS active pixel type dots
◆ Built-in timing adjustment circuit, H/V driver and serial communication circuit
◆ Input frequency: 74.25 MHz / 37.125 MHz
◆ Number of recommended recording pixels: 1920 (H) × 1080 (V) approx. 2.07M pixel
◆ Readout mode
All-pixel scan mode
720p-HD readout mode
Window cropping mode
Vertical / Horizontal direction-normal / inverted readout mode
◆ Readout rate
Maximum frame rate in Full HD 1080p mode: 60 frame / s
◆ Wide dynamic range (WDR) function
Multiple exposure WDR
Digital overlap WDR
◆ Variable-speed shutter function (resolution 1H units)
◆ 10-bit / 12-bit A/D converter
◆ Conversion gain switching (HCG Mode / LCG Mode)
◆ CDS / PGA function
0 dB to 27 dB: Analog Gain 27 dB (step pitch 0.3 dB)
27.3 dB to 69 dB: Analog Gain 27 dB + Digital Gain 0.3 to 42 dB (step pitch 0.3 dB) ◆Supports I/O switching
Low voltage LVDS (150 m Vp-p) serial (2 ch / 4 ch switching) DDR output
CSI-2 serial data output (2 Lane / 4 Lane, RAW10 / RAW12 output)
◆ Recommended exit pupil distance: –30 mm to –∞
Specification
|
Model No |
SNS-2MP-IMX307-M1.0 |
|
Sensor |
1/2.8’’ SONY IMX307 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
2.9µm x 2.9µm |
|
Image area |
1937(H) x 1097(V) |
|
Compression format |
MJPEG / YUV2/H.264 |
|
Resolution & Frame rate |
1920 x1080 @ 60fps 1280x960 @60fps 1280x720 @ 60fps 800x600 @ 60fps 640x480 @ 60 fps 320x240 @ 60fps |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
52dB |
|
Dynamic range |
72dB |
|
Sensitivity |
7757 mV / lux-sec |
|
Dimension |
Customization |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
