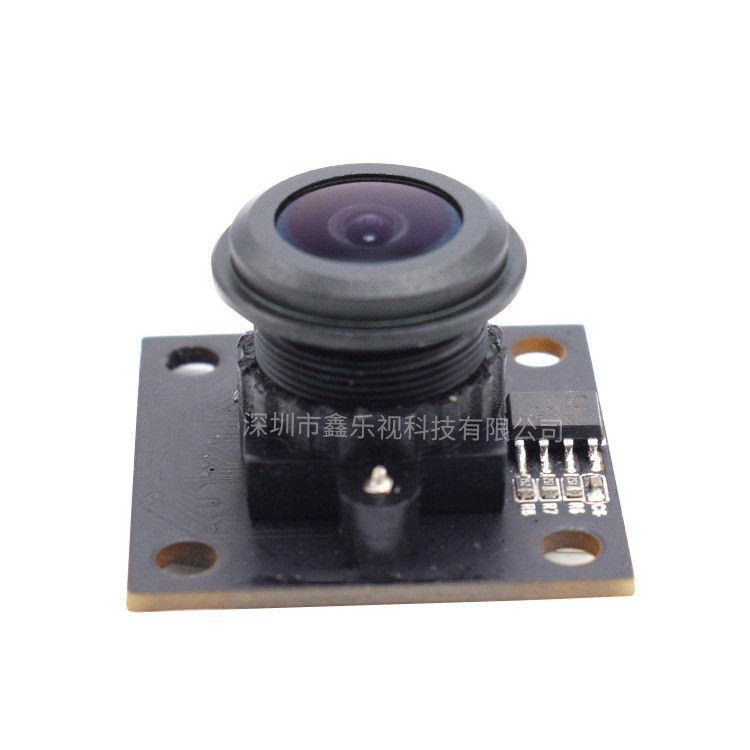

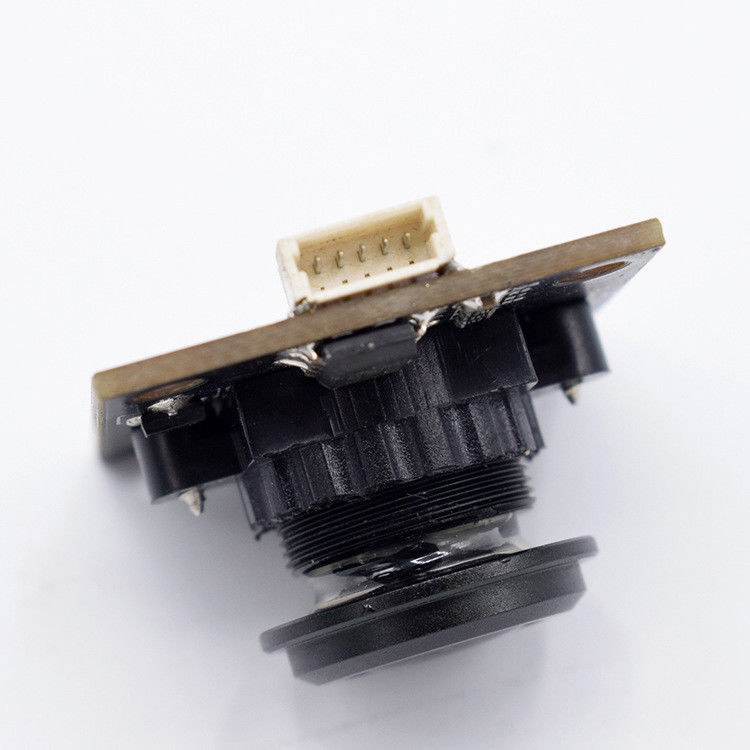

Raspberry Pi Wide Angle Camera Module 25x25mm With Galaxy GC0308
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-USB0308GJ-1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/6.5" Galaxy GC0308 CMOS |
|---|---|---|---|
| Resolution: | 0.3MP HD 648(H)X488(V) | Dimensions: | 25mmx25mm(customizable) |
| Lens FOV: | 150°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Wide Angle |
| High Light: | 0.3MP wide angle camera module,25mm Wide Angle Camera Module,GC0308 usb webcam module |
||
Product Description
Raspberry Pi Wide Angle Camera Module 25x25mm With Galaxy GC0308
150 Degree Wide Angle Coms Fixed Focus Small Size HD Usb Camera Module with Galaxy GC0308
camera module
This is a widely used cheap camera module.It has low consumption and can do with very small size according to your actual needs.The GC0308 features 640V x 480H resolution with 1/6.5-inch optical format,and 4-transistor pixel structure for high image quality and low noise variations. It delivers superior image quality by powerful on-chip design of a 10-bit ADC, and embedded image signal processor.The full scale integration of high-performance and low-power functions makes the GC0308 best fit the design, reduce implementation process, and extend the battery life of cell phones, PDAs, and a wide variety of mobile applications.The on-chip ISP provides a very smooth AE (Auto Exposure) and accurate AWB(Auto White Balance) control.
It provides various data formats, such as Bayer RGB, RGB565, YCbCr 4:2:2. It has a commonly used two-wire serial interface for host to control the operation of the whole sensor.The product is capable of operating at up to 30 frames per second at 24MHZ clock in VGA mode, with complete user control over image quality and data formatting.
Specification
|
Pixel Size |
3.4μm x 3.4μm |
|
Effective Pixels |
HD 648(H)X488(V) |
|
Image Sensor |
1/6.5" |
|
AEC/AWB/AGC |
Supported |
|
Lens View |
FOV150°(Optional),F/N(Optional) |
|
Interface |
USB BUS POWER 5P-1.25mm |
|
Operating Voltage |
DC5V |
|
Working Current |
120mA~220mA |
|
Dimension |
25X25mm |
|
Cable Length |
1m/1.5m |
