Flexible USB 2.0 Binocular Camera Module 720P 1MP NT99141 Cmos Sensor

Flexible USB 2.0 Binocular Camera Module 720P 1MP NT99141 Cmos Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-1MP-NT99141-S1

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/4" Novatek NT99141
Resolution: 1MP 1280(H) X 720(V) Dimensions: 37.3mm*12mm(customizable)
Lens FOV: 100°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: Flexible
High Light:

720P 1MP Binocular Camera Module

,

Flexible Binocular Camera Module

,

720P NT99141 HD Camera Module

Product Description

Flexible USB 2.0 Binocular Camera Module 720P 1MP NT99141 Cmos Sensor

Mini and Flexible 720P USB 2.0 1MP Camera Module with NT99141 Cmos sensor

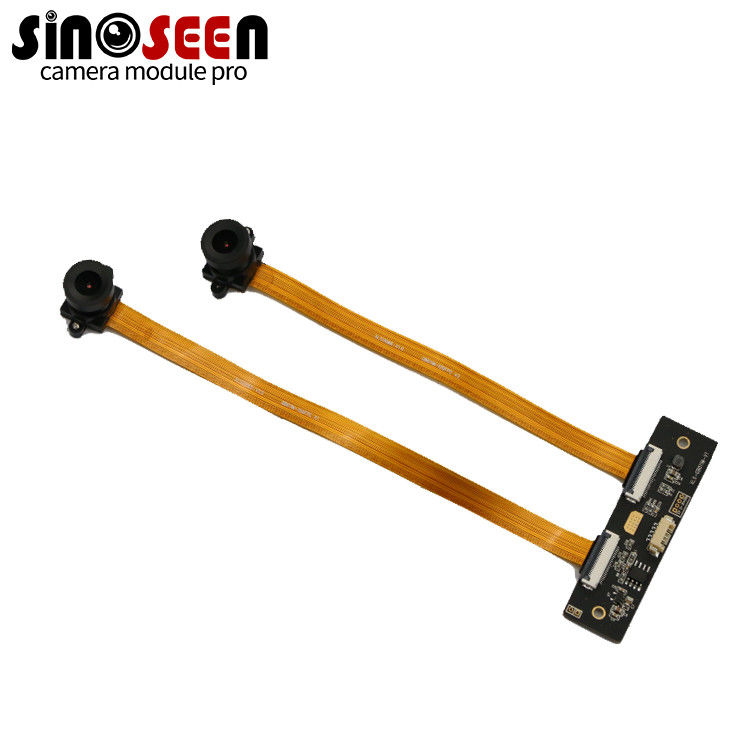

This is our newly developed camera module, using a high-performance Novatek NT99141 CMOS sensor with a resolution of HD 720. Unlike most other camera modules, this module consists of two parts: a rigid part with a chip and a flexible part with a lens, so that it can be installed in a machine or equipment more easily.

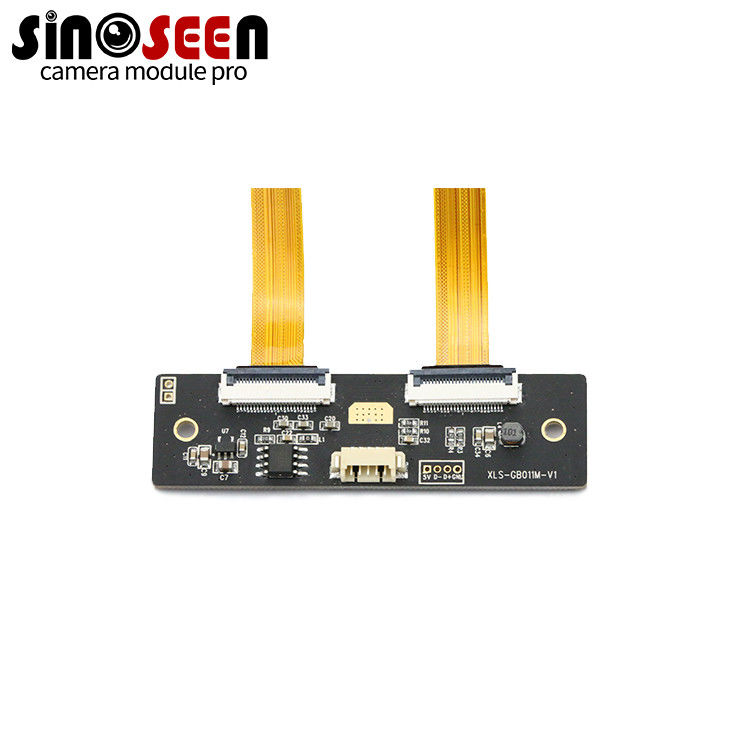

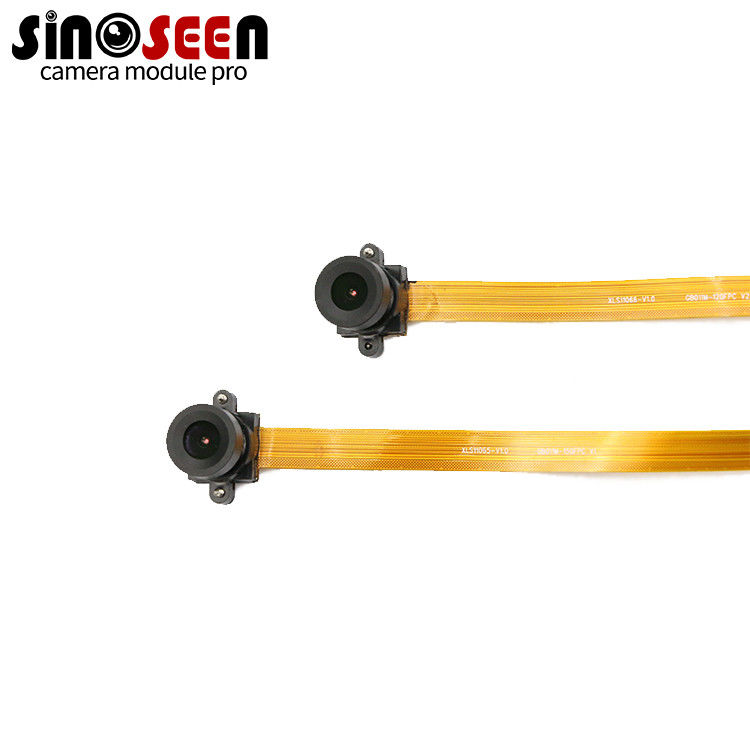

The size of the rigid part is 37.3mm * 12mm, and the length of the flexible cable is 45mm. We can extend or shorten it according to your requirements. We provide a variety of FOV lenses for you to choose from, from 60° to 160°.


This module is widely used in DV, AR, VR, video, AI, wearable devices, Internet of Things, machine vision, computer vision,
Industrial, medical, endoscopy, robotics, vision, etc.





Specification



Model No

SNS-1MP-NT99141-S1

Sensor

1/4’’ Novatek NT99141

Pixel

1 Mega Pixel

Most effective pixels

1280(H) x 720(V)

Pixel Size

3.0µm x 3.0µm

Image area

3852um(H) x 2172um (V)

Compression format

MJPEG / YUV2 (YUYV)

Resolution & Frame rate

See above

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus

ADC Resolution

10 bits

Object distance

10CM-Infinity

Minimum Illumination

0.1 Lux

Interface type

USB2.0 high speed

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

Lens

EFL: 2.3mm



Lens Size: 1/4 inch



H FOV: 100°



Lens Construction: 4G+IR

Audio frequency

Optional

Power supply

USB BUS POWER

Power consumption

DC 5V, 120mA

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Support

Dimension

37.3mm*12mm

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC



Flexible USB 2.0 Binocular Camera Module 720P 1MP NT99141 Cmos Sensor 0

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Camera module customization process





1 According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right SENSER+ lens solution, and then design the product PCB or FPC according to the structural requirements.



2 examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
