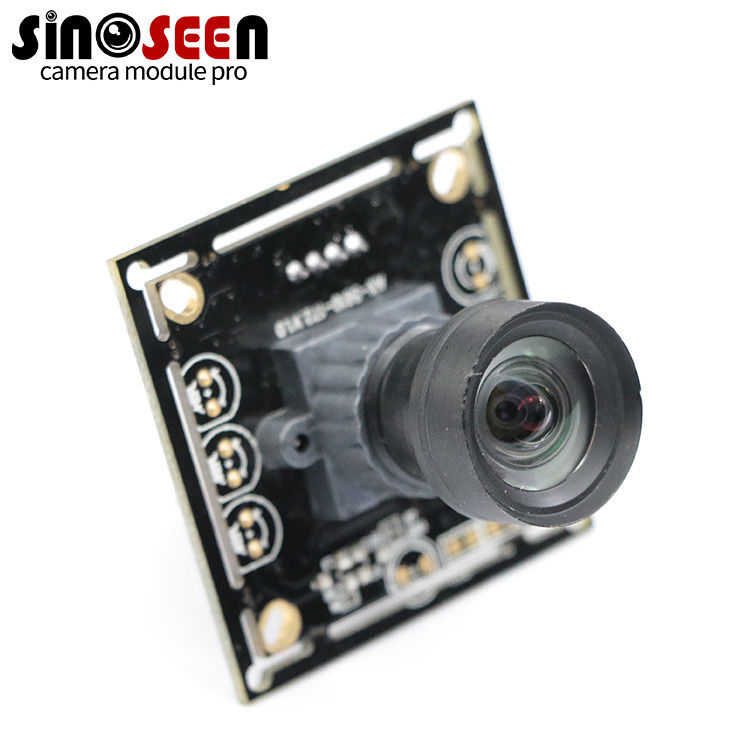

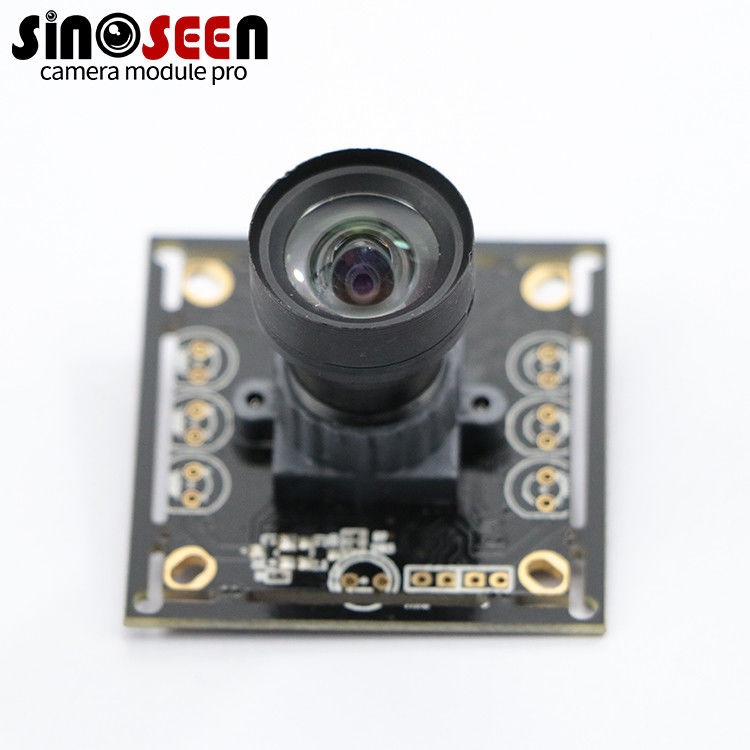

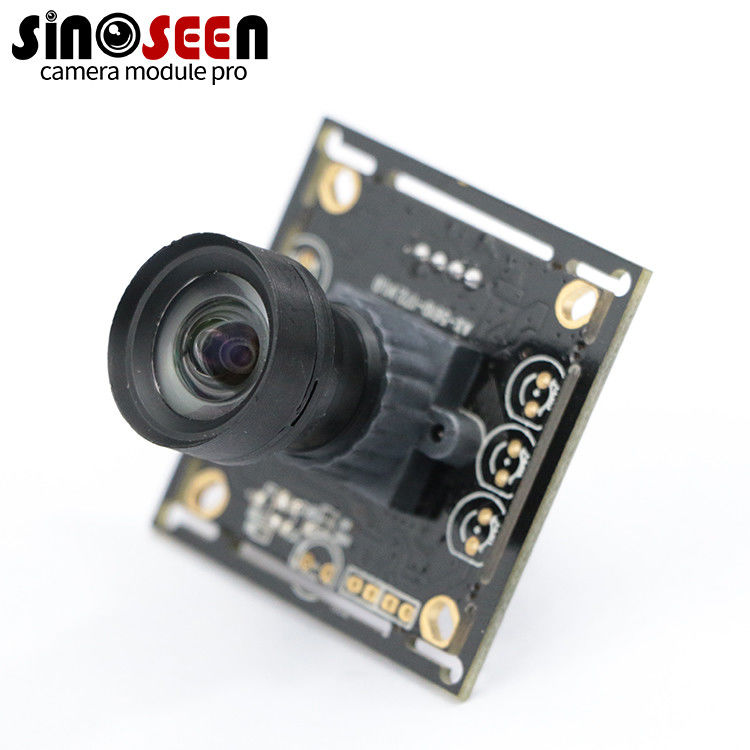

0.3MP Global Shutter Monochrome Camera Module With Omnivision OV7251 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-0.3MP-OV7251-S1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/7.5" Omnivision OV7251 |
|---|---|---|---|
| Resolution: | 0.3MP 640(H) X 480(V) | Dimensions: | 38mmx38mm (compatible With 32mmx32mm) |
| Lens FOV: | 60°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Global Shutter |
| High Light: | 0.3MP Monochrome Camera Module,0.3MP OV7251 Monochrome Camera Module,0.3MP OV7251 Camera Module |
||
Product Description
0.3MP Global Shutter Monochrome Camera Module With Omnivision OV7251 Sensor
0.3MP Monochrome Global Shutter USB Camera Module with Omnivision OV7251 black and white sensor
This is one of our best-selling global shutter camera modules. It has a resolution of 0.3MP (640x480) with Omnivision OV7251 CMOS sensor. The image quality is very high and stable.This module can only support MJPG compression format.
It mainly supports 2 different resolutions and frame rates: 640x480 @ 120fps and 320x240 @ 200fps, but you cannot get them at the same time, so when ordering from us, please tell us which resolution and frame rate you need.
The OV7251 sensor is very small, only 1/7.5 inch, and consumes less power than other similar sensors. It has excellent low light sensitivity, reaching 10.800 mW/(uW.cm-2.sec) at 850nm.
This OV7251 global shutter USB camera modules can be widely used in many high-tech, high-demand applications, such as gesture detection, head and eye tracking, depth and motion detection, machine vision, computer vision, robotics, artificial intelligence, VR, AR, 3D and Wearable devices, Internet of Things, medical imaging, industrial automation, agriculture, sports, etc.
Specification
|
Model No |
SNS-0.3MP-OV7251-S1 |
|
Sensor |
1/7.5’’ Omnivision OV7251 |
|
Pixel |
0.3 Mega Pixel |
|
Most effective pixels |
640(H) x 480(V), 320(H) x 240(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image area |
1968um(H) x 1488um (V) |
|
Compression format |
MJPG |
|
Resolution & Frame rate |
640x480@120fps; 320x240@200fps |
|
Shutter Type |
Global Shutter |
|
CFA (Chroma) |
Mono, Black/White |
|
Focus type |
Fixed focus |
|
S/N ratio |
38dB |
|
Dynamic range |
69.6dB |
|
Sensitivity |
10800mV / lux-sec |
|
Interface type |
USB2.0 high speed |
|
|
Brightness/Contrast/Color saturation/Hue/Definition//White balance |
|
Lens |
Focal length: 3.6mm |
|
|
Lens Size: 1/4 inch |
|
|
FOV: 60° |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 120mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38mm*38mm (customizable with 32mm*32mm) |
|
Storage temperature |
-30°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
