OV9782 Sensor 60FPS Zoom Camera Module Color Image Global Shutter
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-1MP-OV9782-H1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4" Omnivision OV9782 CMOS Sensor |
|---|---|---|---|
| Resolution: | 1MP 1280(H) X 720(V) | Dimensions: | Customizable |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Global Shutter |
| High Light: | 60FPS OV9782 Zoom Camera Module,OV9782 Zoom Camera Module,1MP OV9782 camera module |
||
Product Description
OV9782 Sensor 60FPS Zoom Camera Module Color Image Global Shutter
60FPS Global Shutter Color Image Zoom USB Camera Module With OV9782 Sensor
usb camera module Global Shutter description

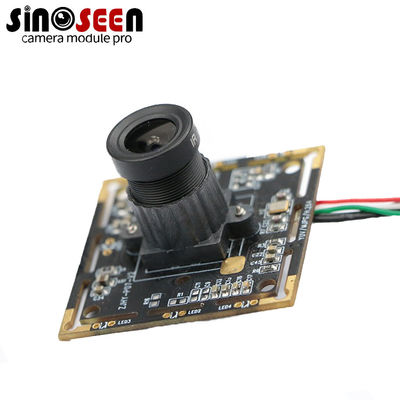

This is one of our most popular global shutter camera modules that can output color images. It has an Omnivision OV9782 CMOS sensor with a resolution of 1MP (1280x800), and the image quality is very high and stable.
OmniVision's OV9782 is a high-speed global shutter image sensor that can bring 1 megapixel resolution for various consumer and industrial computer vision applications, including augmented reality (AR), virtual reality (VR) and UAV to avoid collisions. Bar code scanning and factory automation.
Camera modules can be widely used in many high-tech high-end applications, such as robotics, robotics, machine vision, industrial automation, vision systems, imaging, automobiles, object tracking, factory automation, medical equipment, artificial intelligence, augmented reality (AR), Virtual reality (VR), computer vision, drones, sports, agriculture, barcode scanning and 3d, etc.
Specification
|
Model No |
SNS-1MP-OV9782-H1 |
|
Sensor |
1/4’’ Omnivision OV9782 CMOS sensor |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1280(H) x 720(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image area |
3896µm x 2453µm |
|
Chroma |
COLOR Image |
|
Compression format |
MJPG/YUY2 |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Global shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
38dB |
|
Dynamic range |
68dB |
|
Protocol |
Plug-&-Play (UVC compliant) |
|
Interface type |
USB2.0 high speed |
|
Lens |
Lens Size: 1/4 inch |
|
FOV: 90° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control |
Not supported |
|
Auto White Balance |
Supported |
|
Auto Gain Control |
Not supported |
|
Dimension |
32mm*32mm |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/ |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
