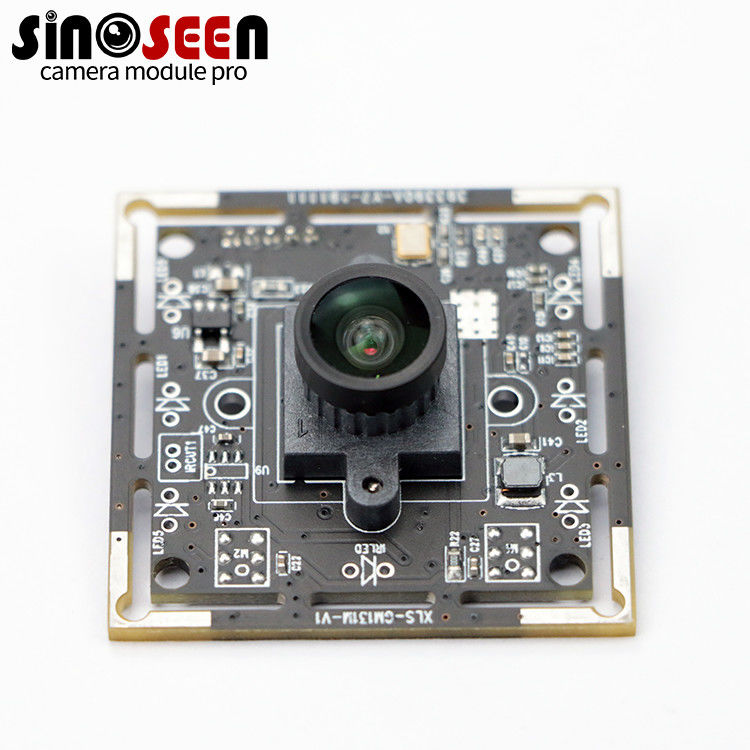

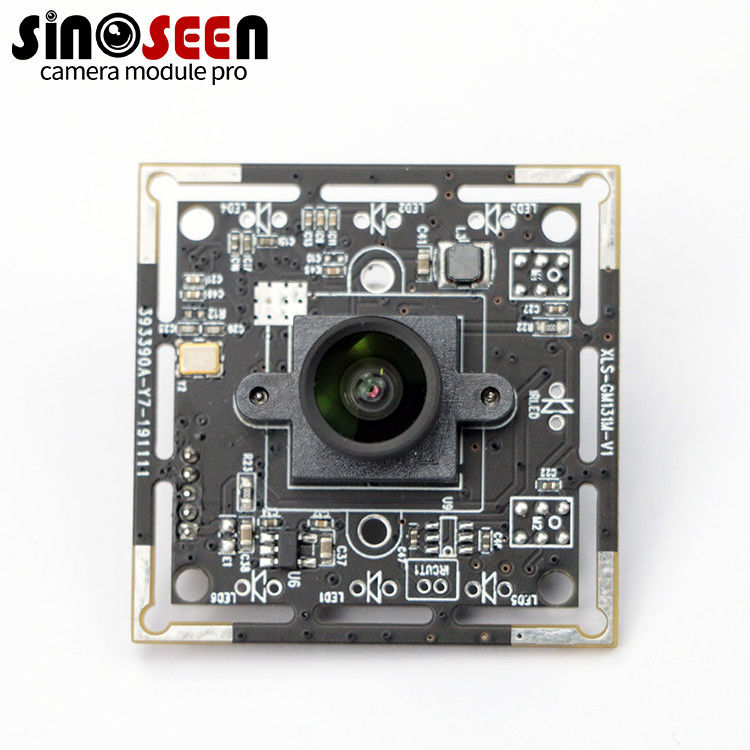

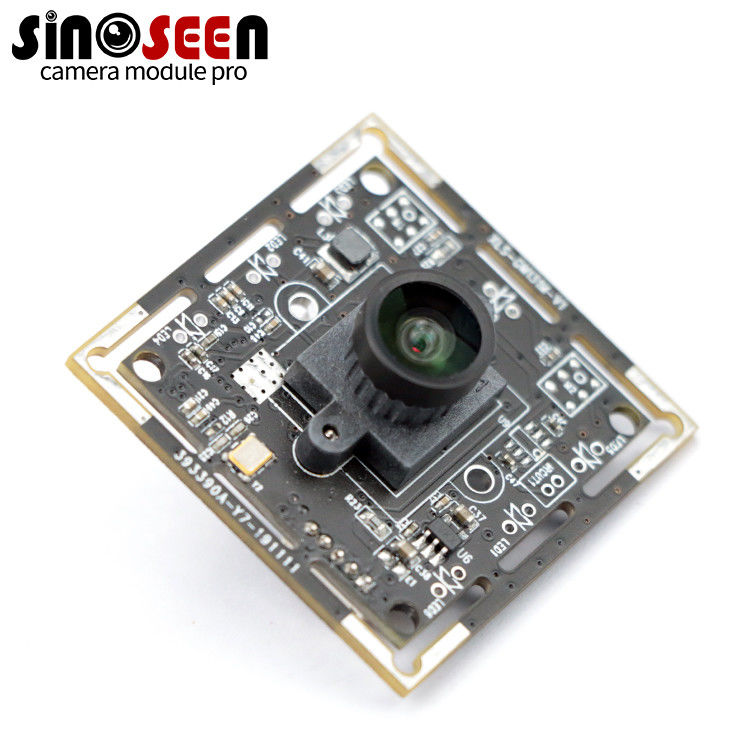

Monochrome Global Shutter Camera Module 2MP Fixed Focus RoHS Approved
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Sinoseen |
Certification: | RoHS |
Model Number: | SNS-2MP-OG02B1B-V1.0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 3 |
---|---|
Price: | negotiable |
Packaging Details: | Tray+Anti-static bag in carton box |
Delivery Time: | 2-3weeks |
Payment Terms: | T/T |
Supply Ability: | 500000 pieces/month |
Detail Information |
|||
Type: | USB Camera Module | Sensor: | 1/2.9" Omnivision OG02B1B |
---|---|---|---|
Resolution: | 2MP (1600*1200) | Dimensions: | 38mmx38mm (compatible With 32mmx32mm) |
Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
Interface: | USB2.0 | Feature: | Global Shutter |
Highlight: | OG02B1B Global Shutter Camera Module,38mm Global Shutter Camera Module,OG02B1B USB camera module |
Product Description
Monochrome Global Shutter Camera Module 2MP Fixed Focus RoHS Approved
Global Shutter Black And White Image 2MP USB Camera Module With Omnivision OG02B1B Sensor
OG02B10 Camera Module 2MP
This is one of our most advanced global shutter USB2.0 camera module with the sensor OG02B1B from Omnivision.Unlike most other global shutter modules that usually have a resolution of 0.3MP or 1MP,this module is 2MP(1600x1200),which is the highest resolution you can get in current market for a global shutter camera module.This sensor is with black and white images and frame rates up to 60fps.If you need color images,there is also a color version called OG02B10 with almost same specification.
This camera module is widely used in many high-tech, high-end consumer and industrial machine vision applications, such as AR/VR, industrial automation, robotics, drones, 3D modeling, imaging, barcode scanning, factory automation, medical care, agriculture, and labor Intelligence (AI), computer vision, etc.
Model No
|
SNS-2MP-OG02B1B-V1.0
|
Sensor
|
1/2.9’’ Omnivision OG02B1B
|
Pixel
|
2 Mega Pixel
|
Most effective pixels
|
1600(H) x 1200(V)
|
Pixel Size
|
3.0µm x 3.0µm
|
Chroma
|
Monochrome |
Compression format
|
MJPG / YUY2
|
Resolution & Frame rate
|
See above
|
Shutter Type
|
Global shutter
|
Focus type
|
Fixed Focus/Manually Adjustable
|
Clock Frequency
|
6 to 27 MHz
|
Chief Ray Angle (CRA)
|
15°
|
Microphone
|
Optional
|
Interface type
|
USB 2.0 high speed
|
Adjustable parameter
|
Brightness/Contrast/Color saturation/Hue/Definition/Gamma
|
Lens
|
Lens Structure: 6G
|
|
Lens Size: 1/2.5 inch
|
|
H FOV: 90°
|
|
Thread Size: M12*P0.5
|
Audio frequency
|
Optional
|
Power supply
|
USB BUS POWER
|
Power consumption
|
DC 5V, <200mA
|
Main chip
|
DSP/SENSOR/FLASH
|
Auto Exposure Control (AEC)
|
Support
|
Auto White Balance (AEB)
|
Support
|
Auto Gain Control (AGC)
|
Support
|
Dimension
|
38mmx38mm (compatible with 32mmx32mm)
|
Storage temperature
|
-20°C to 75°C
|
Operating temperature
|
0°C to 60°C
|
USB cable length
|
Default
|
Support OS
|
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
