Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-1.2MP-AR0135-V1.0

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/3" ON-Semiconductor AR0135
Resolution: 1.2MP 1280 (H) × 960 (V) Dimensions: 38mmx38mm (compatible With 32mmx32mm)
Lens FOV: 90°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: Global Shutter
High Light:

3.6MM Global Shutter Camera Module

,

1.2MP AR0135 Global Shutter Camera Module

,

AR0135 Camera module

Product Description

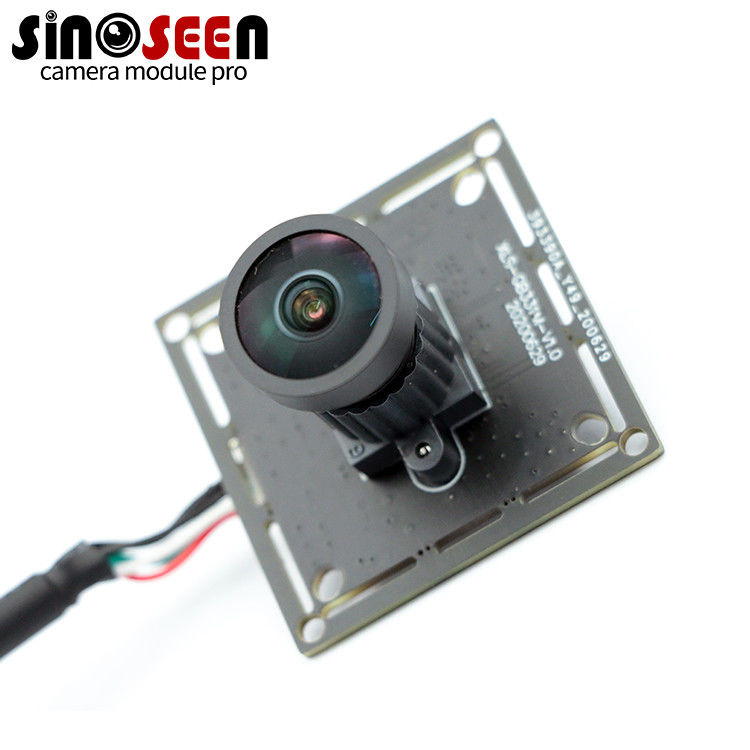

Black White Image 1.2MP Global Shutter Camera Module AR0135 Sensor

Global Shutter Black and White Image 1.2MP USB Camera Module with ON-Semi AR0135 sensor



Global Shutter Camera Module

This is one of our most popular global exposure camera modules. It uses the global shutter technology of ON Semiconductor AR0135 CMOS sensor. It is 1.2MP (1280×960@30fps) and black and white images. It only needs black and white images. With this global shutter sensor, it can make the camera "freeze" fast-moving scene data and ensure effective synchronization with the pulsed light source.

The current module size is 38mm * 38mm (compatible with 32mm * 32mm), we can change the size and shape of the module according to your requirements; we can change the lens according to your requirements, the field of view is 20°, 40° to 90°, 120° And 180°, 220°, etc. In addition, we can also print your company logo and name on the PCB.

This module can be widely used in many applications, such as drones, robotics, automobiles, barcode scanners, 3D scanning, position tracking, iris scanning, augmented reality (AR), virtual reality (VR), machine vision, computer vision, Biometrics, gesture control, etc.



Specification

Model No

SNS-1.2MP-AR0135-V1.0

Sensor

1/3’’ ON-Semiconductor AR0135 CMOS

Pixel

1.2 Mega Pixel

Most effective pixels

1280 (H) × 960 (V)

Pixel Size

3.75µm x 3.75µm

Shutter Type

Global Shutter

Compression format

MJPG / YUY2

Resolution & Frame rate

See above

Color filter array

Monochrome, Black/White Image

Focus type

Fixed Focus/Manual adjustable

S/N ratio

40.7dB

Dynamic range

71.1dB

Responsivity

85 ke-/ lux-sec

Interface type

USB2.0

Adjustable parameter

Brightness/Contrast/Saturation/Hue/Definition/Gamma/White balance/Exposure

Lens

Focal length: 3.6MM



Lens Size: 1/3 inch



FOV: 90°



Thread Size: M12*P0.5

Audio frequency

Optional

Power supply

USB BUS POWER

Power consumption

DC 5V, 200mA

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control

Support

Auto Gain Control

Support

Dimension

38MM×38MM (compatible with 32MM×32MM)

Storage temperature

-30°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC



Black White Image 1.2MP Global Shutter Camera Module AR0135 Sensor 0Black White Image 1.2MP Global Shutter Camera Module AR0135 Sensor 1

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Current avaliable global shutter USB camera module





Omnivision                           OV7251           0.3MP             Monochrome(black and white)



Omnivision                           OV9281              1MP             Monochrome(black and white)



ON Semiconductor               AR0144              1MP             Monochrome(black and white) or RGB color



Omnivision                           OG02B1B           2MP             Monochrome(black and white)



Omnivision                           OG02B10            2MP             RGB color
