Metal Housing Dual Lens Robot Camera Module With Omnivision OV7251 Sensor

Metal Housing Dual Lens Robot Camera Module With Omnivision OV7251 Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-0.3MP-DualOV7251

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/7.5" Omnivision OV7251
Resolution: 0.3mp 640(H) X 480(V) Dimensions: Customizable
Lens FOV: 60°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: Dual Lens
High Light:

38dB Dual Lens Robot Camera Module

,

0.3mp OV7251 Robot Camera Module

,

0.3mp OV7251 wifi camera module

Product Description

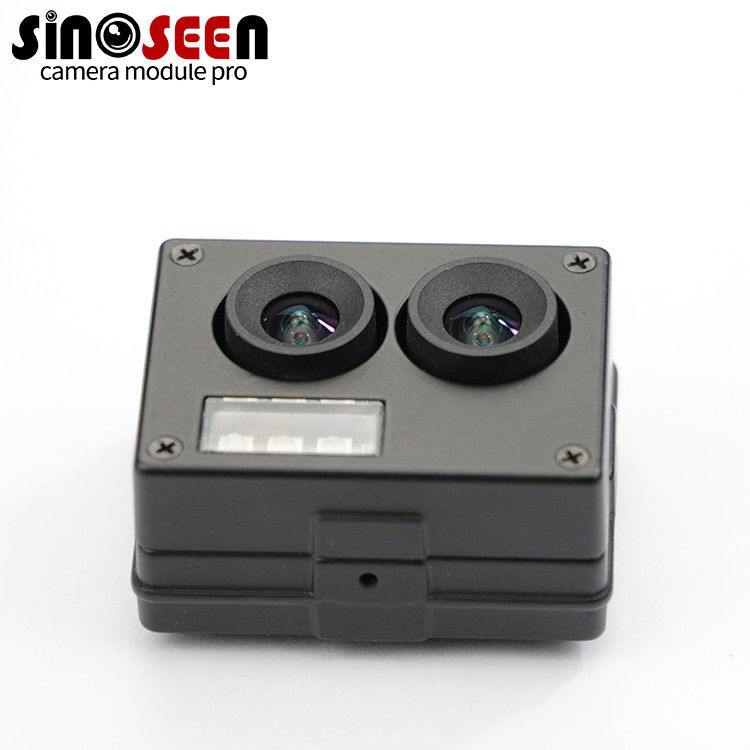

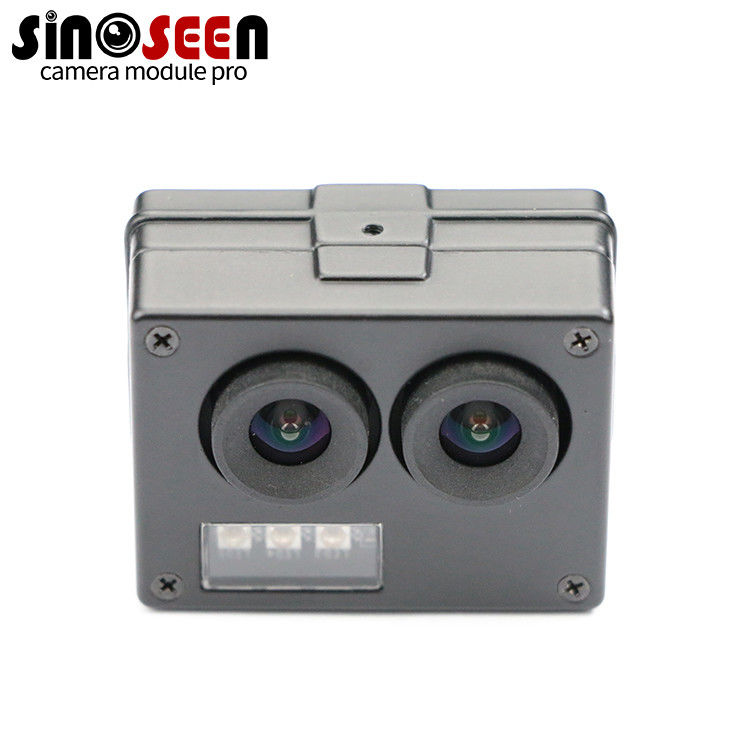

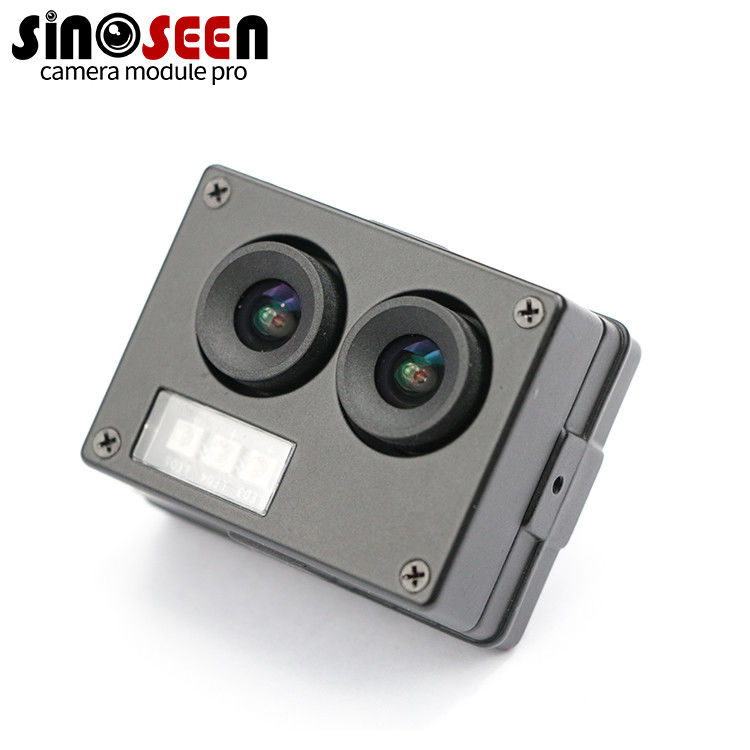

Metal Housing Dual Lens Robot Camera Module With Omnivision OV7251 Sensor

0.3MP Dual Lens Global Shutter Usb Camera Module In Metal Housing With Omnivision OV7251 Sensor



Dual Lens Camera Module

This is our newly developed dual-lens global shutter camera module with LEDs in a metal housing, which is different from most other dual-lens camera modules that with electronic shutter technology, and this module is a rare global shutter technology on the market. Equipped with Omnivision OV7251 CMOS sensor with a resolution of 0.3MP (640x480), the image quality is very high and stable.
The module supports 2 compression formats: MJPG and YUY2, and can only generate black and white images!
The OV7251 sensor is very small, only 1/7.5 inch, and consumes less power than other similar sensors. It has excellent low light sensitivity, up to 10.800 mW/(uW.cm-2.sec) at 850nm.
This dual lens camera module can be widely used in many high-tech, high-demand applications, such as gesture detection, head and eye tracking, depth and motion detection, machine vision, computer vision, robotics, artificial intelligence, VR, AR, 3D and Wearable devices, LOT, medical imaging, industrial automation, agriculture, sports, etc.





Specification

Model No

SNS-0.3MP-DualOV7251

Sensor

1/7.5’’ Omnivision OV7251

Pixel

0.3 Mega Pixel

Most effective pixels

640(H) x 480(V), 320(H) x 240(V)

Pixel Size

3.0µm x 3.0µm

Image area

1968um(H) x 1488um (V)

Compression format

MJPG/YUY2

Resolution & Frame rate

See above

Shutter Type

Global Shutter

CFA (Chroma)

Mono, Black/White

Focus type

Fixed focus

S/N ratio

38dB

Dynamic range

69.6dB

Sensitivity

10800mV / lux-sec

Interface type

USB2.0 high speed

Adjustable parameter

Brightness/Color saturation/Definition/Gain

Lens

Focal length: 3.6mm



Lens Size: 1/4 inch



FOV: 60°



Thread Size: M12*P0.5

Audio frequency

Optional

Power supply

USB BUS POWER

Power consumption

DC 5V, 200mW

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

NOT Support

Auto Gain Control (AGC)

Support

Dimension

93MM*32MM

Storage temperature

-30°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
