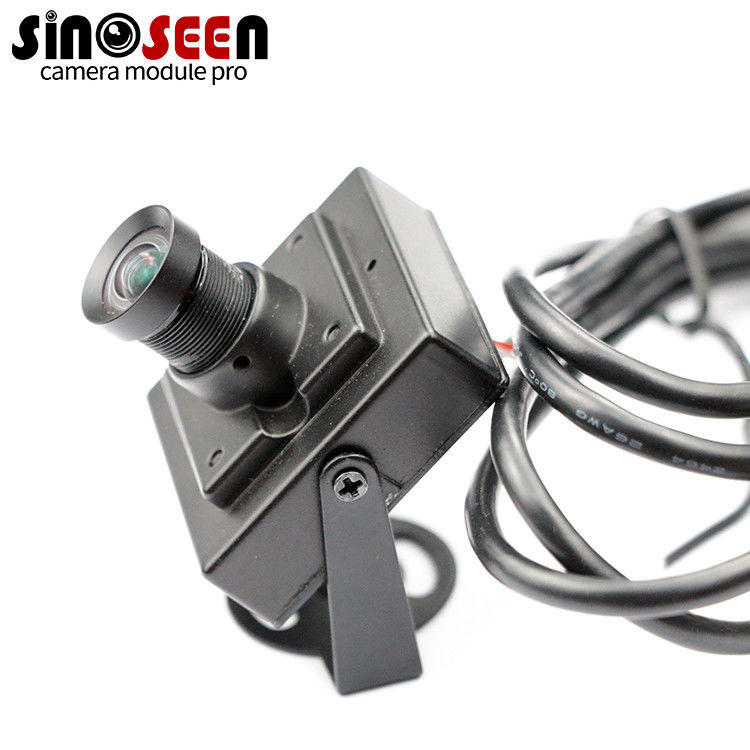

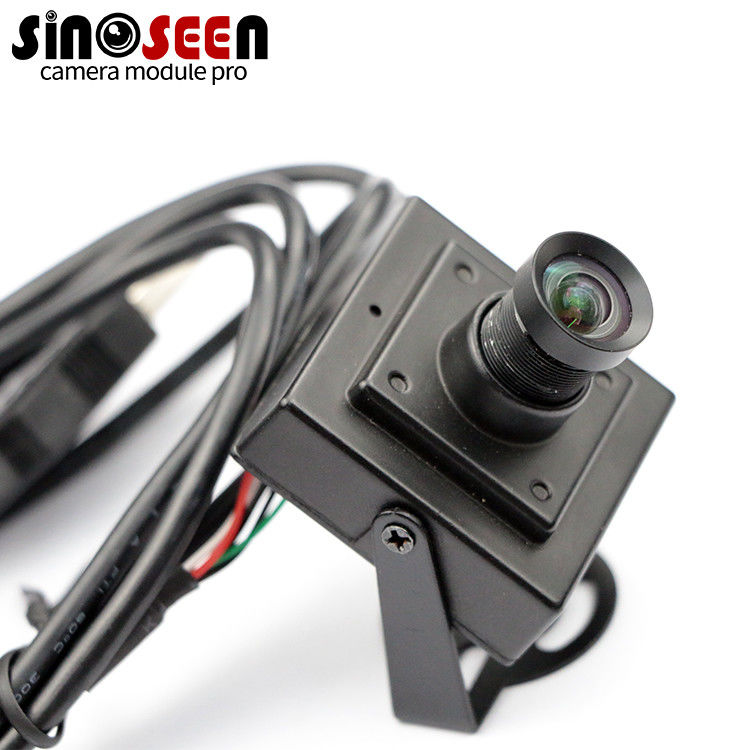

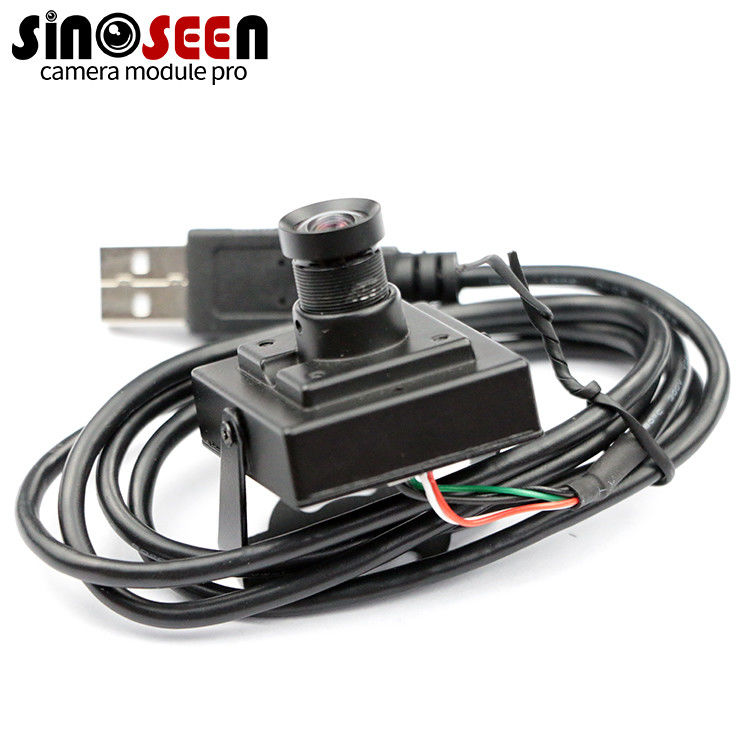

OEM 1MP 1080P Full HD USB Camera Module with Metal Housing for Security Monitoring
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-1MP-H62-H1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4" SOI JX-H62 |
|---|---|---|---|
| Resolution: | 1MP 1296 (H) X 732 (V) | Dimensions: | 38mmx38mm (customizable) |
| Lens FOV: | 130° | Focus Type: | Fixed |
| Interface: | USB2.0 | Feature: | With Metal Housing |
| Highlight: | 38mm Full HD Camera Module,38x38mm Full HD Camera Module,38mm HD Camera Module |
||
Product Description
720P 1MP 1080P Full HD Camera Module UVC Compliant Drive With Metal Housing
OEM HD 720P 1MP 1080P 2MP CMOS USB Camera Modules UVC Compliant Drive Free Plug & Play With Housing
1080p Full HD Camera Module
Specification:2mp Camera Modules
|
Model No
|
SNS-1MP-H62-H1
|
|
Sensor
|
1/4’’ SOI JX-H62
|
|
Pixel
|
1 Mega Pixel
|
|
Most effective pixels
|
1296 (H) x 732 (V)
|
|
Pixel Size
|
3.0µm x 3.0µm
|
|
Resolution
|
1280x720; 640x480; 320x240;
|
|
Frame Rate
|
30fps
|
|
Compression format
|
MJPEG / YUV2 (YUYV)
|
|
Shutter Type
|
Electronic rolling shutter
|
|
Sensitivity
|
4300 mV/lux-sec
|
|
Focus type
|
Fixed focus/Manually adjustable
|
|
S/N ratio
|
37dB
|
|
Dynamic range
|
72dB
|
|
Interface type
|
USB 2.0
|
|
Adjustable parameter
|
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|
Lens
|
Focal length: 1.7mm
|
|
Lens size: 1/2.5’’
|
|
|
FOV: 130°
|
|
|
Thread size: M12*P0.5
|
|
|
Power consumption
|
DC5V, 100mA
|
|
Main chip
|
DSP/SENSOR/FLASH
|
|
Auto Exposure Control
|
Support
|
|
Auto White Balance (AEB)
|
Support
|
|
Auto Gain Control (AGC)
|
Support
|
|
Dimension
|
35mm*35mm
|
|
Operating temperature
|
-30°C to 85°C
|
|
USB cable length
|
Default
|
|
Support OS
|
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
