4MP GC4653 Security Camera Module WDR Anti Glare USB Camera Module

4MP GC4653 Security Camera Module WDR Anti Glare USB Camera Module

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-DZ1024-V1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 4mp Camera Module Sensor: 1/3'' 4Mega CMOS
Dimensions: (customizable) Focus Type: Fixed Focus
Interface: USB2.0 Feature: HD
High Light:

GC4653 Security Camera Module

,

4MP Security Camera Module

,

Antiglare USB Camera Module

Product Description

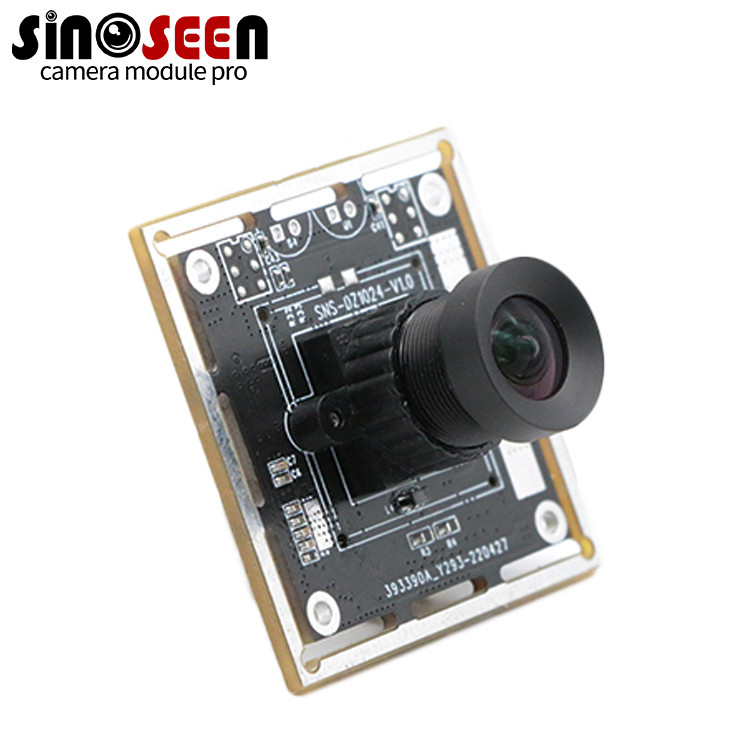

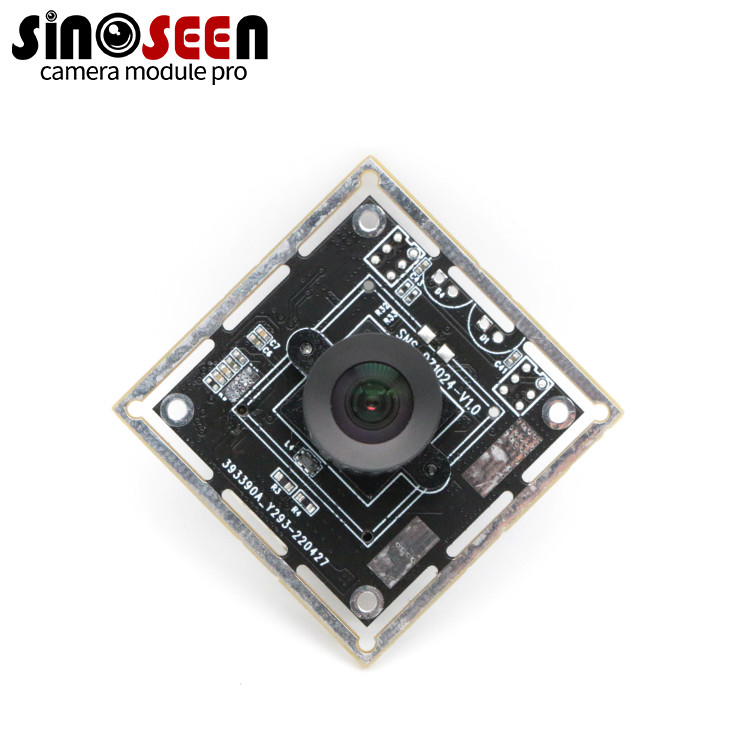

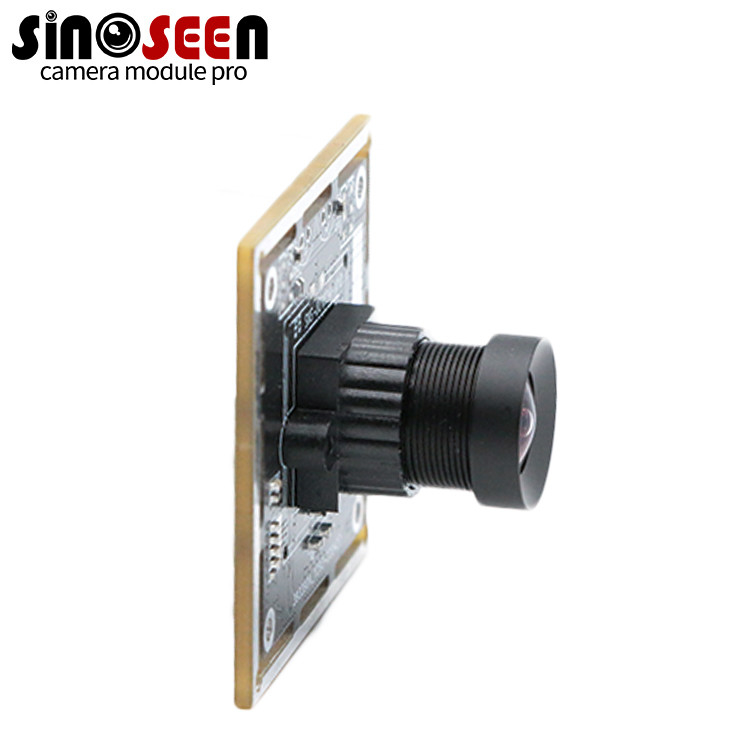

2K 4MP GC4653 Camera Module 1080P WDR Anti-Glare USB Camera Module for Security Camera​





Camera Module WDR

This is a brand new 4MP high-definition camera module, using GC4653 sensor, the frame rate reaches 30fps, and the shutter type is electronic rolling shutter. It is a high-quality camera application for security camera products, digital camera products and mobile phones. The camera can also be used for video surveillance, personnel identification, support for WIFI, microphone, speaker, IRCUT, etc.
If you need to customize your own module, we can customize all parameters such as size, lens angle and so on according to your requirements



Specification
Model No SNS-SZ1024-V1
Sensor 1/3’’4Mega Cmos
Pixel 4 Mega Pixel
Compression format YUYV/MJPEG
Resolution & Frame rate See above
Shutter Type Electronic rolling shutter
Focus type Fixed focus
Interface type USB2.0 high speed
Adjustable parameter Brightness/Contrast/Color saturation/Hue
Definition/White balance/Exposure
Power supply USB BUS POWER
Main chip DSP/SENSOR/FLASH
Auto Exposure Control Support
Auto White Balance Support
Auto Gain Control Support
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC





4MP GC4653 Security Camera Module WDR Anti Glare USB Camera Module 04MP GC4653 Security Camera Module WDR Anti Glare USB Camera Module 1



4MP GC4653 Security Camera Module WDR Anti Glare USB Camera Module 2

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Current available USB solution



0.3MP

Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675

Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)

Global shutter:OV7251 (1/7.5”,B/W)

High frame rate:200FPS SC031GS(1/6”,B/W)

Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)



1MP

Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760

Small size for endoscope:OV9734 GC1009 HM1091

Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)

Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)



2MP

Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)

1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237

1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)

1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310

1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307

1080P-WDR (30FPS): AR0230 AR0331(300W)

1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290

1080P big size: IMX385

1080P global shutter: OG02B10(color) OG02B1B(B/W)



5MP

500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650

FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)



8MP

800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390

8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)



13MP-16MP

IMX214(13M) IMX258(13M) IMMX298(16M)



USB3.0

IMX335 OV5648 IMX179 IMX307 PS5268



H264

GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
