0.3MP FOV Small Camera Module GC0329 Sensor For Education Reading Pen

0.3MP FOV Small Camera Module GC0329 Sensor For Education Reading Pen

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-DZ1803M-V1

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/9" GalaxyCore GC0329
Resolution: 0.3MP HD 648(H)X488(V) Dimensions: Customizable
Lens FOV: 25°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: Small FOV
High Light:

0.3MP 30fps Small Camera Module

,

RoHS 0.3MP Small Camera Module

,

FOV miniature camera module

Product Description

0.3MP FOV Small Camera Module GC0329 Sensor For Education Reading Pen

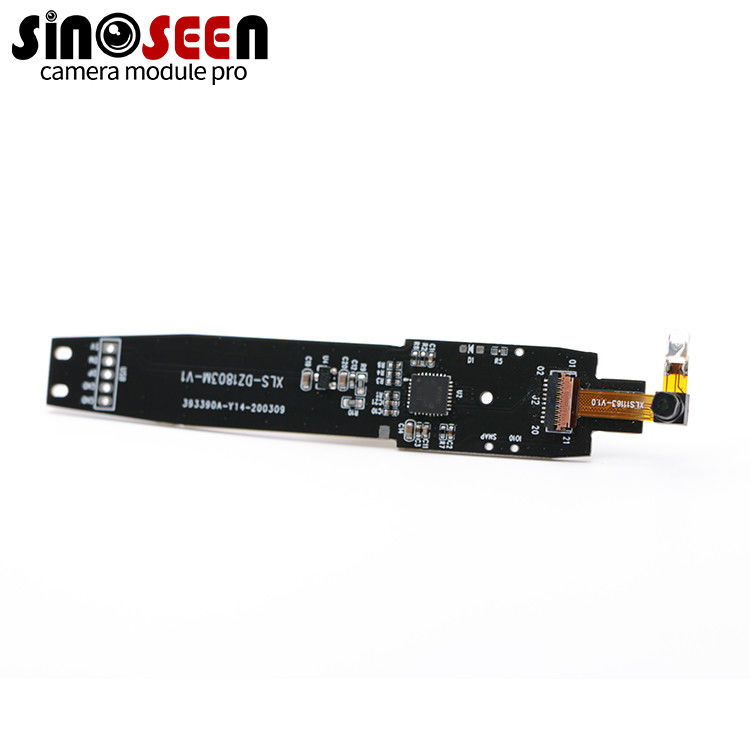

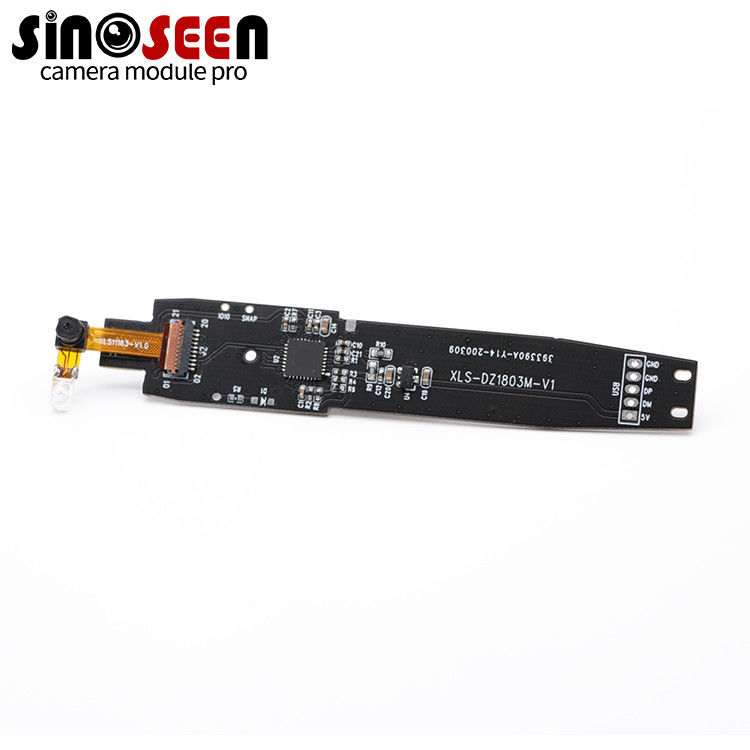

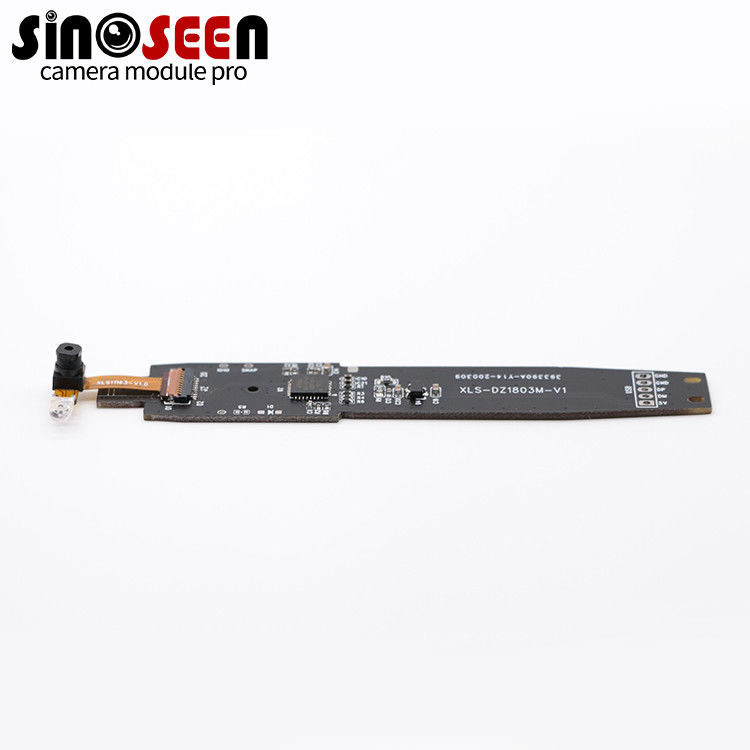

0.3MP Small FOV Flexible PCB USB Camera Module With GalaxyCore GC0329 For Education Reading Pen


Camera Module

This is a 0.3MP USB camera module customized by one of our customers for his newly developed educational reading pen. The chip uses GalaxyCore's GC0329, which performs very well in many low-pixel chips. Based on the customer's powerful software algorithm, this camera can easily distinguish the scanned text and explain the meaning of the text, which has a very prominent advantage in the early childhood education industry.

If you have an excellent algorithm team, you also want to develop a new product and win the market by customizing the camera. Welcome to consult us at any time, we will give you the most professional advice on the camera.





Specification

Module No

SNS-DZ1803M-V1

Pixel Size

3.0μm x 3.0μm

Effective Pixels

HD 648(H)X488(V)

Video output

YUV2 MJPG

Active Array Size Video Rate

640x480 @30 fps 320x240 @ 30fps 240x180@ 30fps

Image Sensor

1/9" GC0329

SNR max

TBDdB

Dynamic range

TBDdB

OTG

USB2.0 OTG

AEC

Support

AEB

Support

AGC

Support

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure

Lens view

FOV25°(optional),F/N(optional)

Interface

USB BUS POWER 5P-1.25mm

Operating Voltage

DC5V

Operating Current

MAX120MMA

Operating temperature

0~60℃

Storage temperature

-20~70℃

Cable length

Defualt

OS

WinXP/Vista/Win7/Win8

Linux with UVC(above linux-2.6.26)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC

0.3MP FOV Small Camera Module GC0329 Sensor For Education Reading Pen 00.3MP FOV Small Camera Module GC0329 Sensor For Education Reading Pen 1



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Current available USB solution



0.3MP

Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675

Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)

Global shutter:OV7251 (1/7.5”,B/W)

High frame rate:200FPS SC031GS(1/6”,B/W)

Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)



1MP

Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760

Small size for endoscope:OV9734 GC1009 HM1091

Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)

Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)



2MP

Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)

1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237

1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)

1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310

1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307

1080P-WDR (30FPS): AR0230 AR0331(300W)

1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290

1080P big size: IMX385

1080P global shutter: OG02B10(color) OG02B1B(B/W)



5MP

500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650

FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)



8MP

800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390

8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)



13MP-16MP

IMX214(13M) IMX258(13M) IMMX298(16M)



USB3.0

IMX335 OV5648 IMX179 IMX307 PS5268



H264

GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
