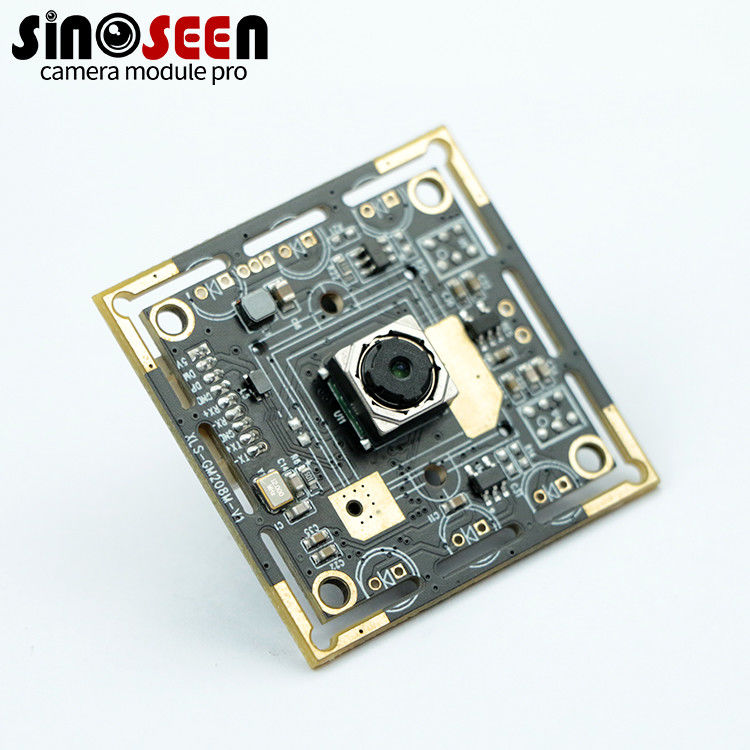

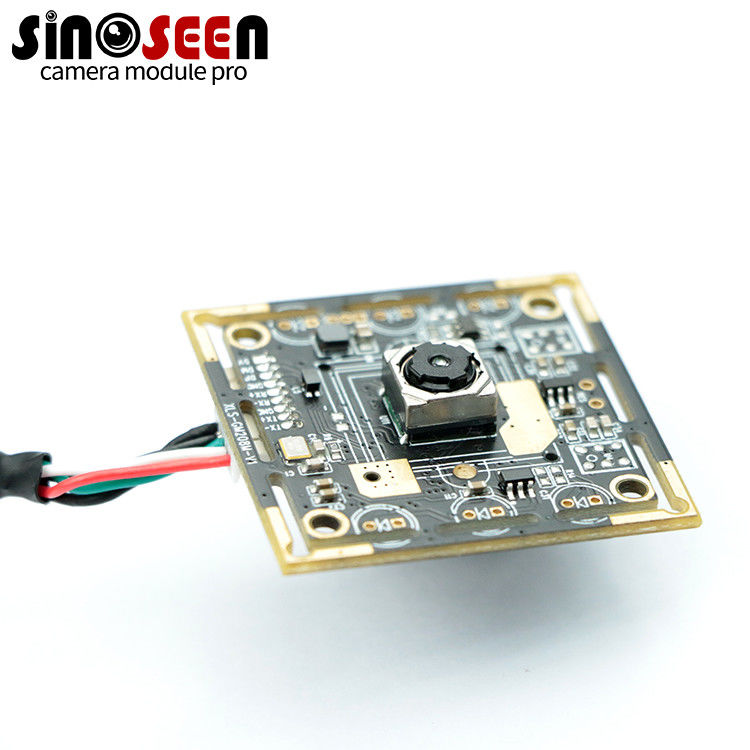

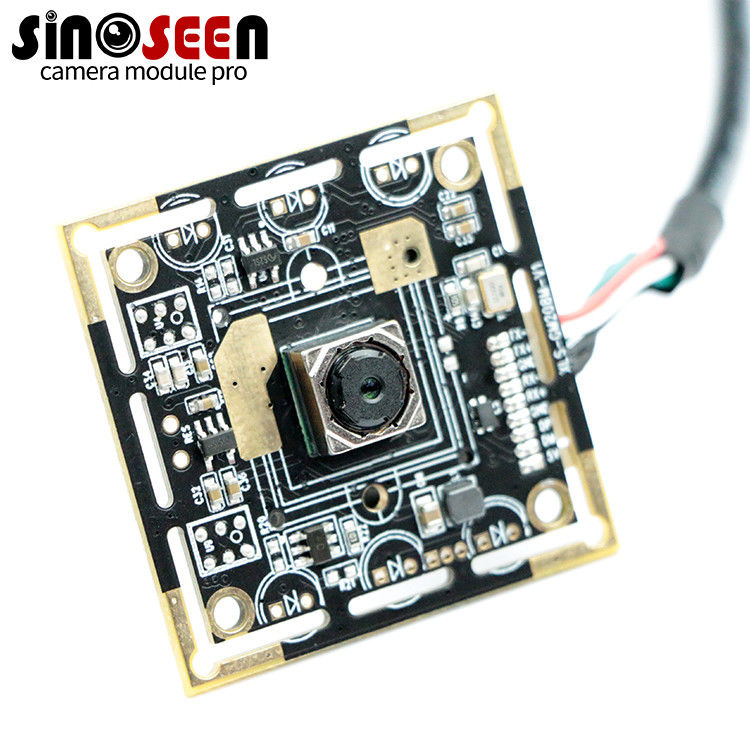

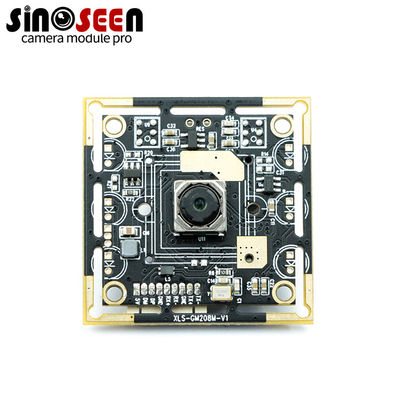

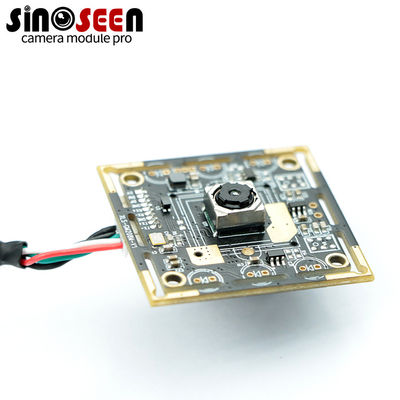

Auto Focus HD Drive CMOS Camera Module 8MP USB 3.0 38x38mm Customizable
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM028M-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/3.2" SONY IMX179 |
|---|---|---|---|
| Resolution: | 8MP 3264(H) X 2448(V) | Dimensions: | 38mmx38mm (customizable) |
| Lens FOV: | 90°(optional) | Focus Type: | Auto Focus |
| Interface: | USB3.0/USB2.0 | Feature: | 4K |
| Highlight: | 8MP 2FPS CMOS Camera Module,38mm CMOS Camera Module,8MP 4k camera module |
||
Product Description
Auto Focus HD Drive CMOS Camera Module 8MP USB 3.0 38x38mm Customizable
8MP Auto Focus 4k Usb3.0 Camera Module With Sony IMX179 Sensor
Camera Module 8MP
This is our best-selling 4k camera module, which uses SONY IMX179 chip. IMX179 is a very good 8MP 4K CMOS sensor, with ultra-high-definition picture quality and stable image output. At present, it uses an autofocus lens and a USB3.0 interface. You can also customize it to be fixed focus lens and USB2.0 interface according to your actual needs.
If your space is limited, we can also customize the size of the PCB according to your requirements. We will evaluate how small it can be according to your other requirements.
It supports below frame rates:
MPEG
3264x2448@15fps； 2592x1944@15fps； 1920x1080@30fps； 1600x1200@30fps； 1280x720@30fps； 960x540@30fps； 848x480@30fps； 640x480@30fps； 640x360@30fps； 320x240@30fps；
YUYV2
3264x2448@2fps； 2592x1944@2fps； 1920x1080@5fps； 640x480@30fps； 320x240@30fps；
Specification
Model No | SNS-GM028M-V1.0 |
Sensor | 1/3.2’’ IMX179 |
Pixel | 8 Mega Pixel |
Most effective pixels | 3264(H) x 2448(V) |
Pixel Size | 1.4µm x 1.4µm |
Compression format | MJPG / YUY2 |
Resolution | see above |
Frame rate | see above |
Shutter Type | Electronic rolling shutter |
Focus type | Auto/Fixed focus |
S/N ratio | 36dB |
Dynamic range | 60dB |
Interface type | USB 3.0/USB2.0 |
Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure |
Lens | Focal length: 3.6mm |
Lens Size: 1/3 inch | |
FOV: 90° (Optional) | |
Thread Size: M12*P0.5 | |
Audio frequency | Support |
microphone | Built-in |
Power supply | USB BUS POWER |
Power consumption | DC 5V, 200mA |
Main chip | DSP/SENSOR/FLASH |
Auto Exposure Control (AEC) | Support |
Auto White Balance (AEB) | Support |
Auto Gain Control (AGC) | Not Supported |
Dimension | 38MM x 38MM (32MM x 32MM) |
Storage temperature | -20°C to 70°C |
Operating temperature | 0°C to 60°C |
USB cable length | Default |
Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
