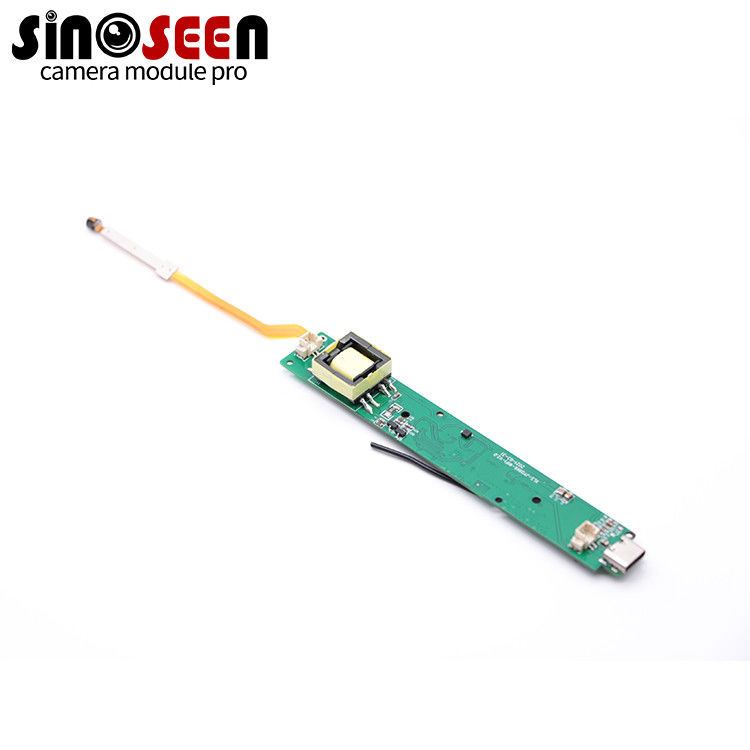

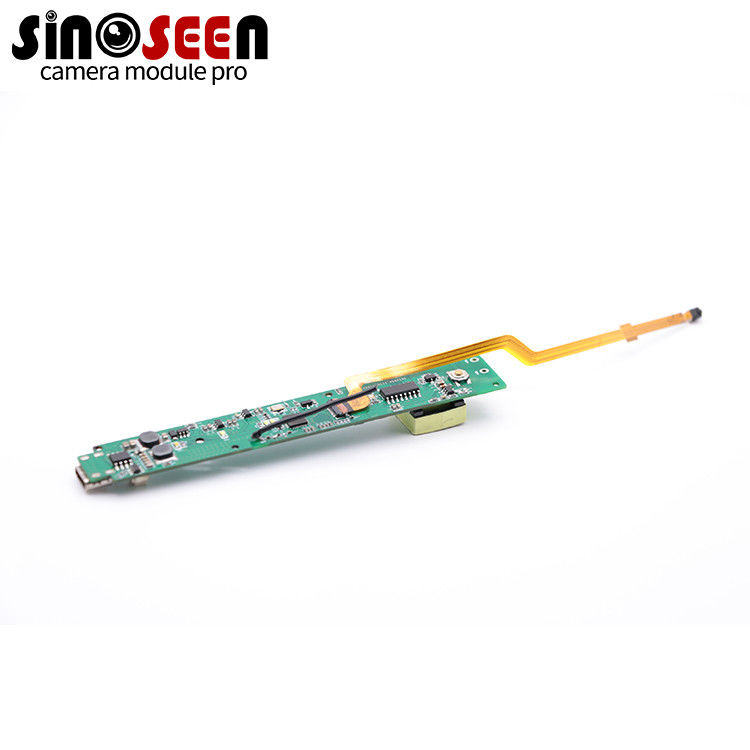

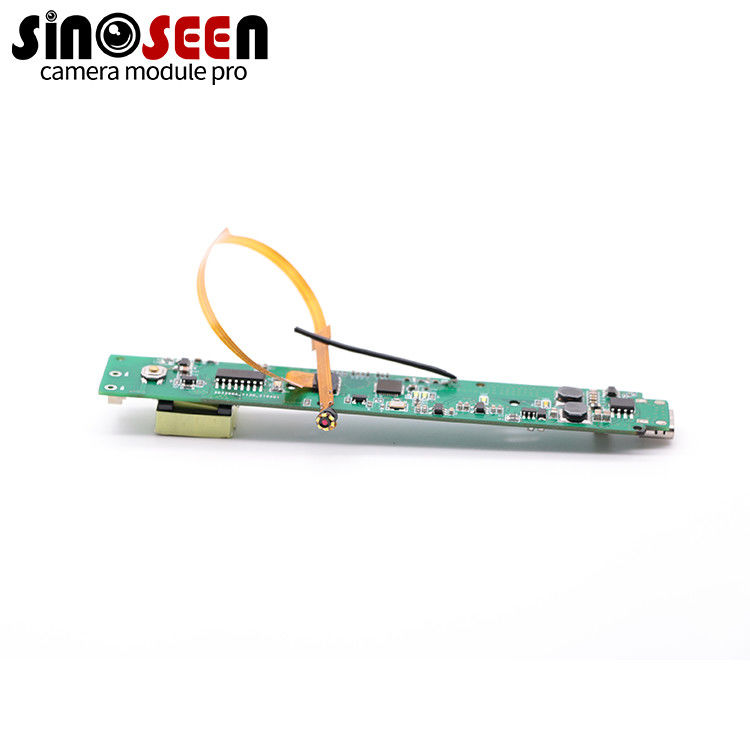

Fixed Focus Endoscopic OEM Camera Modules 30FPS With Mainboard
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-0.3MP-GC0312-S2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | 1/10" GalaxyCore GC0312 |
|---|---|---|---|
| Resolution: | 0.3MP 640(H) X 480(V) | Dimensions: | Customizable |
| Lens FOV: | 50°(optional) | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | Endoscope Camera Module |
| Highlight: | 0.3MP Endoscopic OEM Camera Modules,30FPS 0.3MP OEM Camera Modules,0.3MP 30FPS OEM camera module |
||
Product Description
Fixed Focus Endoscopic OEM Camera Modules 30FPS With Mainboard
OEM Visual Dental Cleaner MIPI Endoscopic Camera Module Solution With Mainboard
Endoscopic OEM Camera Modules
This is an OEM visual dental cleaner MIPI endoscopic camera module solution with GC0312 sensor from GalaxyCore. Because the distance is very close and it is used to photograph the dirt on the teeth, so there is no high requirement on the pixels. Since the light in the oral cavity is not very good, we also installed 6 LED lights around the camera to fill the light. In addition, the distance between the surface of the tooth being photographed and the camera is relatively close, so we used a lens with a very good depth of field.
If you have any newly developed products that need to use the camera, please consult. We have participated in the design of camera modules for thousands of products and have extensive experience covering various applications in various fields. Can provide you with good suggestions on structure and function.
| Module No | SNS-0.3MP-GC0312-S2 |
| Pixel Size | 2.25μm x 2.25μm |
| Effective Pixels | 0.3MP 640(H) x 480(V) |
| Video output | Raw Bayer10bit/8bit |
| Active Array Size Video Rate | 30FPS |
| Image Sensor | 1/10" |
| Sensor Type | GalaxyCore GC0312 |
| Lens view | FOV50°(optional),F/N(optional) |
| TV Distortion | <1% |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Operating voltage | AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
| Operating temperature | -20～70℃ |
| Storage temperature | 0～50℃ |
| Dimensions | Customizable |
