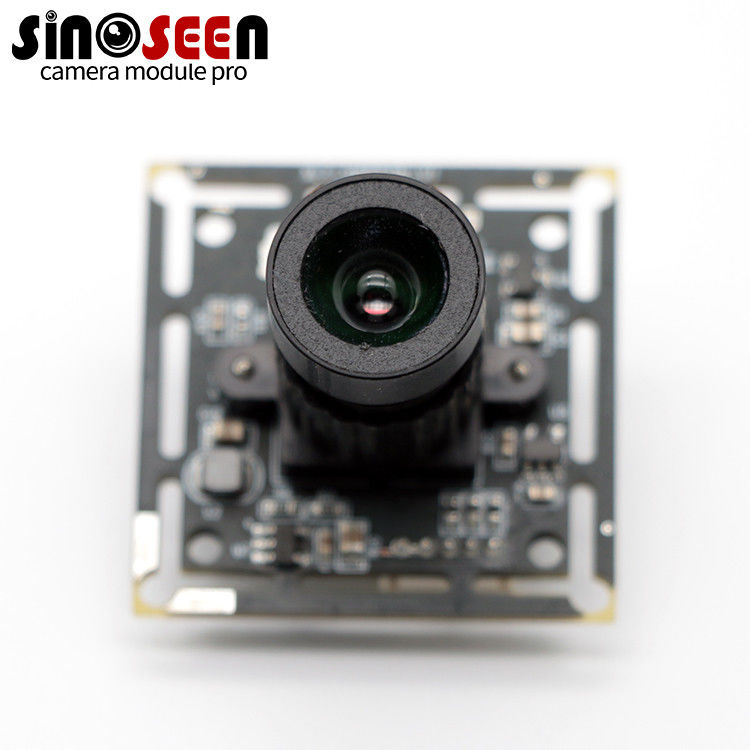

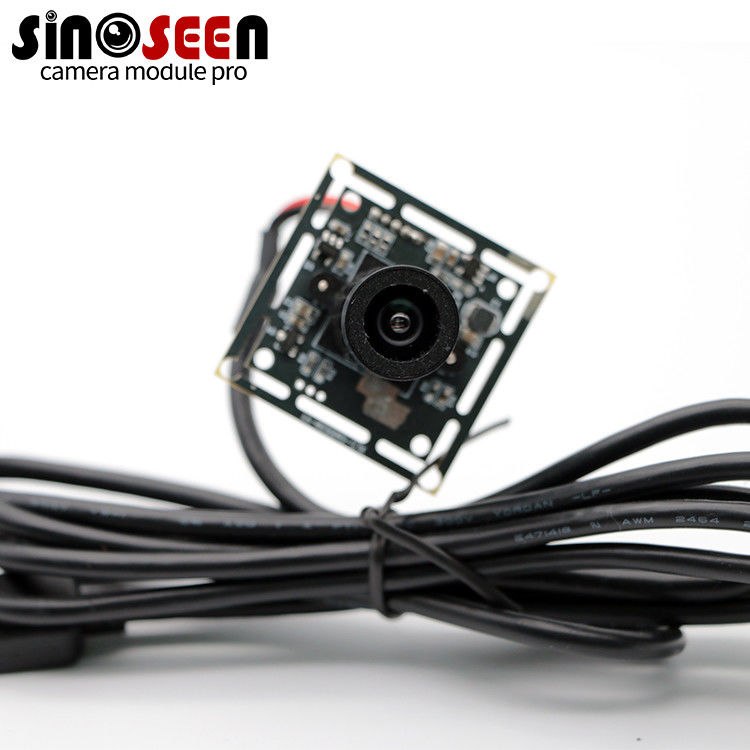

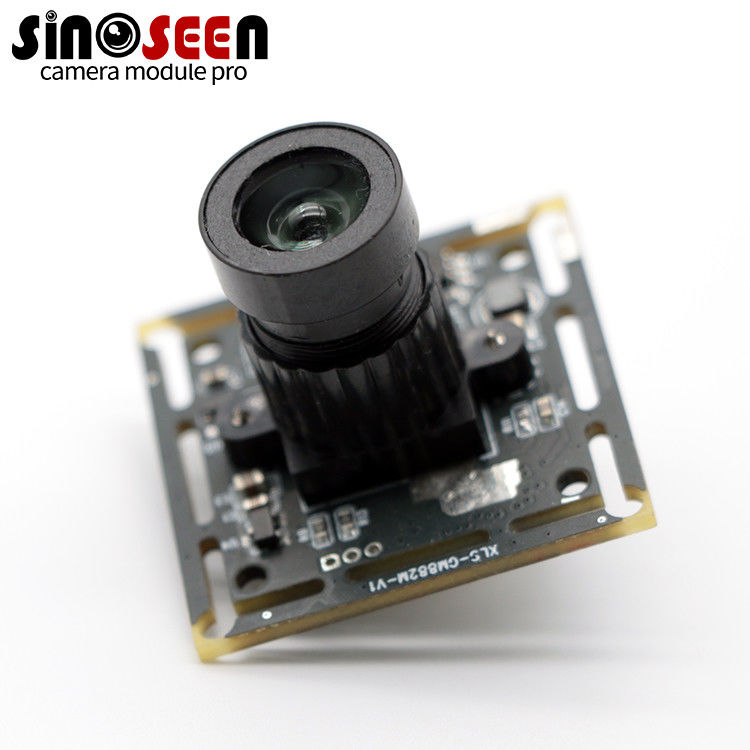

Fixed Focus Lens 1080P OV2710 Camera Module USB UVC Plug And Play
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM882M-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | Omnivision OV2710 |
|---|---|---|---|
| Resolution: | 2MP (1920*1080) | Dimensions: | 38x38mm (customizable) |
| Lens FOV: | 70°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Plug&Play |
| High Light: | 2MP OV2710 USB Camera,1080P OV2710 Camera Module,uvc camera module |
||
Product Description
Fixed Focus Lens 1080P OV2710 Camera Module USB UVC Plug And Play
Fixed Focus Lens UVC Plug And Play 2MP 1080P USB Camera Module With Omnivision OV2710 Sensor
This is a very widely used 2MP USB camera module with OV2710 from Omnivision Technology. OV2710 is our common 1080P 30FPS chip, the price is relatively cheap, the effect is also very good. Usually used in access control equipment, advertising all-in-one machine, cat eye access control, video doorbell, notebook, face recognition and other fields.
The current module size is the standard 38x38MM, but also compatible with 32x32MM, the lens field of view angle is 70 °, fixed focus. Without any driver or software, you can see the image directly by connecting the USB cable. Of course, if you need to customize your own module, the size, lens angle and all other parameters can be customized according to your requirements. Even, we can adjust your firmware according to your requirements, so that OV2710 can achieve the effect you want.
|
Model No
|
SNS-GM882M-V1
|
|
Sensor
|
1/2.7’’ Omnivision OV2710 CMOS
|
|
Pixel
|
2 Mega Pixel
|
|
Most effective pixels
|
1920(H) x 1080(V)
|
|
Pixel Size
|
3.0µm x 3.0µm
|
|
Image Area
|
5856µm x 3276µm
|
|
Compression format
|
YUV2 / MJPG
|
|
Resolution
|
See above
|
|
Frame rate
|
See above
|
|
Shutter Type
|
Electronic rolling shutter
|
|
Focus type
|
Fixed focus
|
|
S/N ratio
|
39dB
|
|
Dynamic range
|
69dB
|
|
Sensitivity
|
3700 mV/lux-sec
|
|
Interface type
|
USB2.0
|
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|
Lens
|
Focal length: 3.6mm
|
|
IR Cut filter: 850nm
|
|
|
FOV: 70°
|
|
|
Thread Size: M12*P0.5
|
|
|
Audio frequency
|
Optional
|
|
Power supply
|
USB BUS POWER
|
|
Power consumption
|
DC 5V, 200mA
|
|
Main chip
|
DSP/SENSOR/FLASH
|
|
Auto Exposure Control (AEC)
|
Support
|
|
Auto White Balance (AEB)
|
Support
|
|
Auto Gain Control (AGC)
|
Support
|
|
Dimension
|
38MM x 38MM
|
|
Storage temperature
|
-20°C to 70°C
|
|
Operating temperature
|
0°C to 55°C
|
|
USB cable length
|
Default
|
|
Support OS
|
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
