Color Image SONY IMX258 Camera Module High Dynamic Range With Housing

Color Image SONY IMX258 Camera Module High Dynamic Range With Housing

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-13MP-IMX258-H1

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/3.06" SONY IMX258
Resolution: 13MP 4208*3120 Dimensions: With Housing Customizable
Lens FOV: 100°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: HDR
High Light:

13MP IMX258 Camera Module

,

HDR IMX258 Camera Module

,

IMX258 color camera module

Product Description

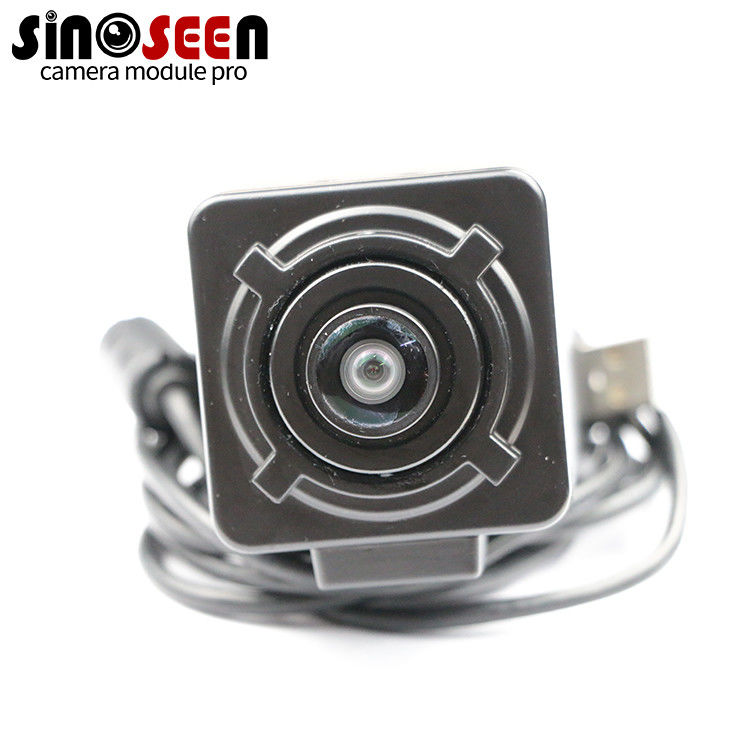

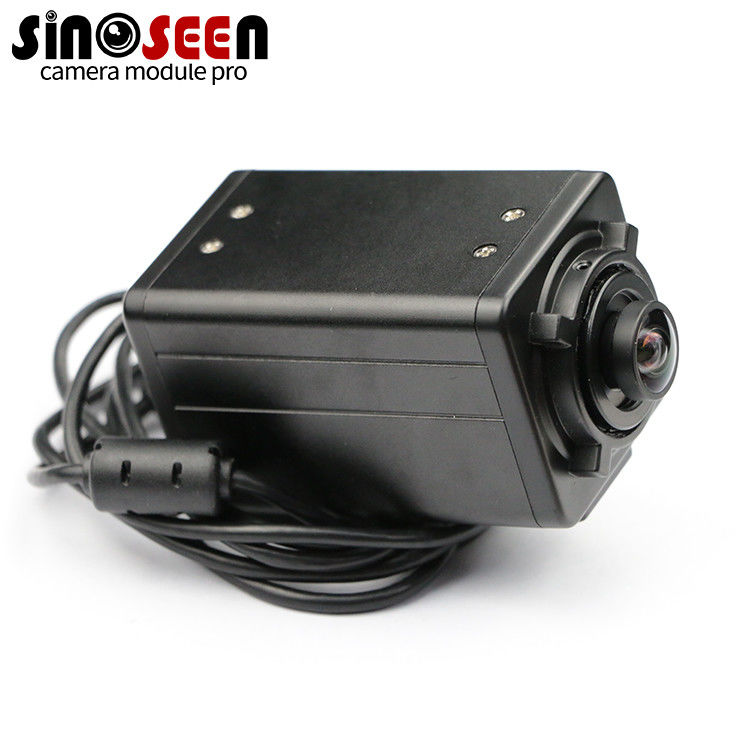

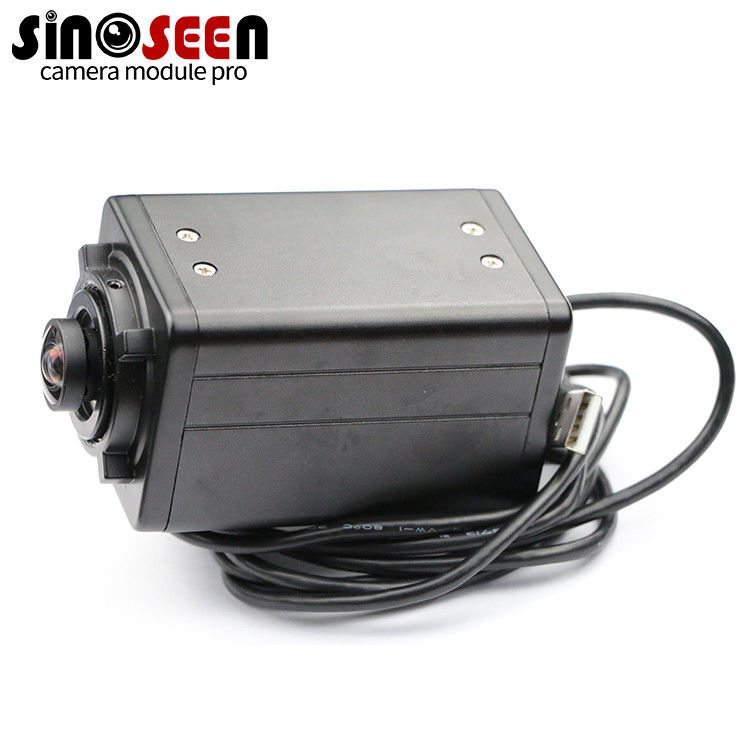

Color Image SONY IMX258 Camera Module High Dynamic Range With Housing

IMX258 SONY CMOS Sensor Color Image High Dynamic Range USB Camera Module With Housing





This is an ultra-high-definition 13MP USB camera module with SONY IMX258 CMOS sensor, equipped with an ultra-high-definition lens. This makes the images it shoots very clear and stable, and the IMX258 has the High dynamic range function, which makes the images it collects more realistic.


According to the customer's requirements for waterproof and heat dissipation, we also matched the customer with a very good stainless steel shell. The surface of the iron shell is painted, which is very durable.


If you are looking for a 13MP USB camera module, this will be a very good choice for you.



Specification

Pixel Size
1.4μm x 1.4μm
Effective Pixels
4208*3120
Image Sensor
1/3.06"
Sensor Type
SONY IMX258
Lens View
FOV100°(Optional),F/N(Optional)
TV Distortion
<1% (Optional)
Temperature(Operation)
0~60℃
Temperature(Storage)
-20~70℃
Dimension
19.25*8.5mm (Customizable)
Color Image SONY IMX258 Camera Module High Dynamic Range With Housing 0Color Image SONY IMX258 Camera Module High Dynamic Range With Housing 1




Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Current available USB solution



0.3MP

Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675

Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)

Global shutter:OV7251 (1/7.5”,B/W)

High frame rate:200FPS SC031GS(1/6”,B/W)

Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)



1MP

Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760

Small size for endoscope:OV9734 GC1009 HM1091

Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)

Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)



2MP

Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)

1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237

1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)

1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310

1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307

1080P-WDR (30FPS): AR0230 AR0331(300W)

1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290

1080P big size: IMX385

1080P global shutter: OG02B10(color) OG02B1B(B/W)



5MP

500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650

FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)



8MP

800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390

8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)



13MP-16MP

IMX214(13M) IMX258(13M) IMMX298(16M)



USB3.0

IMX335 OV5648 IMX179 IMX307 PS5268



H264

GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
