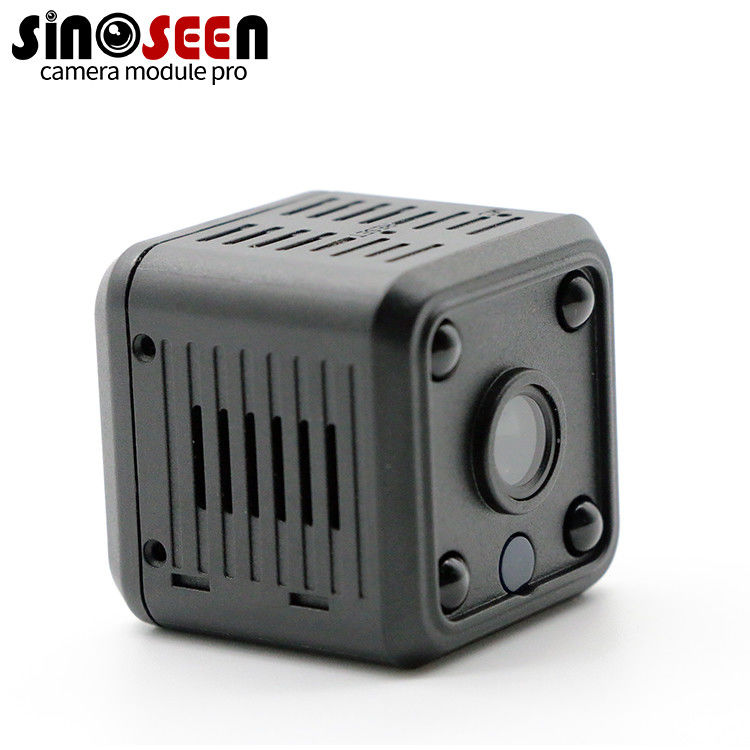

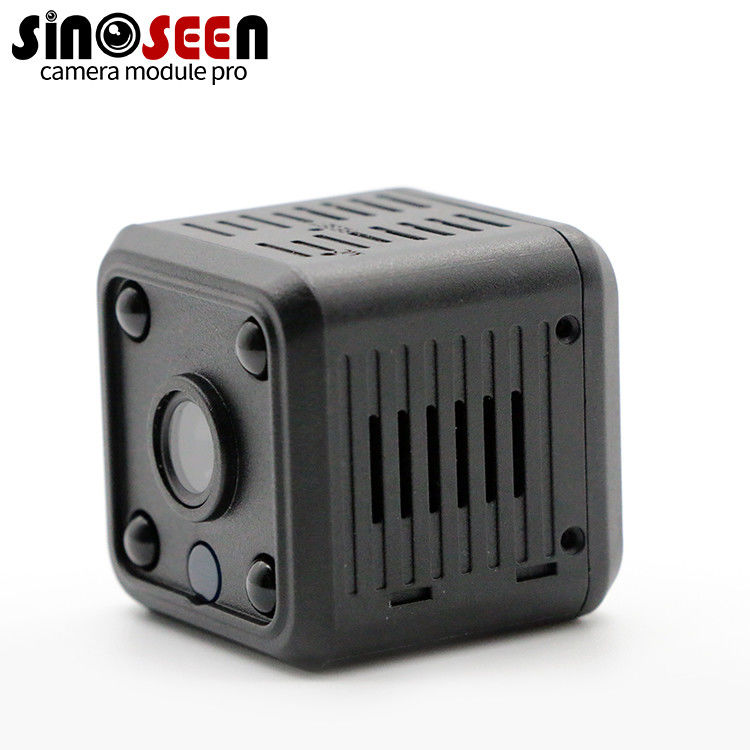

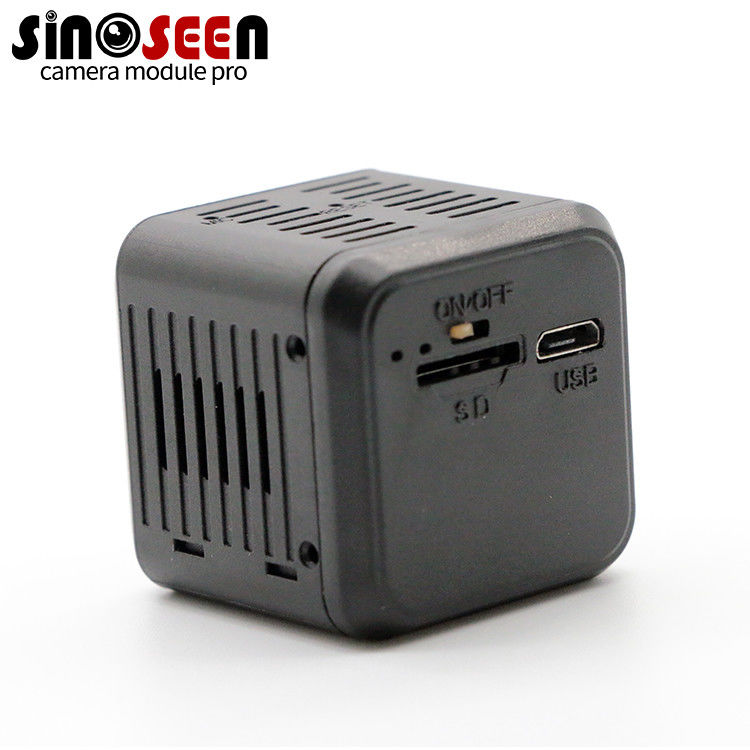

USB2.0 Mini WiFi Surveillance IP Camera Module With OV2735 Sensor

USB2.0 Mini WiFi Surveillance IP Camera Module With OV2735 Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-wifi-OV2735-a6

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: Usb Camera Module Sensor: 1/2.7" OV2735
Resolution: 2mp 1920(H)X1080(V) Dimensions: (customizable)
Lens FOV: 140°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: Wifi
High Light:

OV2735 Sensor IP Camera Module

,

USB2.0 IP Camera Module

,

OV2735 Sensor USB Camera Module

Product Description

OV2735 Mini Camera HD 1080p Surveillance IP Camera Module Mini Wiveless Wifi

2021 Mini Camera HD 1080p Surveillance IP Camera Module Mini Wiveless Wifi with sensor OV2735



This is an excellent 2MP wifi camera module with sensor OV2735 from Omnivision Technology.The OV2735 color image sensor is a full-featured high-definition (HD) 1080p/720p sensor designed to support 1080p for IP cameras, HD analog cameras or 30fps video capture devices.The sensor is widely used in automobiles, medical imaging, mobile devices, security monitoring, AR, VR, drones and robots, laptops, etc. If you need, we can also customize your camera module according to your needs.


Specification
Module No SNS-wifi-OV2735-a6
Pixel Size 3.0μm x 3.0μm
Effective Pixels 1920(H)X1080(V)
Video output YUV2 MJPG
Active Array Size Video Rate 1080p@30FPS
Image Sensor 1/2.7" OV2735
SNR max TBDdB
Dynamic range TBDdB
OTG USB2.0 OTG
AEC Support
AEB Support
AGC Support
Adjustable parameter Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
Lens view FOV140°(optional),F/N(optional)
Interface USB BUS POWER 5P-1.25mm
Operating Voltage DC5V
Operating Current MAX120MMA
Operating temperature 0~60℃
Storage temperature -20~70℃
Cable length Defualt
OS

WinXP/Vista/Win7/Win8

Linux with UVC(above linux-2.6.26)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC





USB2.0 Mini WiFi Surveillance IP Camera Module With OV2735 Sensor 0USB2.0 Mini WiFi Surveillance IP Camera Module With OV2735 Sensor 1USB2.0 Mini WiFi Surveillance IP Camera Module With OV2735 Sensor 2



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Current available USB solution



0.3MP

Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675

Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)

Global shutter:OV7251 (1/7.5”,B/W)

High frame rate:200FPS SC031GS(1/6”,B/W)

Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)



1MP

Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760

Small size for endoscope:OV9734 GC1009 HM1091

Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)

Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)



2MP

Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)

1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237

1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)

1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310

1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307

1080P-WDR (30FPS): AR0230 AR0331(300W)

1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290

1080P big size: IMX385

1080P global shutter: OG02B10(color) OG02B1B(B/W)



5MP

500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650

FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)



8MP

800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390

8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)



13MP-16MP

IMX214(13M) IMX258(13M) IMMX298(16M)



USB3.0

IMX335 OV5648 IMX179 IMX307 PS5268



H264

GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
