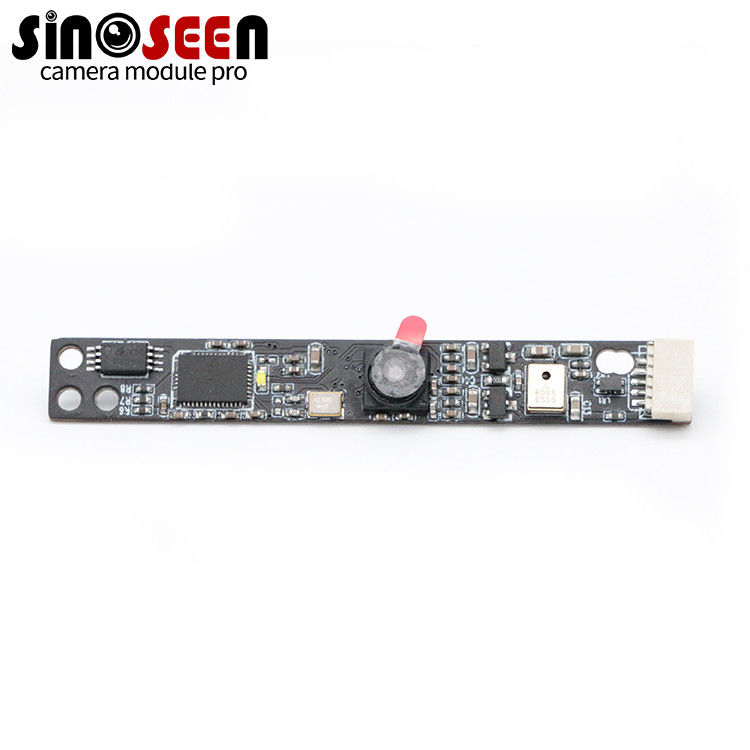

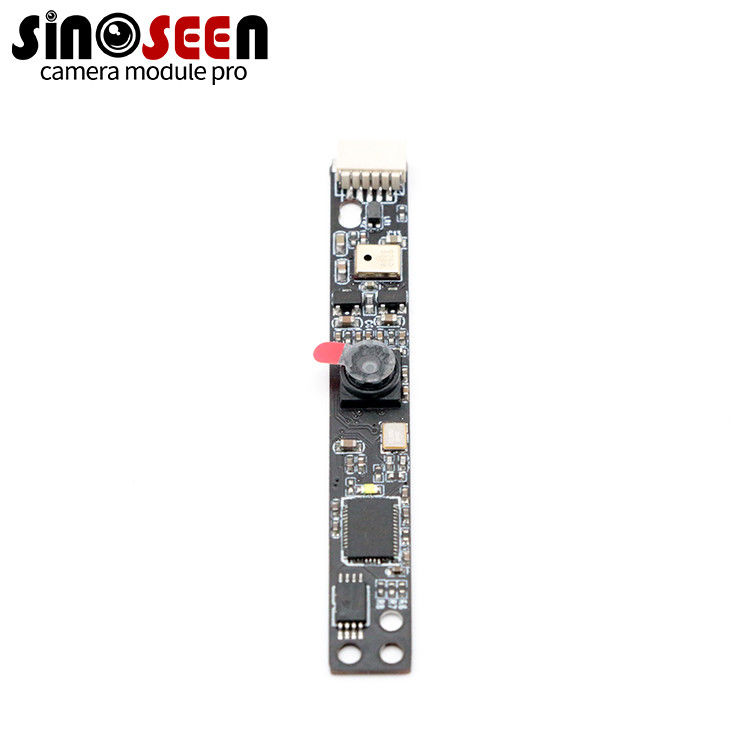

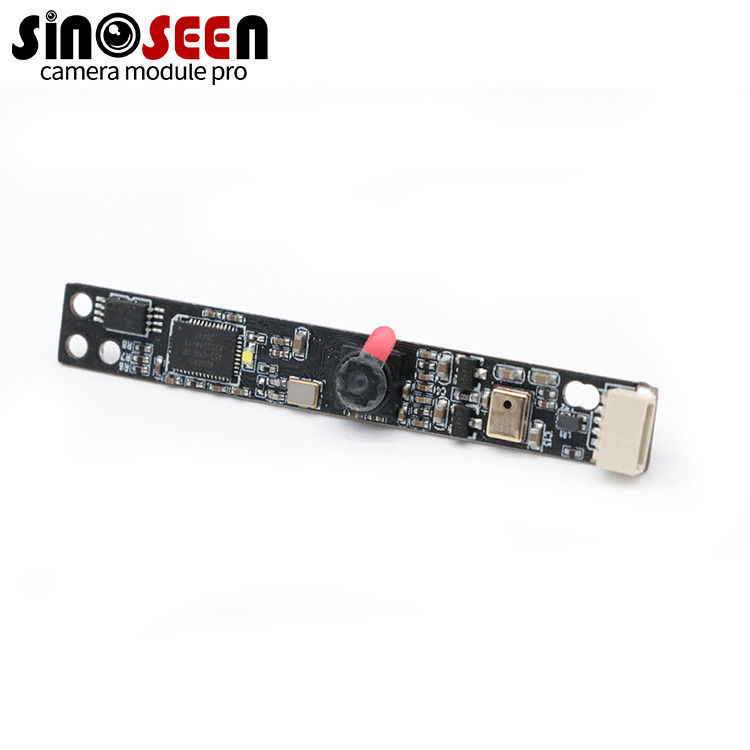

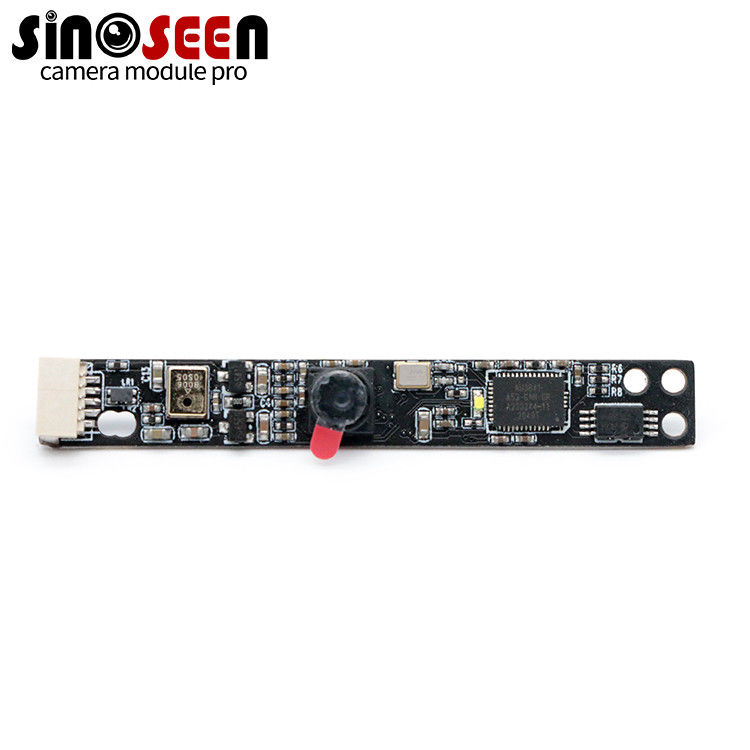

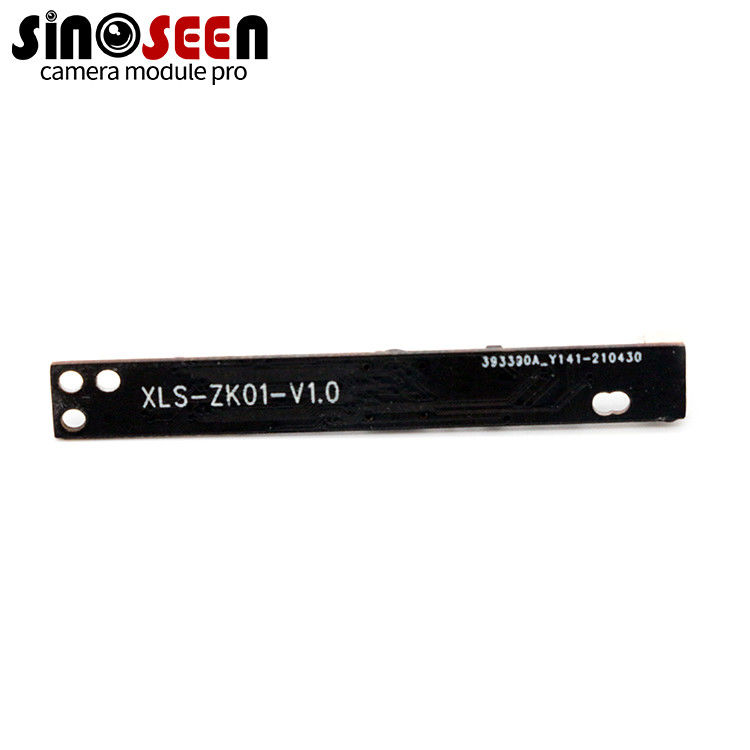

Mini 0.3MP 30FPS USB 2.0 Camera Module With GC0308 Sensor

Mini 0.3MP 30FPS USB 2.0 Camera Module With GC0308 Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-OV-GC0308-f

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 0.3mp Camera Module Sensor: 1/ 6.5'' GalaxyCore GC0308
Resolution: 0.3MP 640 (H) X 480 (V) Dimensions: (customizable)
Lens FOV: 90°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: Small Size
High Light:

GC0308 Sensor USB 2.0 Camera Module

,

Mini 30FPS USB 2.0 Camera Module

,

0.3MP Mini USB Camera Module

Product Description

30fps 0.3mp usb camera module with GC0308 sensor.

Mini 0.3mp usb camera module 30fps with GC0308 sensor.



Features: Size: 1/6.5

The maximum resolution is: 640*480

Full resolution is 30FPS

output formats: Mega Pixel

Features high performance and low power consumption

Application ‹ Cellular Phone Cameras ‹ Notebook and desktop PC cameras ‹ PDAs ‹ Toys ‹ Digital still cameras and camcorders ‹ Video telephony and conferencing equipments ‹ Security systems ‹ Industrial and environmental systems ‹ Bar code reader


Specification

Model No
SNS-0.3MP-GC0308-V1.0
Sensor
1/6.5’’ Galaxycore GC0308 CMOS
Pixel
0.3 Mega Pixel
Most effective pixels
640(H) x 480(V)
Pixel Size
3.4µm x 3.4µm
Chroma
Monochrome, Black/white image
Compression format
MJPEG / YUV2 (YUYV)
Resolution & Frame rate
See above
Shutter Type
Electronic rolling shutter
Focus type
Fixed focus
S/N ratio
49dB
Dynamic range
55dB
Sensitivity
3300mV / lux-sec
Interface type
USB2.0
Lens FOV
50°
Adjustable parameter
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure
Microphone
Not supported
Audio frequency
Optional
Power supply
USB BUS POWER
Power consumption
DC 5V, 70mW
Main chip
DSP/SENSOR/FLASH
Auto Exposure Control (AEC)
Support
Auto White Balance (AEB)
Support
Auto Gain Control (AGC)
Support
Dimension
(Customizable)
Storage temperature
-20°C to 70°C
Operating temperature
0°C to 60°C
USB cable length
Default


Support OS
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
