1080P HDR HD Dual Lens Camera Module With PS5268 OV2735 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-OV-PS5268-27 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | Dual Lens Camera Module | Sensor: | PS5268 /OV2735 |
|---|---|---|---|
| Resolution: | 2MP 1928(H) X 1088(V) | Dimensions: | (customizable) |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Dual Lens |
| Highlight: | HDR Dual Lens Camera Module,OV2735 Sensor Dual Lens Camera Module,PS5268 Sensor HD Camera Module |
||
Product Description

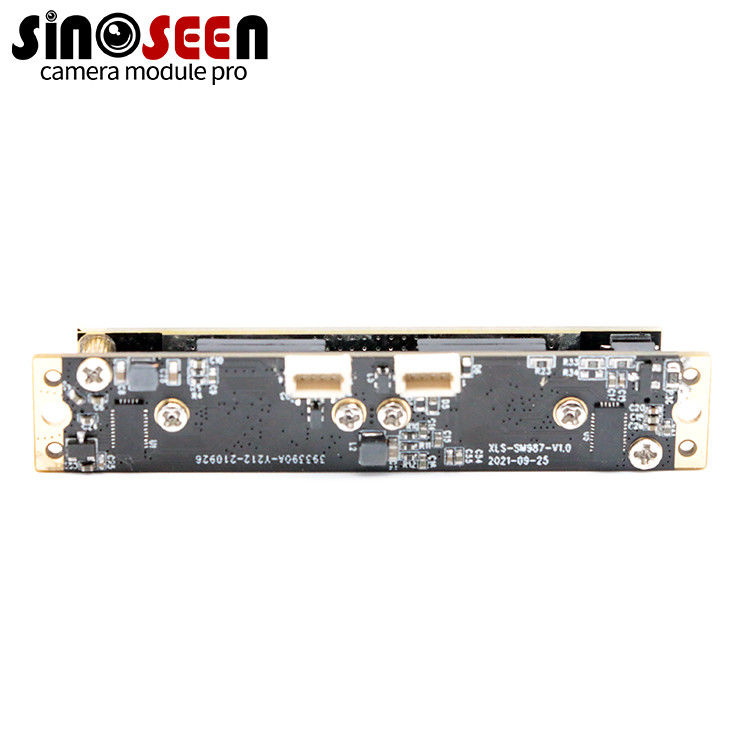

HD Dual Lens Camera Module 1080P HDR With PS5268 OV2735 Sensor
1080P HDR HD Dual Lens Camera Module With PS5268 OV2735 Sensor
HD Dual Lens Camera Module
This is our newly developed Deal Lens camera module.This Deal Lens camera module uses two different 2mp sensors, PS5268 sensor and ov2735 sensor.Both chips have the characteristics of high dynamics and high definition, and can have very good image quality output..For heat dissipation considerations, we designed a double-layer PCB board design.We also designed six LEDs with very good brightness for this camera module, which can shoot very clearly in low-light environments.This camera module can be widely used in 3D, face recognition, industrial detection, AR, VR, biological detection and other fields.
| Parameter | Typical Value |
| SENSOR | PS5268/OV2735 |
| Active array size | 1928(H) x 1088(V) |
| Pixel size | 3.0um (H) x 3.0um (V) |
| Shutter type | Electronic rolling shutter (ERS) |
| Optical format | 1/2.7-inch |
| Lens chief ray angle | 17 degree |
| ADC | 10-bit |
| Sensitivity | 5800 mV/Lux-sec |
| SNRmax | 41 dB |
| Dynamic range | 85 dB |
| Scan mode | Progressive scan |
| Input clock | Max 50MHz |
| Pixel clock | Max 148.5MHz |
| Max. frame rate |
1080p: 1920x1080 Linear@ 60fps 1080p: 1920x1080 HDR+LTM @30fps |
| Supply voltage |
Analog: 3.3 V Digital: 1.2 V I/O: 1.8V / 3.3V |
| Power consumption |
75mW@1080p30 (MIPI) 54.5mW@1080p30 (DVP w/o I/O) 124mW@HDR-LTM1080p30 (MIPI) 107mW@HDR-LTM 1080p30 (DVP w/o I/O) |
| Operating temperature | -30°C ~ 85°C |
