OG02B10 Sensor 2MP 60FPS Dual Lens Camera Module For Face Recognition

OG02B10 Sensor 2MP 60FPS Dual Lens Camera Module For Face Recognition

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-2MP-OG02B10-HQK1

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 2mp Camera Module Sensor: 1/2.9'' Omnivision OG02B10
Resolution: 2MP 1600(H) X 1200(V) Dimensions: (customizable)
Lens FOV: 90°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: Dual Lens
High Light:

OG02B10 Sensor Dual Lens Camera Module


2MP 60FPS Dual Lens Camera Module


Dual Lens 2MP Camera Module

Product Description

Color Image 2mp 60fps For Face Recognition Dual Lens Camera Module With OG02B10 Sensor.

2021 Dual Lens Camera Module Color Image 2mp 60fps For Face Recognition With OG02B10 Sensor.

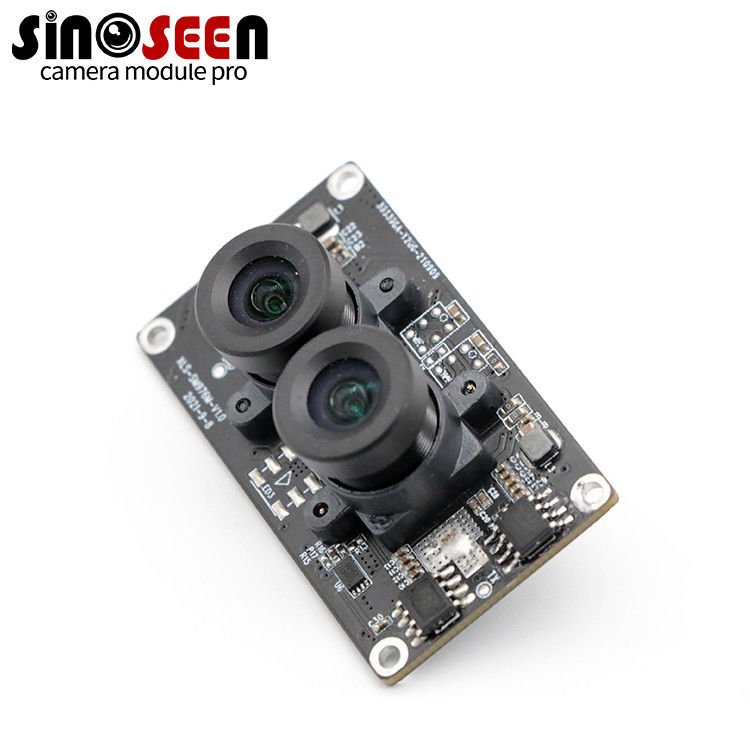

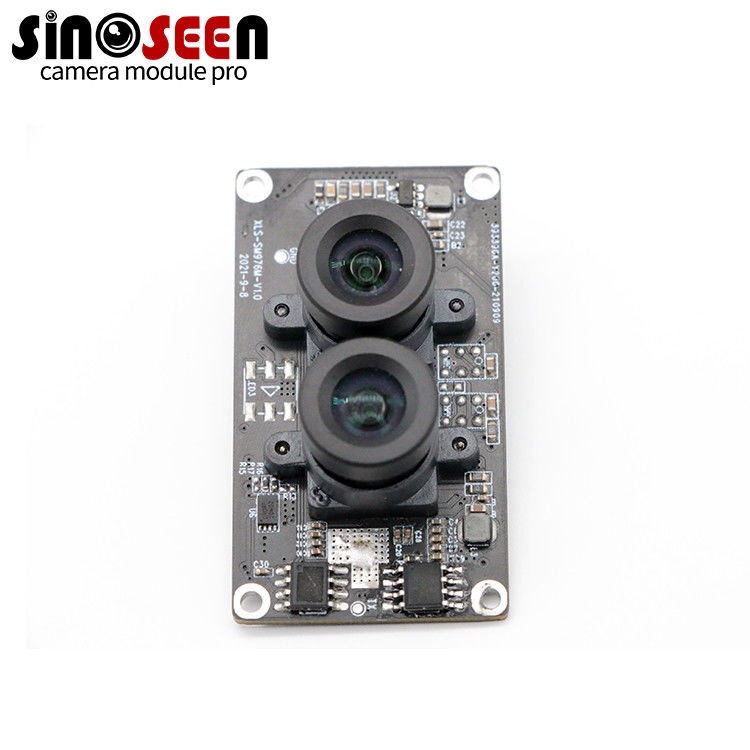

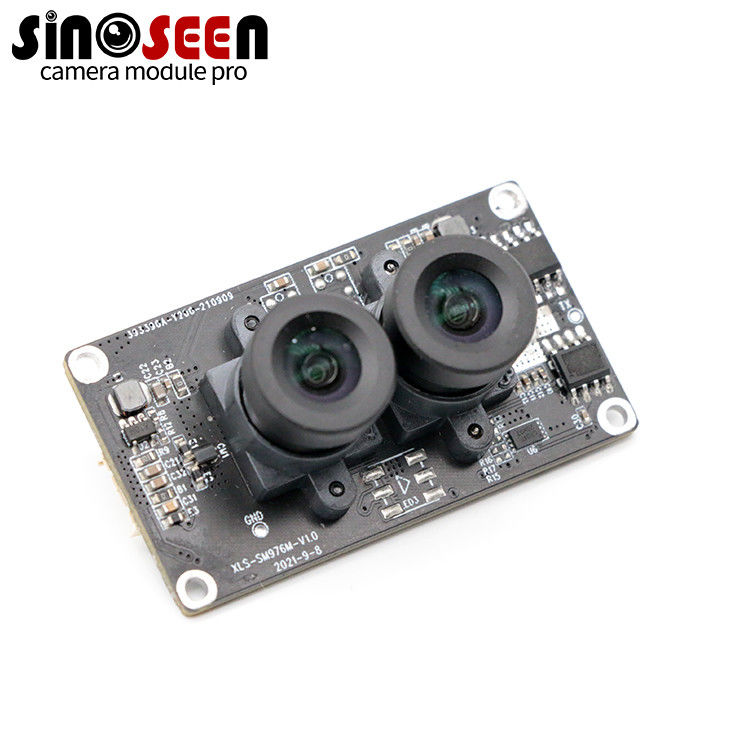

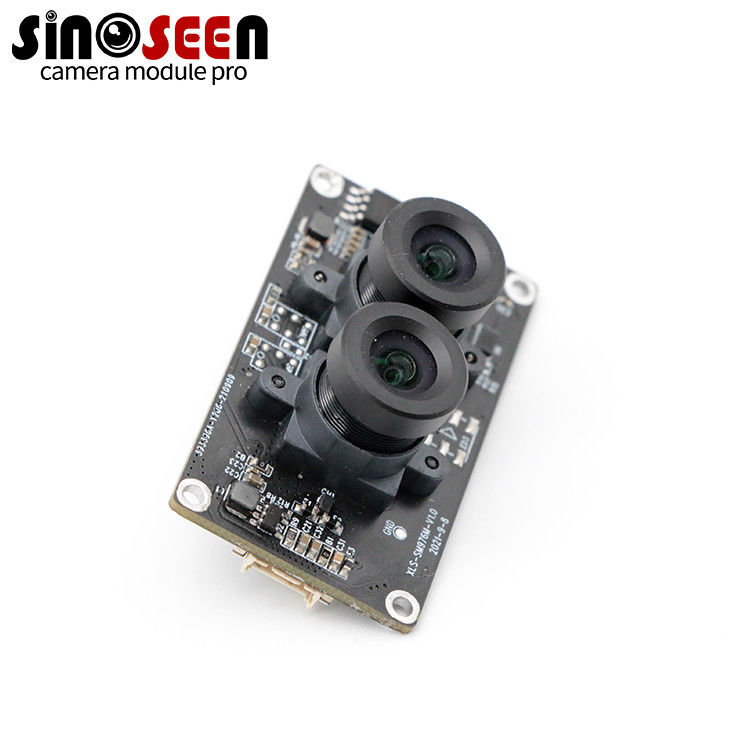

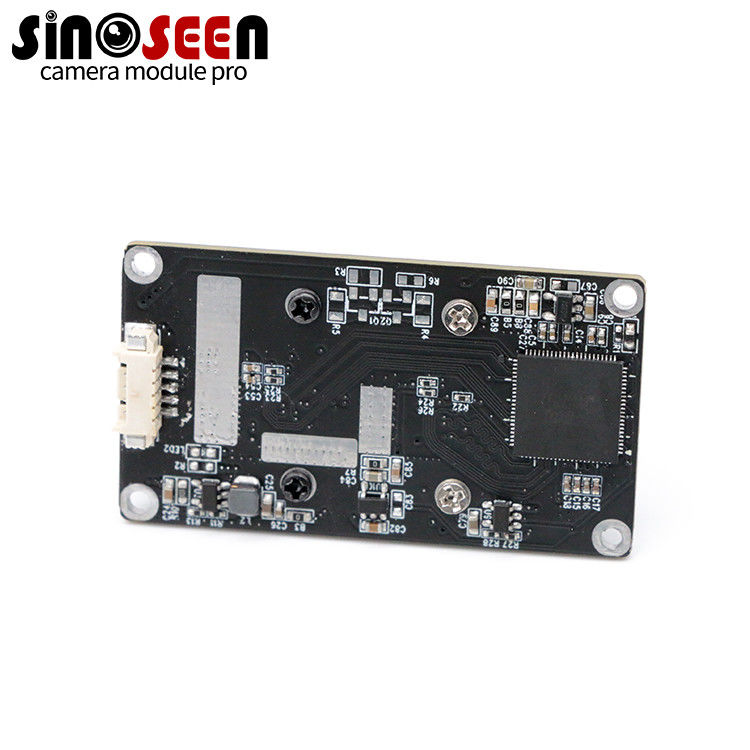

Dual Lens Camera Module

This is a newly developed Dual Lens camera module with OG02B10 sensor.The sensor has a frame rate of up to 60FPS and has color images.If you need black and white images, we can also change to OG02B1B sensor for you.The size of the OG02B10 sensor used in this Dual Lens camera is 1/2.9, the maximum resolution is 1600*1200, and it has the characteristics of high performance and low power consumption.Widely used in many high-tech, high-end consumer and industrial machine vision applications, such as face recognition, AR/VR, industrial automation, robotics, drones, 3D modeling, imaging, barcode scanning, factory automation, healthcare, agriculture, And labor intelligence (AI), computer vision, etc. If you need, we can also customize it for you according to your needs.

Model No SNS-2MP-OG02B10-HQK1
Sensor 1/2.9’’ Omnivision OG02B10
Pixel 2 Mega Pixel
Most effective pixels 1600(H) x 1200(V)
Pixel Size 3.0µm x 3.0µm
Chroma COLOR
Compression format MJPG / YUY2
Resolution & Frame rate See above
Shutter Type Global shutter
Focus type Fixed Focus/Manually Adjustable
Clock Frequency 6 to 27 MHz
Chief Ray Angle (CRA) 15°
Microphone Optional
Interface type USB 2.0 high speed

Adjustable parameter
Brightness/Contrast/Color saturation/Hue/Definition/Gamma
Lens Lens Structure: 6G
  Lens Size: 1/2.5 inch
  H FOV: 90°
  Thread Size: M12*P0.5
Audio frequency Optional
Power supply USB BUS POWER
Power consumption DC 5V, <200mA
Auto Exposure Control (AEC) Support
Auto White Balance (AEB) Support
Auto Gain Control (AGC) Support
Dimension (compatible )
Storage temperature -20°C to 75°C
Operating temperature 0°C to 60°C
USB cable length Default

Support OS
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
