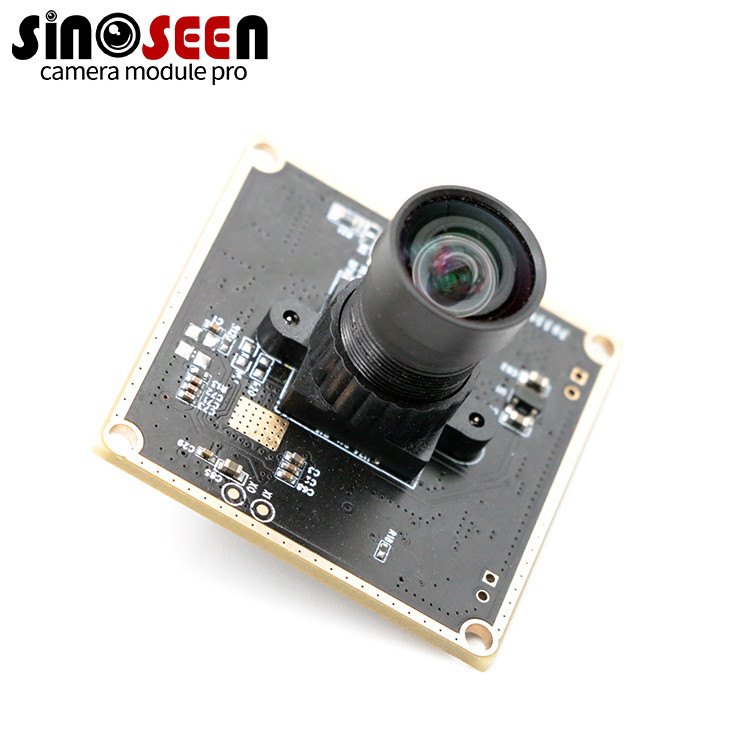

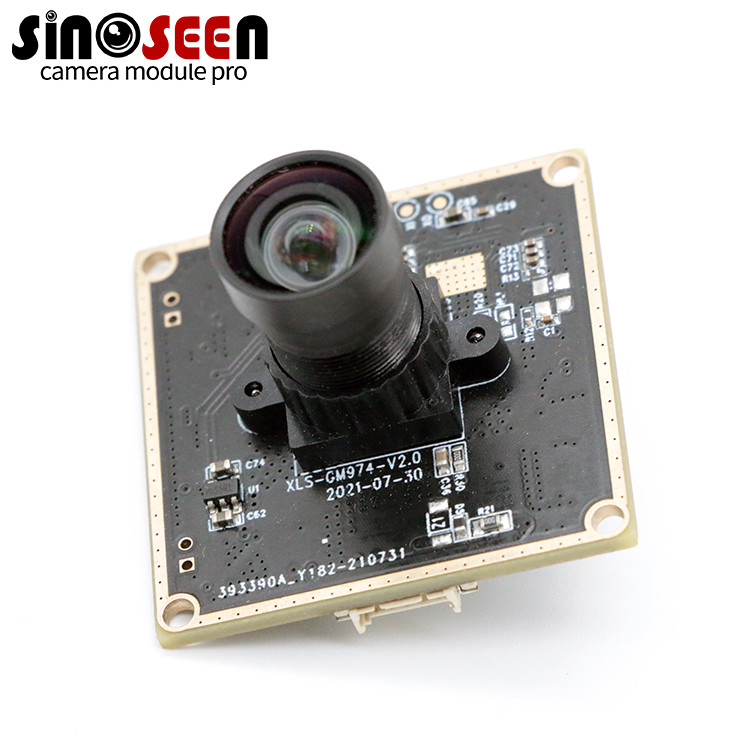

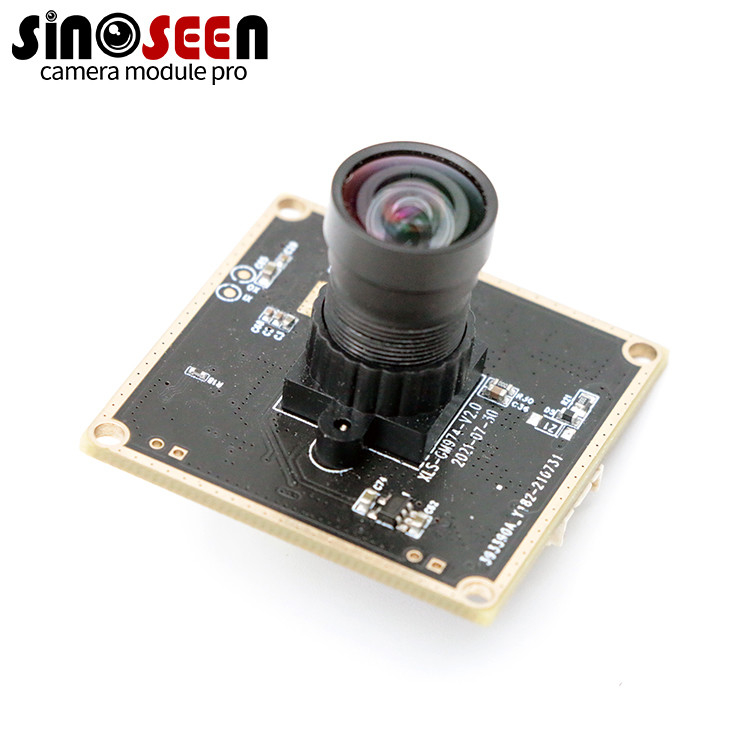

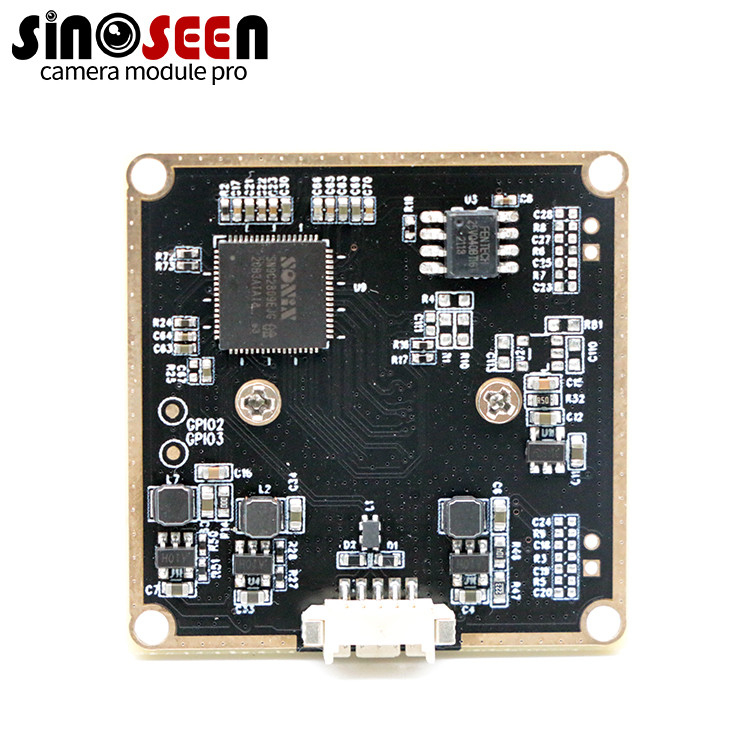

Fixed Focus HD 16MP Camera Module With Sony IMX298 COMS Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-16MP-IMX298-DDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 16MP Camera Module | Sensor: | 1/2.8"sony IMX298 |
|---|---|---|---|
| Resolution: | 4608*3456 | Dimensions: | (customizable) |
| Lens FOV: | 80°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | HD |
| Highlight: | HD 16MP Camera Module,IMX298 Sensor 16MP Camera Module,16MP HD Camera Module |
||
Product Description
16MP Camera Module HD With Sony IMX298 COMS Sensor
Fixed Focus 16MP Camera Module HD With Sony IMX298 COMS Sensor
Size: 1/2.8
Maximum resolution: 4608*3456
Features:
1. High dynamic range, when the light contrast of the shooting environment is large, it can clearly record the details of the dark or high-light parts, so that the light and dark changes are more obvious
2. The full resolution can reach 30FPS
3. With high sensitivity, low power consumption, high-speed image capture
Application: high-speed camera, document comparison, all-in-one conference equipment, mobile phones, tablet computers, logistics scanning code equipment and other image fields
Specification:HD 16MP Camera Module
|
Pixel Size |
1.12μm x 1.12μm |
|
Effective Pixels |
4608*3456 |
|
Image Sensor |
1/2.8" |
|
Sensor Type |
SONY IMX298 |
|
Lens View |
FOV70°(Optional),F/N(Optional) |
|
TV Distortion |
<1% (Optional) |
|
Temperature(Operation) |
0～60℃ |
|
Temperature(Storage) |
-20～70℃ |
|
Dimension |
Customizable |
