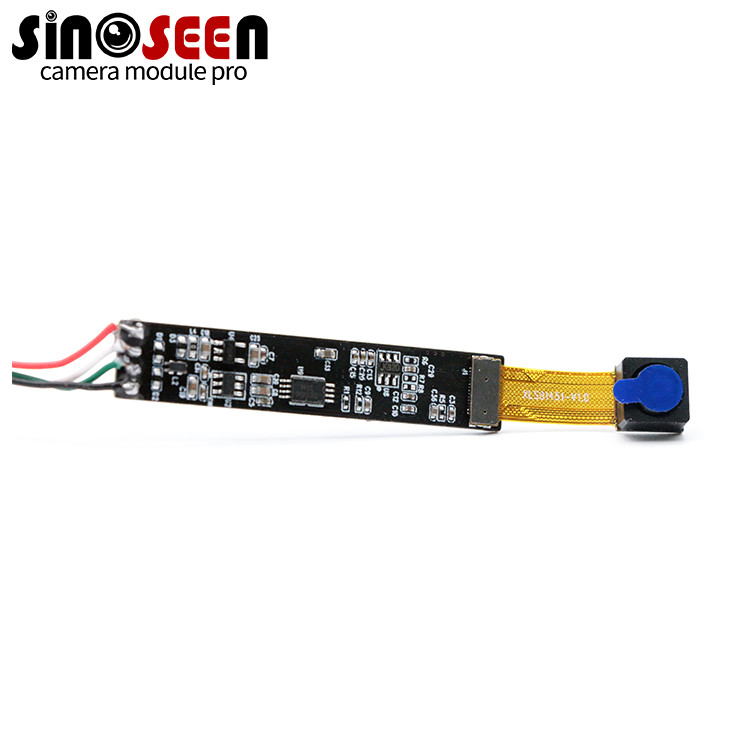

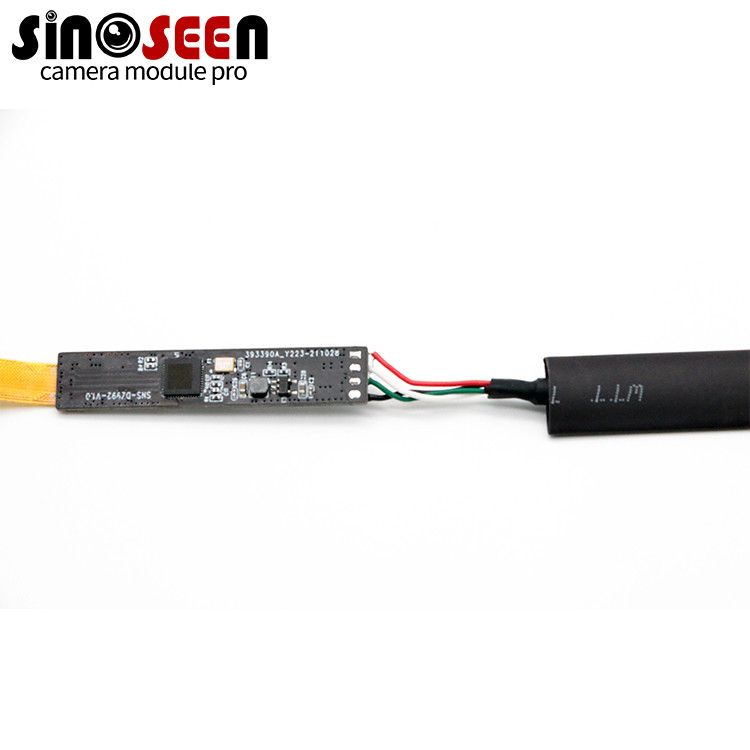

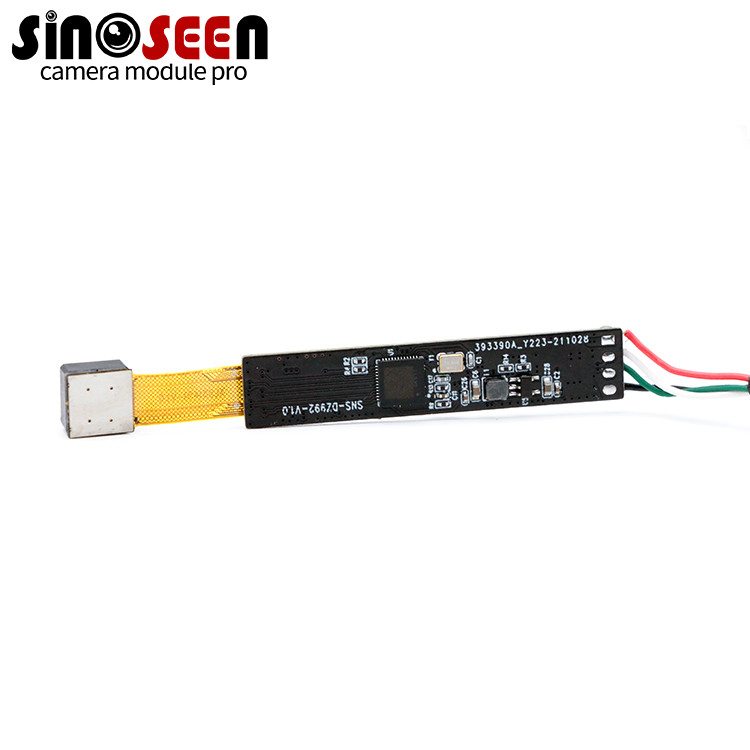

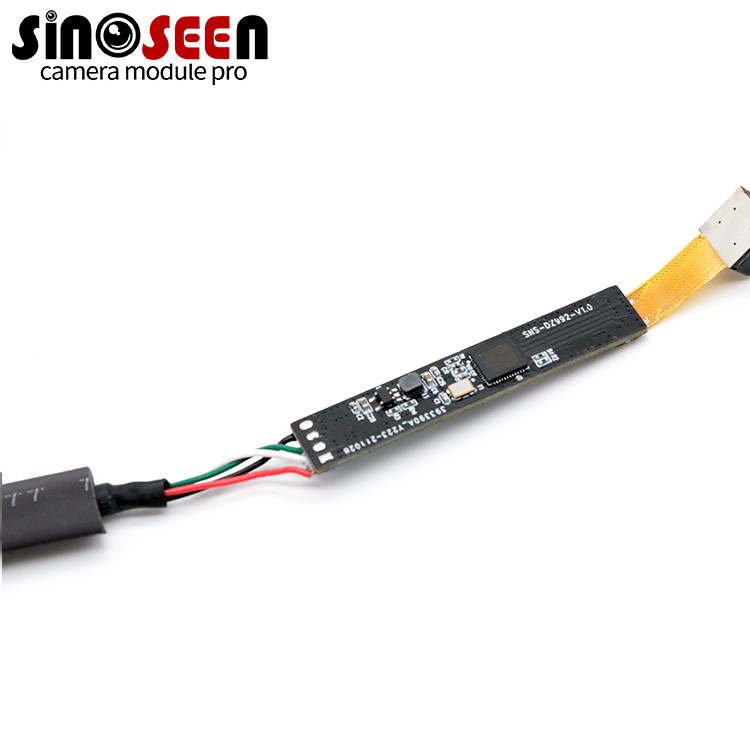

Sony IMX179 Sensor 15FPS USB2.0 8MP Camera Module Low Power Consumption
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-8MP-IMX179-bbx |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 8mp Camera Module | Sensor: | 1/3.2'' IMX179 |
|---|---|---|---|
| Resolution: | 8MP3264(H) X 2448(V) | Dimensions: | (customizable) |
| Lens FOV: | 100°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | 4K |
| Highlight: | USB3.0 8MP Camera Module,IMX179 Sensor 8MP Camera Module,30FPS 8MP USB Camera Module |
||
Product Description
Sony IMX179 Sensor 15FPS USB2.0 8MP Camera Module
Low Power Consumption 15fps 8MP USB2.0 Camera Module
Key Features
- 1/3.2" Sony IMX179 sensor with 8MP resolution (3264*2448)
- USB 2.0 interface for smooth image quality output
- Low power consumption design with high sensitivity
- 15FPS frame rate for clear motion capture
- Excellent performance in low-light conditions
- Fixed focus with electronic rolling shutter
Technical Specifications
| Model No | SNS-8MP-IMX179-bbx |
|---|---|
| Sensor | 1/3.2" IMX179 |
| Resolution | 3264(H) * 2448(V) |
| Frame Rate | 15FPS |
| Interface | USB2.0 |
| Power Consumption | DC 5V, 200mA |
| Operating Temperature | 0°C to 60°C |
| Dimensions | 90mm * 15mm (customizable) |
| Supported OS | Windows, Linux, MacOS, Android |
Application Areas
Industrial cameras
Machine vision
High-definition monitoring
Driving recorders
Mobile devices
Tablet computers
Smart home solutions
UAV/drone solutions
Face recognition
Iris recognition
VR camera solutions
Optical technology
