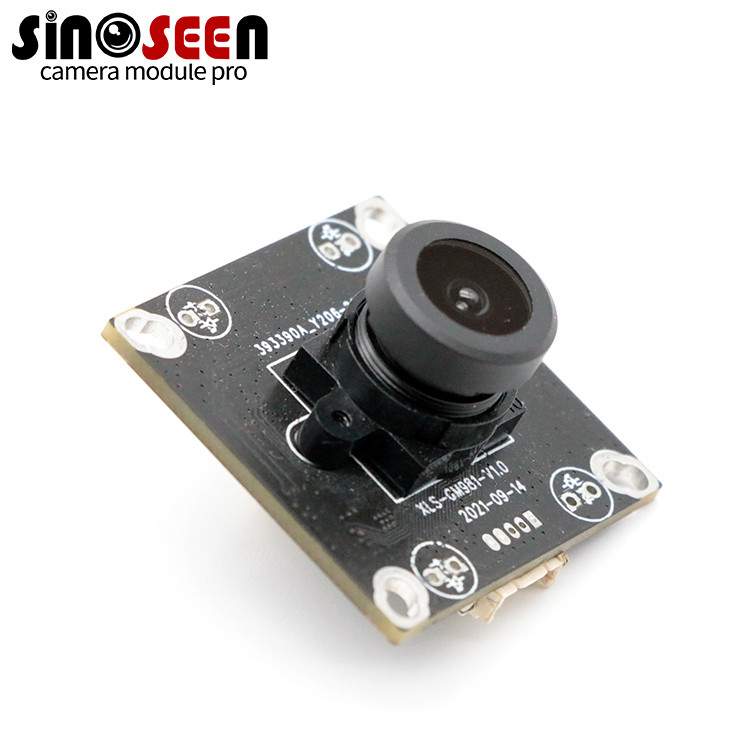

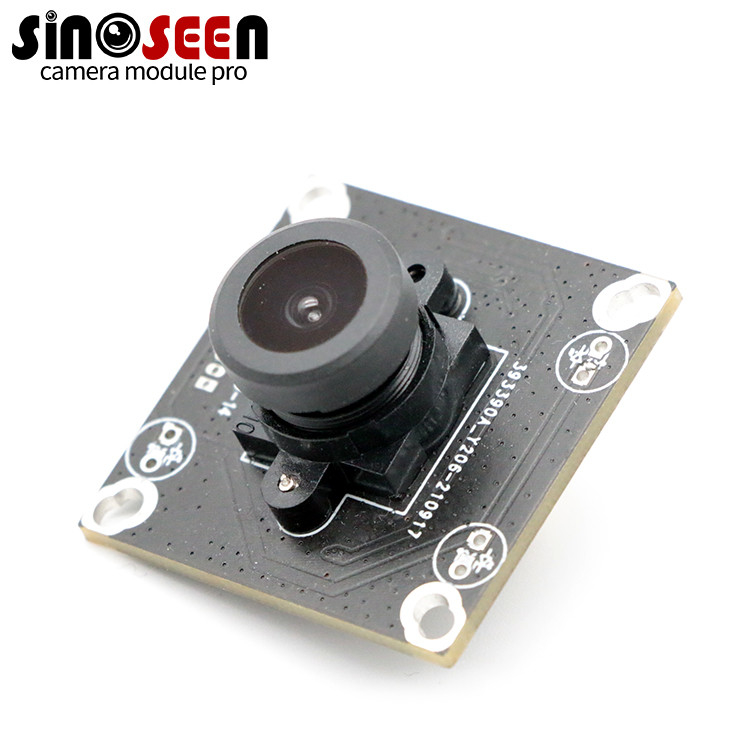

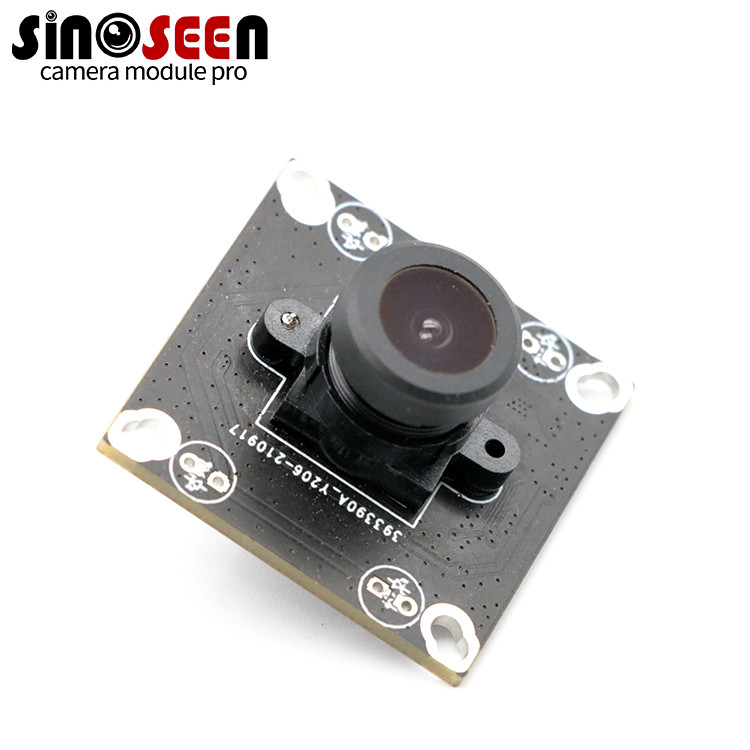

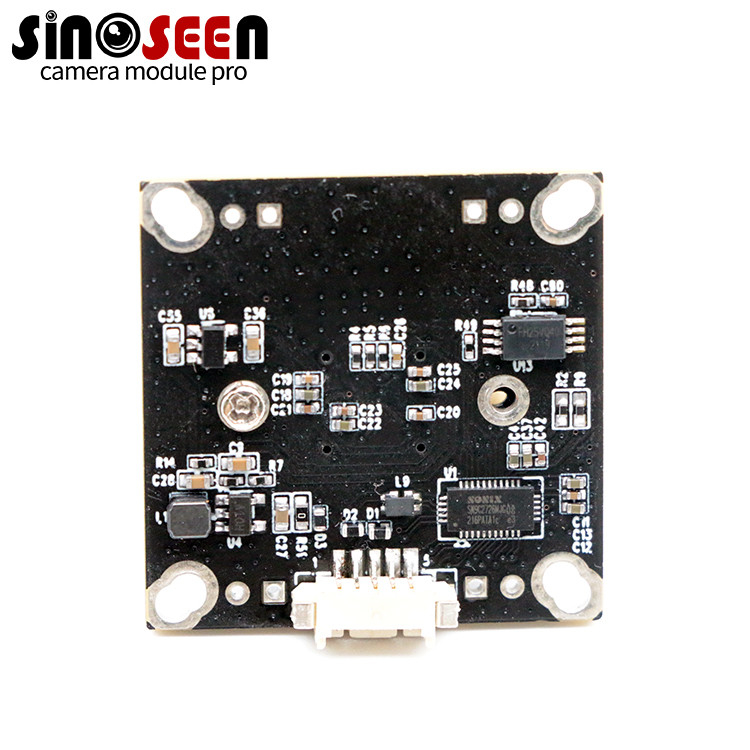

HDR 1080P 2MP USB Camera Module With SONY IMX307 CMOS Sensor

HDR 1080P 2MP USB Camera Module With SONY IMX307 CMOS Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-2MP-IMX307-pjl

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 2MP Camera Module Sensor: 1/2.8'' SONY IMX307 CMOS
Resolution: 1920(H) X 1080(V) Dimensions: (customizable)
Lens FOV: 100°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: HDR
High Light:

HDR 1080P USB Camera Module

,

IMX307 Sensor USB Camera Module

,

HDR 1080P 2MP Camera Module

Product Description

2MP Usb Camera Module HDR With SONY IMX307 CMOS Sensor

HDR 1080P 2MP Usb Camera Module With SONY IMX307 CMOS Sensor



Size: 1/5 inch

Maximum resolution: 1600*1200

Features:

1. Features of low power consumption

2. It is programmable through a simple two-wire serial interface and has very low power consumption.It provides RAW10 and RAW8 date formats with MIPI interface Application: mobile phones, tablet computers, all-in-ones, toys, high-speed camera, QR code recognition, face recognition, video doorbell and other fields


Specification

Sensor 1/5’’ inch GC02M2
Pixel 2 Mega Pixel
Most effective pixels 1600(H) x 1200(V)
Pixel Size 1.75µm x 1.75µm
Dimension customizable
Shutter Type Electronic rolling shutter
Focus type Fixed focus
Lens Focal length: 3.6mm
IR Cut filter: 850nm
FOV: 95°
Thread Size: M12*P0.5
Compression format YUV2/MJPG
Power consumption TBDmA
Interface type USB2.0
  30fps@UXGA
Frame rate 30fps@HD 720P
  60fps@SVGA
Dimension 38x38MM
Storage temperature -40°C to 85°C
Operating temperature -20°C to 70°C
USB cable length Default
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
