Sony IMX577 / 377 Sensor 12MP FHD / HDR USB3.0 4K Camera Module

Sony IMX577 / 377 Sensor 12MP FHD / HDR USB3.0 4K Camera Module

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-IMX577-V1.0

Payment & Shipping Terms:

Minimum Order Quantity: 200
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 12mp Camera Module Sensor: IMX577/377
Resolution: 12MP 4072 (H) X3064 (V) Dimensions: (customizable)
Unit Cell Size: 1.55 Um (H) X 1.55 Um (V) Focus Type: Fixed Focus
Interface: USB3.0 Feature: FHD
High Light:

USB3.0 4K Camera Module

,

12MP 4K Camera Module

,

Sony IMX577 Sensor USB Camera Module

Product Description

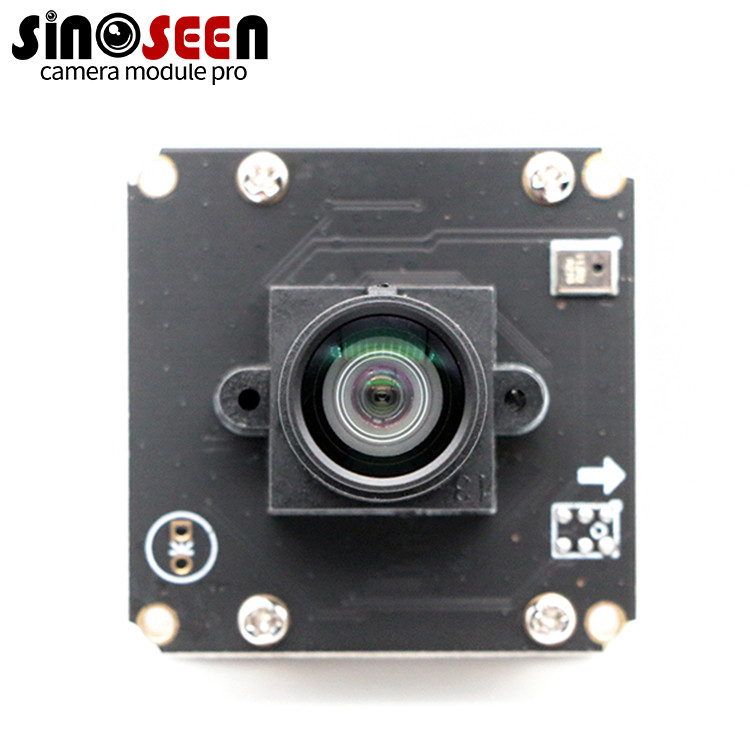

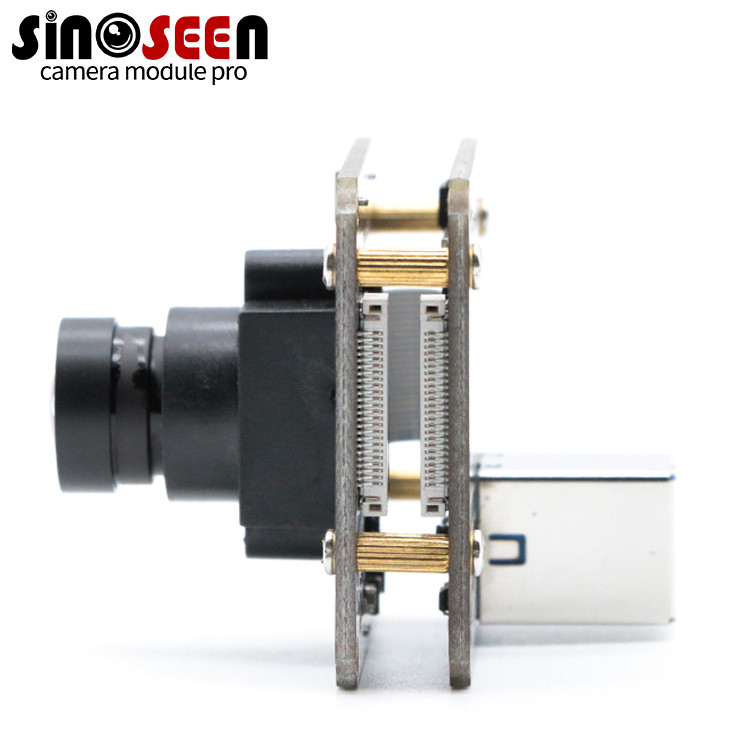

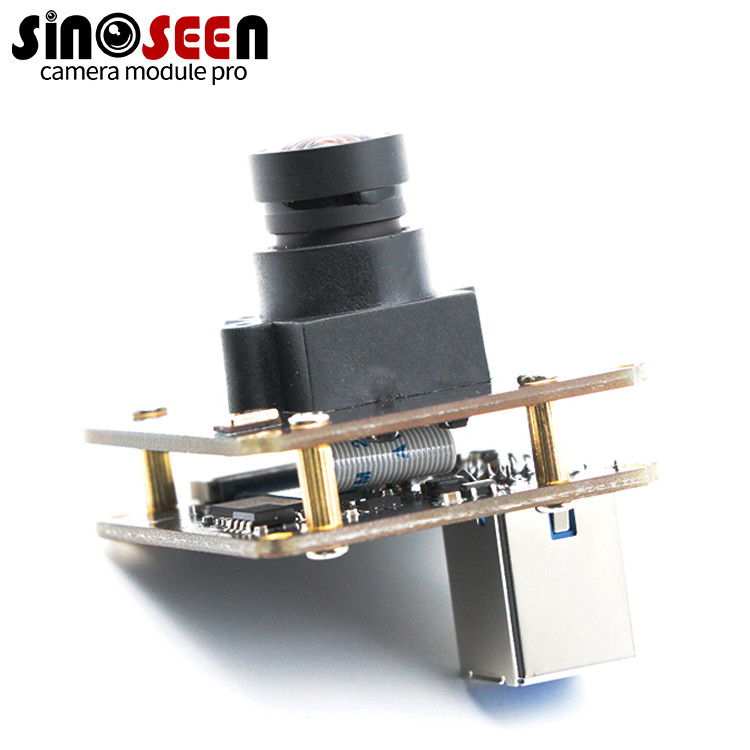

sony IMX577/377sensor 12MP FHD/HDR 4K USB3.0 camera module



Description

This is a new product developed by us, using Sony IMX577 sensor, the interface is USB3.0, and it can also be compatible with USB2.0. It uses Sony's stacked CMOS image sensor technology to achieve high speed and is equipped with an electronic shutter with variable integration time.
This product has 12MP high pixel, high frame rate, high resolution. It is characterized by low power consumption.
It can be used in monitoring, such as security surveillance cameras, 360 panoramic driving recorders, consumer cameras, high-definition video, drones, sports DV and other imaging fields. Suitable for indoor and outdoor use, industrial cameras, video conferencing.
We can adjust the size and shape according to your requirements, besides, we have various FOVs from 40° to 200°, you can define the pinout/FOV/size by yourself.


Specification
Effective Pixels 4072 (H) x3064 (V)
Image Sensor
(Type 1/2.3)12.3 Mega-pixel CMOS
Sensor Type Sony IMX577
Chip size 7.564 mm (H) × 5.476 mm (V)
Substrate material
Silicon
operating temperature
-20 to +75 ˚C
storage temperature
-30 to +80 ˚C
Input frequency range
27.0 MHz
Dimensions

Customizable

​​

Sony IMX577 / 377 Sensor 12MP FHD / HDR USB3.0 4K Camera Module 0

Sony IMX577 / 377 Sensor 12MP FHD / HDR USB3.0 4K Camera Module 1
