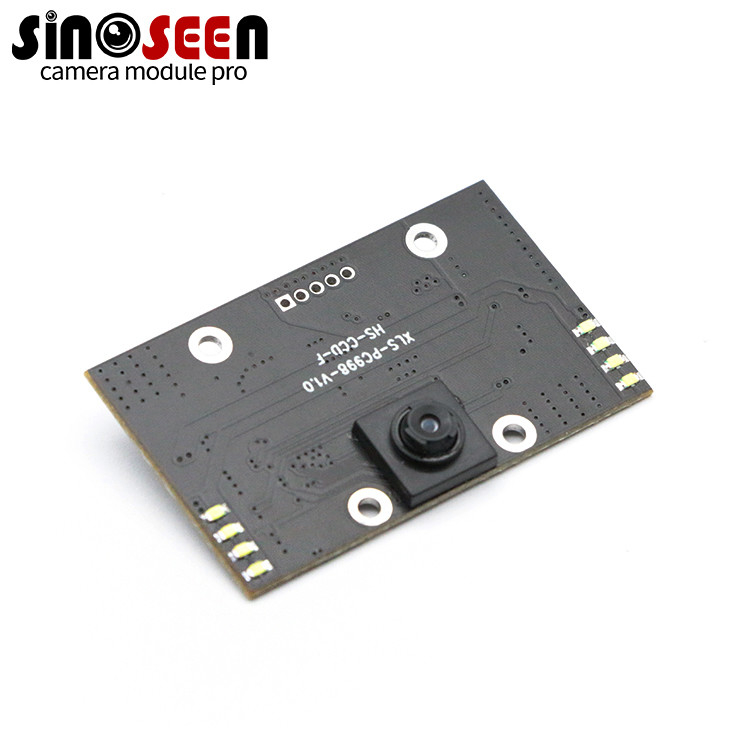

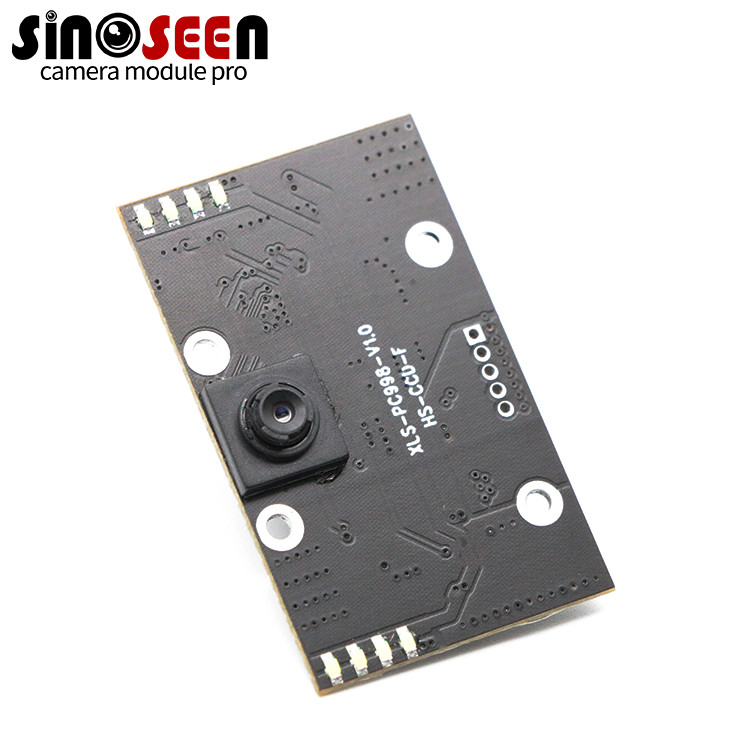

Custom 0.3MP GC0308 Sensor Industrial USB Camera Module
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHs |
| Model Number: | SNS-PC998-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/6.5 VGA CMOS GC0308 |
|---|---|---|---|
| Resolution: | 0.3MP (648 X 488) | Dimensions: | Customizable |
| Pixel Size: | 34.μm X 3.4μm | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Low Power Consumption |
| Highlight: | GC0308 Sensor Industrial USB Camera Module,Custom 0.3MP USB Camera Module,GC0308 Sensor Industrial Camera Module |
||
Product Description
Custom 1/6.5 inch low power 0.3MP with gc0308 sensor usb camera module for industrial camera
Low power camera module
This is our newly developed USB camera module with GC0308 sensor. This 0.3 MP USB camera module is versatile and very cheap. The size of this sensor is 1/6.5, the larger the size, the better the luminous flux. It can run at 30fps at 648*488 resolution, which makes its picture very smooth and clear. It features high performance and low power consumption. This USB camera module can be widely used in access control equipment, all-in-one computers, video doorbells, laptops, face recognition and other fields. If you need, we can also customize it for you according to your needs.
|
Model No
|
SNS-PC998-V1.0 |
|
Sensor
|
1/6.5 VGA CMOS GC0308 |
|
Pixel
|
0.3 Mega Pixel
|
|
Most effective pixels
|
648 x 488
|
|
Pixel Size
|
3.4μm x 3.4μm
|
|
Compression format
|
YUY2 ONLY
|
|
Resolution & Frame rate
|
640x480@30fps;
352x288@30fps;
320x240@30fps;
176x144@30fps;
160x120@30fps;
|
|
Shutter Type
|
Electronic rolling shutter
|
|
Focus type
|
Fixed focus
|
|
S/N ratio
|
TdB
|
|
Dynamic range
|
TdB
|
|
Sensitivity
|
3300mV/Lux-sec
|
|
Interface type
|
USB2.0
|
|
Adjustable parameter
|
Brightness/Contrast/Color saturation/Hue/Definition/Gamma
|
|
Audio frequency
|
Optional
|
|
Power supply
|
USB BUS POWER
|
|
Power consumption
|
DC 5V, 70mW
|
|
Main chip
|
DSP/SENSOR/FLASH
|
|
Auto Exposure Control (AEC)
|
NOT Support
|
|
Auto White Balance (AEB)
|
NOT Support
|
|
Auto Gain Control (AGC)
|
NOT Support
|
|
Storage temperature
|
-10~60℃
|
|
Operating temperature
|
-30~80℃
|
|
USB cable length
|
Default
|
|
Support OS
|
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
