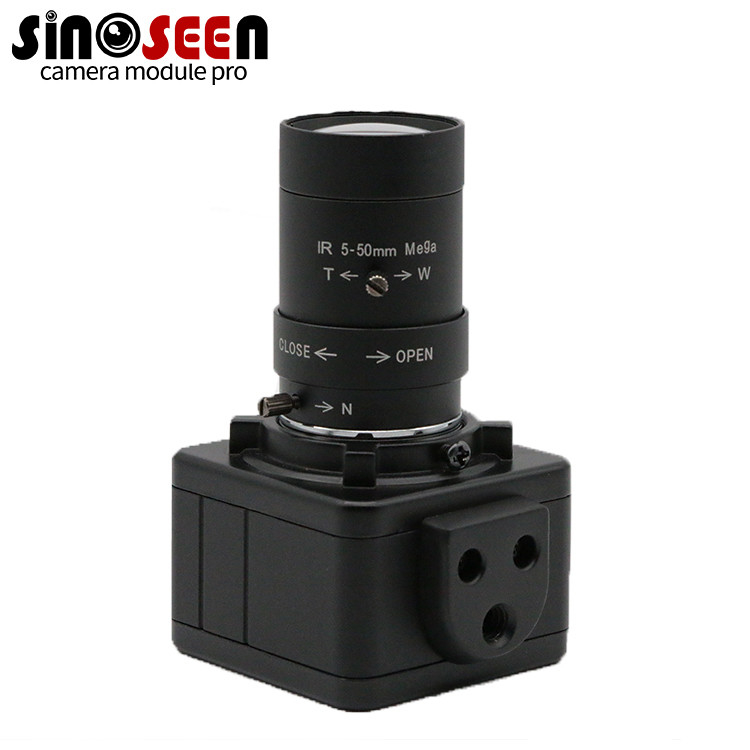

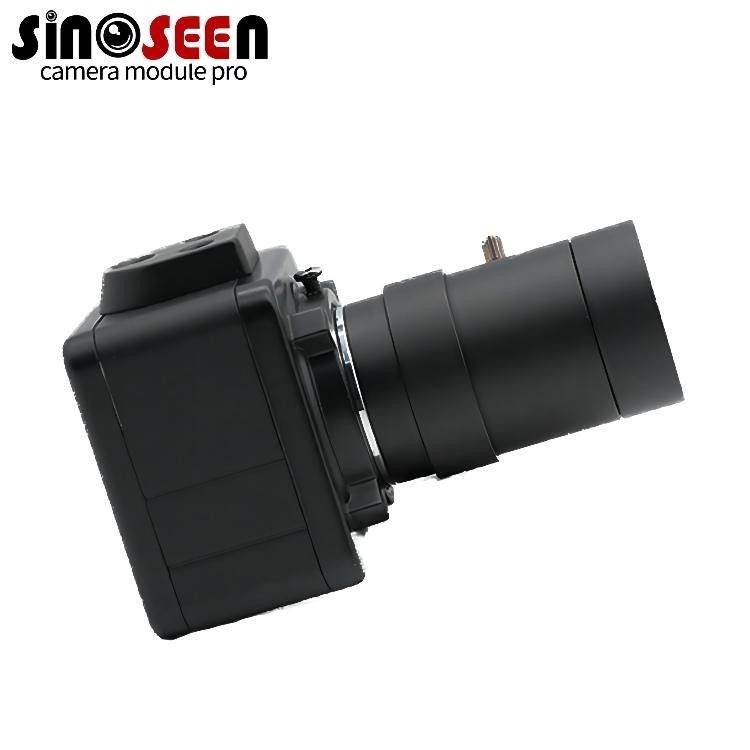

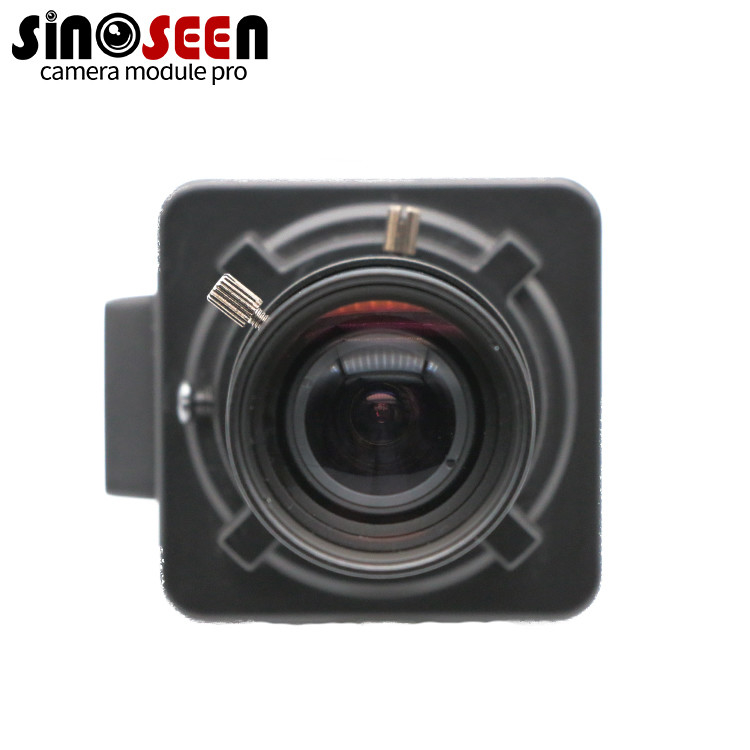

Sony IMX577 FHD / HDR 4K USB Sensor Camera Module For Video Conferencing
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-WK577-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 12mp Camera Module | Sensor: | IMX577 |
|---|---|---|---|
| Resolution: | 12MP 3840(H)X2880(V) | Dimensions: | (customizable) |
| Unit Cell Size: | 1.55 Um (H) X 1.55 Um (V) | Focus Type: | Fixed Focus |
| Interface: | USB BUS POWER | Feature: | FHD |
| Highlight: | HDR 4K USB Camera Module,IMX577 Sensor Camera Module,FHD Sensor Camera Module |
||
Product Description
Sony IMX577sensor FHD/HDR 4K USB Camera Module for Video Conferencing
HDR 4K USB Camera Module
This is a high-end camera module with Sony IMX577 sensor. 12 million pixels, high frame rate, high resolution, the interface is USB2.0, and compatible with USB3.0. And this product has low power consumption, which is a very good feature. It can be used in surveillance, such as security surveillance cameras, 360 panoramic driving recorders, consumer cameras, high-definition video, drones, sports DV and other imaging fields.
| Effective Pixels | 3840(H)X2880(V) |
| Image Sensor |
(Type 1/2.3)12.3 Mega-pixel CMOS
|
| Sensor Type | Sony IMX577 |
| Chip size | 7.564 mm (H) × 5.476 mm (V) |
|
Substrate material
|
Silicon
|
|
operating temperature
|
0～60℃
|
|
storage temperature
|
-20～80℃
|
|
Input frequency range
|
27.0 MHz
|
| Dimensions |
Customizable |
