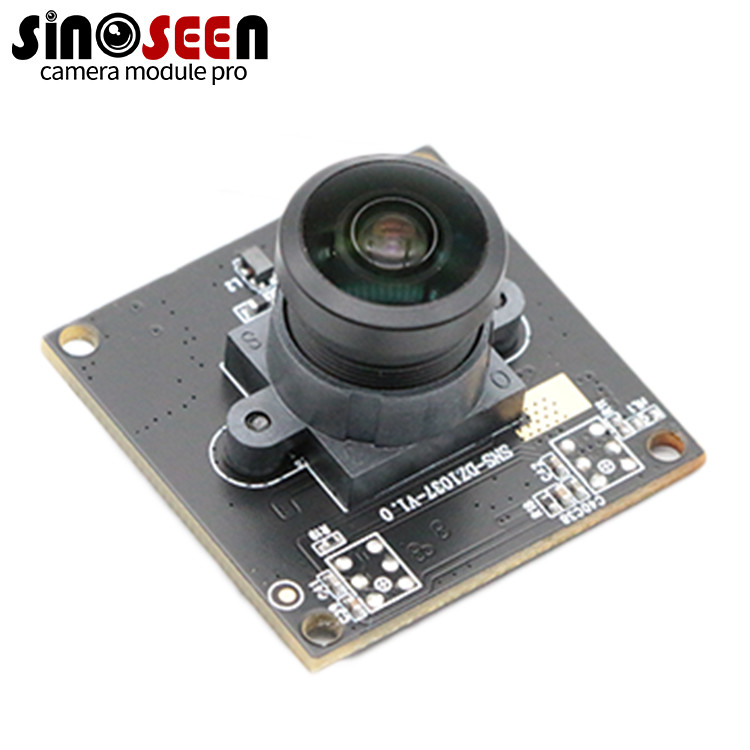

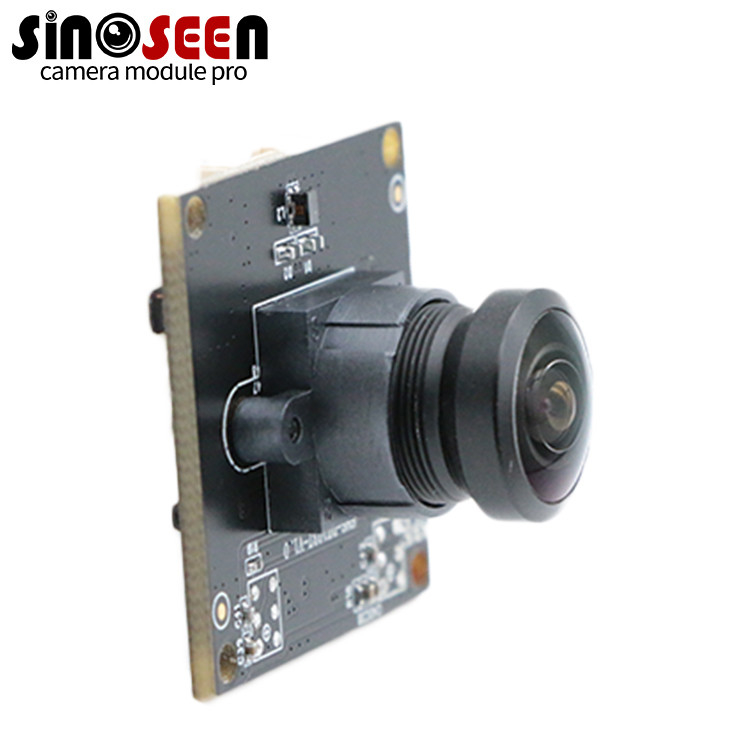

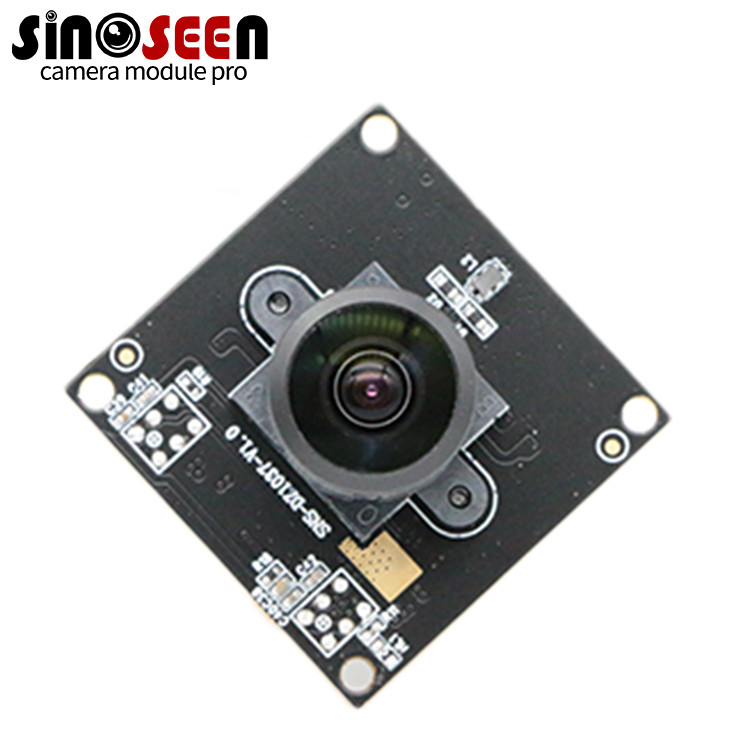

High Temperature OV2718 Sensor USB Camera Module HDR 2MP Face Recognition
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1037-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2.9" Omnivision OV2718 |
|---|---|---|---|
| Resolution: | 2MP 1920x1080 | Dimensions: | Customizable |
| Lens FOV: | 160°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB | Feature: | HDR |
| High Light: | Face Recognition USB Camera Module,HDR 2MP USB Camera Module,OV2718 Face Recognition Camera Module |
||
Product Description
ov2718 sensor high temperature resistant HDR wide-angle lens 2mp face recognition usb camera module
high dynamic range usb camera module
This is a color CMOS1080p module with high dynamic range and high definition. This module supports image size: 1920x1080, VGA, QVGA and any crop size, with high dynamic range, high sensitivity, low power consumption and so on. It can be used in security and surveillance cameras, of course it is used in the high-end 1080p security market. If you want to customize this mod, please contact us~
Specification
|
Module No |
SNS-DZ1037-V1.0 |
|
Pixel Size |
2.8μm x 2.8μm |
|
Effective Pixels |
1920×1080 |
|
Video output |
Raw Bayer10bit/8bit |
|
Active Array Size Video Rate |
1080P@30FPS |
|
Image Sensor |
1/2.9" |
|
Sensor Type |
Omnivision OV2718 |
|
Lens view |
FOV160°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
-40～80℃ |
|
Storage temperature |
-30～85℃ |
|
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Camera module customization process
1 According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right sensor+ lens solution, and then design the product PCB or FPC according to the structural requirements.
2 examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
