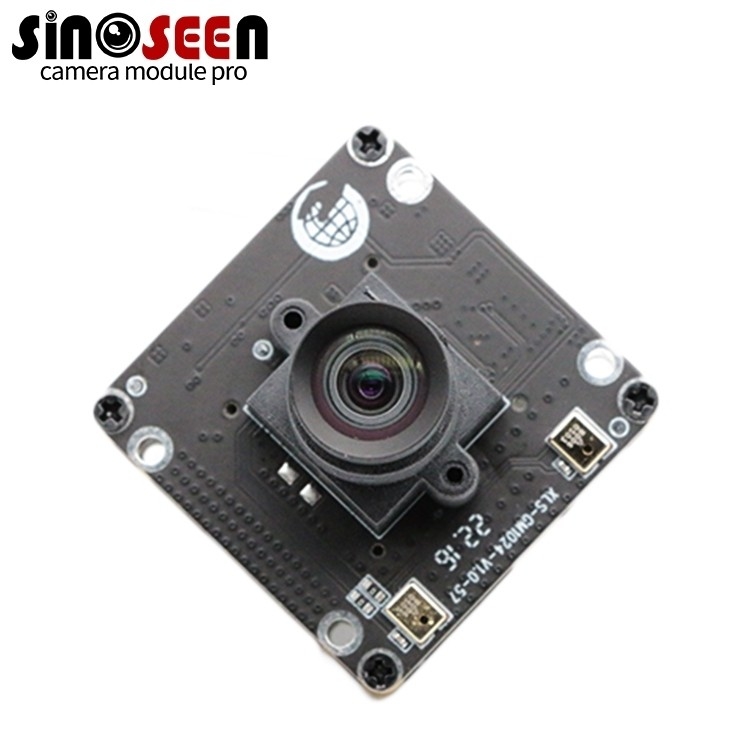

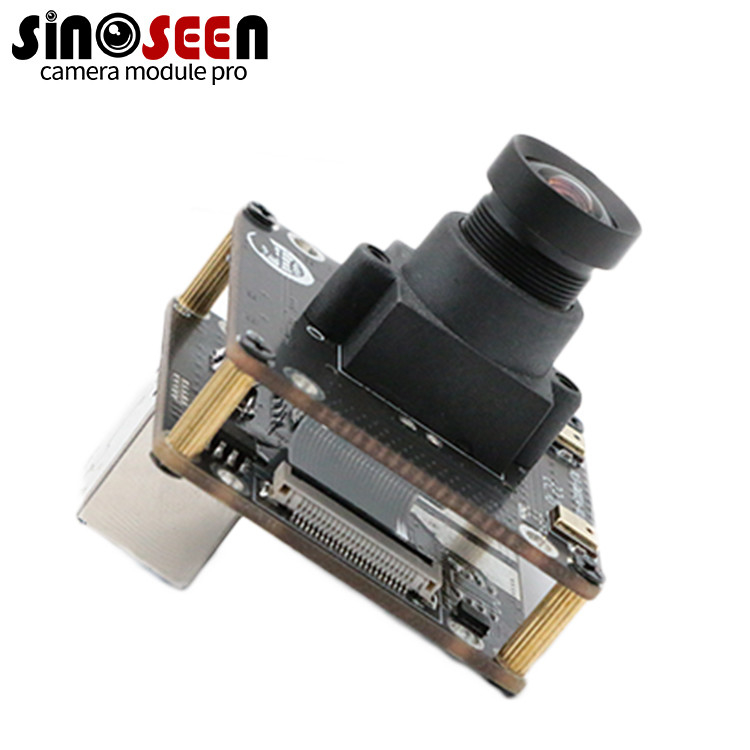

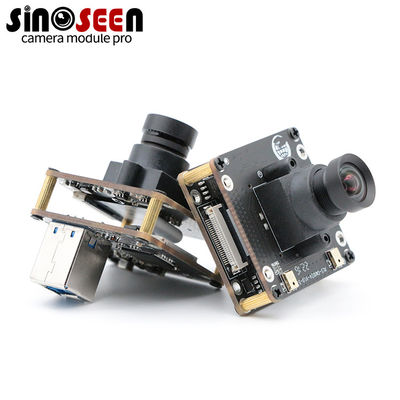

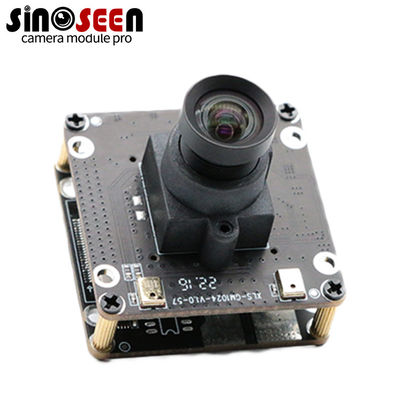

IMX377 CMOS 4k FF Two Microphone USB 3.0 Camera Module For Security Monitoring
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM1024-V1.0-57 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 12mp Camera Module | Sensor: | IMX577/377 |
|---|---|---|---|
| Resolution: | 12MP 4072 (H) X3064 (V) | Dimensions: | (customizable) |
| Unit Cell Size: | 1.55 Um (H) X 1.55 Um (V) | Focus Type: | Fixed Focus |
| Interface: | USB3.0 | Feature: | FHD |
| High Light: | IMX377 USB 3.0 Camera Module,Security Monitoring USB 3.0 Camera Module,Two Microphone USB Camera Module |
||
Product Description
custom sony imx377 cmos 4k ff two microphone usb3.0 camera module for security monitoring
camera module 4K usb3.0 camera module
This is a high-end camera module with Sony IMX377 sensor. 12 million high-definition pixels, 30FPS high frame rate, high resolution, and this product has low power consumption. It can be used in surveillance, such as security surveillance cameras, 360 panoramic driving recorders, consumer cameras, high-definition video, drones, sports DV and other imaging fields.
Specification
|
Effective Pixels |
4072 (H) x3064 (V) |
|
Image Sensor |
(Type 1/2.3)12.3 Mega-pixel CMOS |
|
Sensor Type |
Sony IMX577 |
|
Chip size |
7.564 mm (H) × 5.476 mm (V) |
|
Substrate material |
Silicon |
|
operating temperature |
-20 to +75 ˚C |
|
storage temperature |
-30 to +80 ˚C |
|
Input frequency range |
27.0 MHz |
|
Dimensions |
Customizable |
