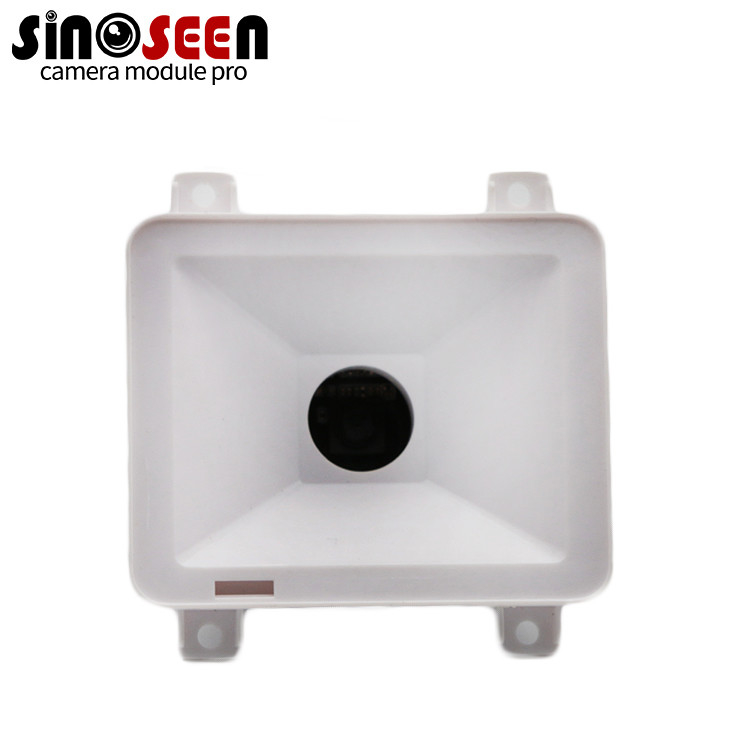

1D 2D QR Code / Barcode Scanner Module Embedded Vending Machine
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | WH-1036 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Sensor: | Image Type,CMOS Sensor | Acquisition Speed: | 1/30 Fps(E21W) 1/120fps(E21W1) |
|---|---|---|---|
| FOV: | Diagonal 84°,Level 72°,Vertical 54° | Precision: | ≥5mil |
| Print Contrast: | 20% Minimum Reflectance | Input Voltage: | 3-3.6V Or 3.6-16V |
| High Light: | RoHS Barcode Scanner Module,2D Barcode Scanner Module,1D QR Code Scanner Module |
||
Product Description
1D 2D barcode scanner module embedded vending machine QR code scanner
| Acquisition Performance | |
| Sensor | Image Type,CMOS Sensor |
| Acquisition Speed | 1/30 fps(E21W) 1/120fps(E21W1) |
| FOV | Diagonal 84°,Level 72°,Vertical 54° |
| Reading Performance | |
| Precision | ≥5mil |
| Depth of Field | Symbologies |
| Code 128 10mil 18bytes (Paper) | |
| Code 128 18bytes (Screen) | |
| QR 10mil 160bytes (Paper) | |
| DM 15mil 100bytes (Paper) | |
| QR 18bytes (Screen) | |
| Code 128 10mil 18bytes (Paper) | |
| Symbologies | 2D:QR Code, Data Matrix, PDF417,Han Xin Code,Dotcode,OCR,etc. |
| 1D:UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Codabar, MSI/MSI PLESSEY, GS1
DataBar,etc. |
|
| Print Contrast | 20% minimum reflectance |
| Environmental Parameter | |
| Operating Temperature | -30℃ ~ 70℃ |
| Storage Temperature | -40℃ ~ 80℃ |
| Humidity | 5% ~ 95% RH (non-condensing) |
| Ambient Light | Max.100,000 Lux |
| Electrical Parameter | |
| Input Voltage | 3-3.6V or 3.6-16V |
| Operating Current | <190mA(3.3V Input),<150mA(5V Input) |
| Standby Current | < 5mA |
