OEM 8MP 4K FHD USB Camera Module IMX415 Sensor 3X 5X Optical Zoom
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM1006-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 8mp Camera Module | Sensor: | 1/2.8'' SONY IMX415 CMOS |
|---|---|---|---|
| Resolution: | 8MP 3864(H) X 2192(V) | Dimensions: | (customizable) |
| Pixel Size: | 1.45µm X 1.45µm | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | HDR |
| High Light: | 8MP Camera Module HDR,3X USB Camera Module,5X OEM Camera Module |
||
Product Description

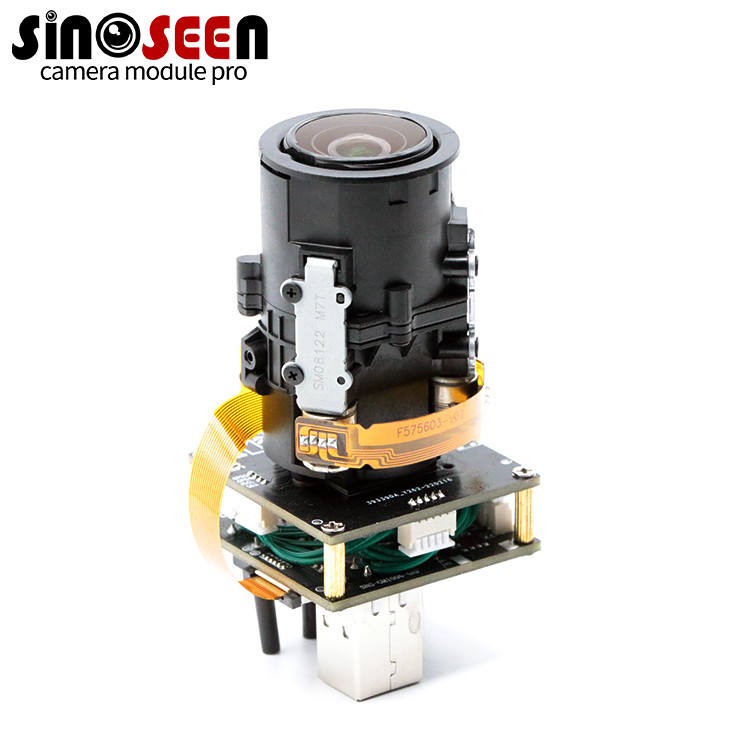

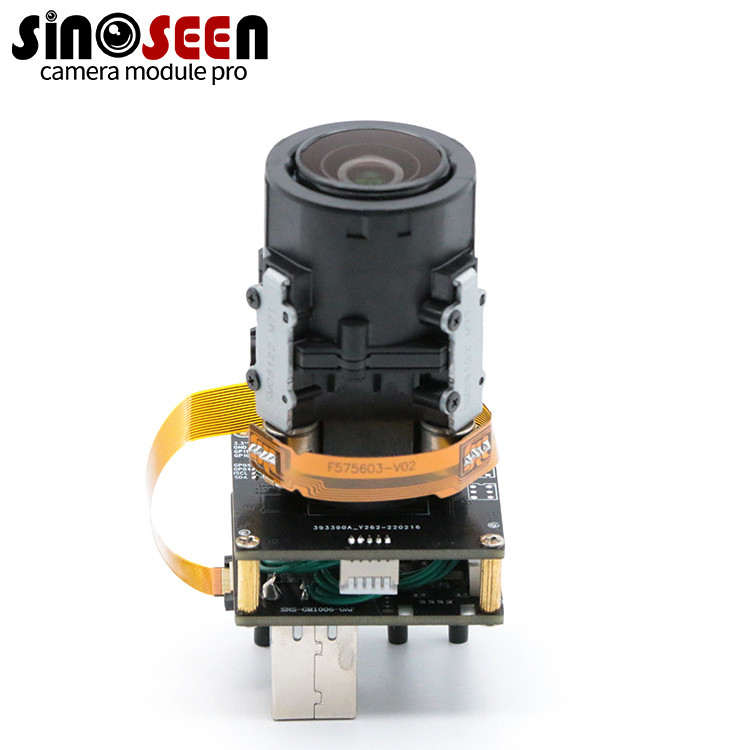

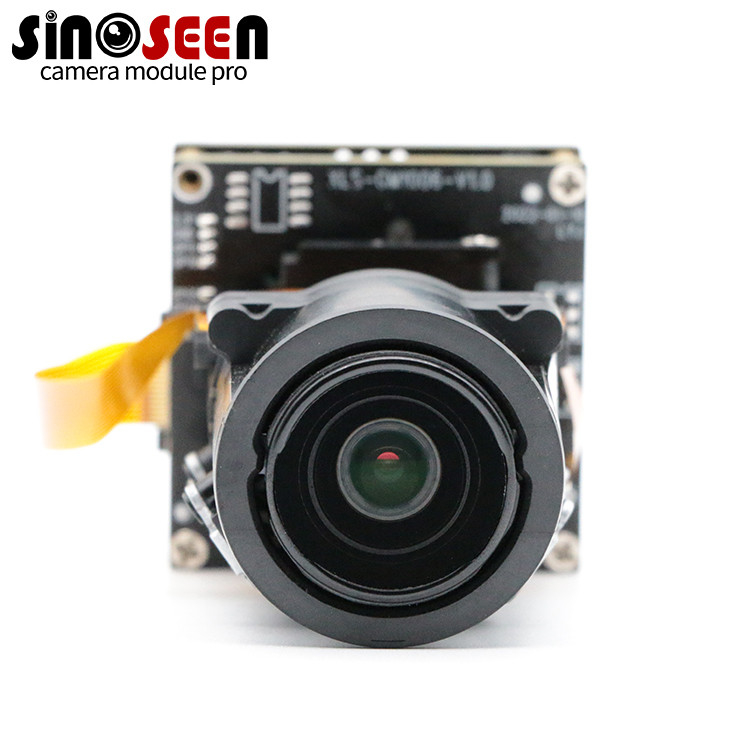

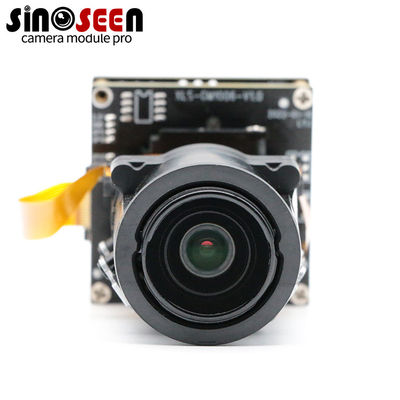

OEM 8MP 4K FHD USB Camera Module IMX415 Sensor 3X 5X Optical Zoom
camera module optical zoom
This is an 8MP USB camera module with IMX415 sensor and 3X/5X optical zoom is a high quality camera module designed for a variety of applications including video conferencing, security systems and industrial automation.
4K resolution and advanced image processing capabilities. Enables this camera module to capture high quality images and video OS with low noise and excellent color reproduction.
The camera module also features 3x or 5x optical zoom, allowing the user to adjust the focus of the lens and zoom in on a specific area of interest. This feature is especially useful in applications that require close-up observation, such as surveillance systems or medical imaging.
In addition, the camera module supports USB connectivity for easy integration into various systems and devices. With its compact size and high-quality imaging capabilities, it is an excellent choice for a wide range of applications.
| Model No | SNS-GM1006-V1.0 |
| Sensor | 1/2.8’’ SONY IMX415 CMOS |
| Pixel | 8 Mega Pixel |
| Most effective pixels | 3840(H) x 2160(V) |
| Pixel Size | 1.45µm x 1.45µm |
| Image area | 3864(H) x 2192(V) |
| Compression format | MJPEG / YUV2 (YUYV) |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| Chroma | Color, RGB |
| Clock Frequency | 6 to 72 MHz |
| Microphones | Built-in |
| Interface type | USB2.0 |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Lens | Focal length: 3.6mm |
| Lens construction: 5E+IR | |
| D FOV: 100 degree | |
| Thread Size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Operating Voltage | DC 5V |
| Operating Current | 260mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Dimension | Customizable |
| Storage temperature | -40˚C to 85 ˚C |
| Operating temperature | -30˚C to 85 ˚C |
| USB cable length | Default |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
