Two Microphones USB3.0 12mp Camera Module IMX377 For Security Surveillance
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM1024-V1.0-57 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 12mp Camera Module | Sensor: | IMX577/377 |
|---|---|---|---|
| Resolution: | 12MP 4072 (H) X3064 (V) | Dimensions: | (customizable) |
| Unit Cell Size: | 1.55 Um (H) X 1.55 Um (V) | Focus Type: | Fixed Focus |
| Interface: | USB3.0 | Feature: | FHD |
| High Light: | Two Microphones 12mp Camera Module,USB3.0 12mp Camera Module,IMX377 USB Camera Module |
||
Product Description

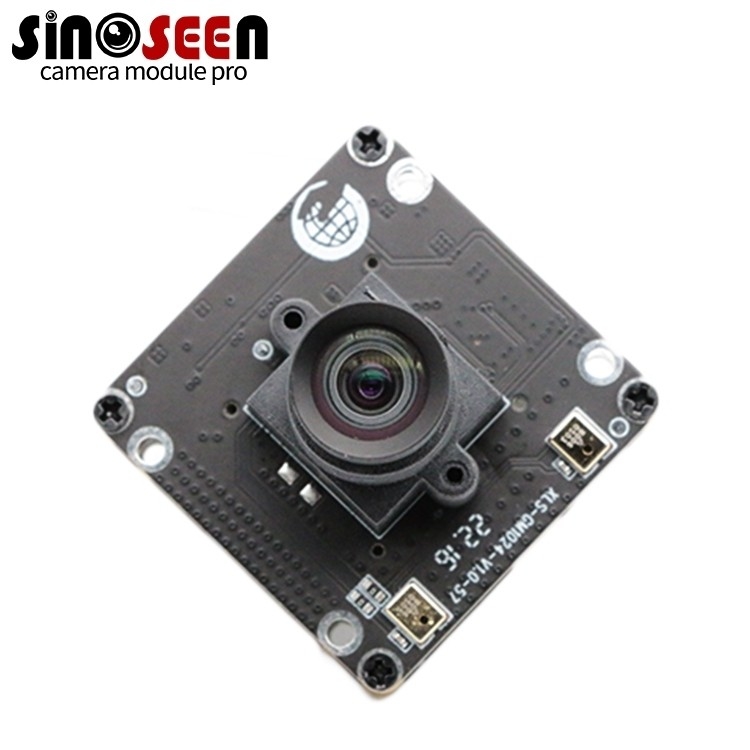

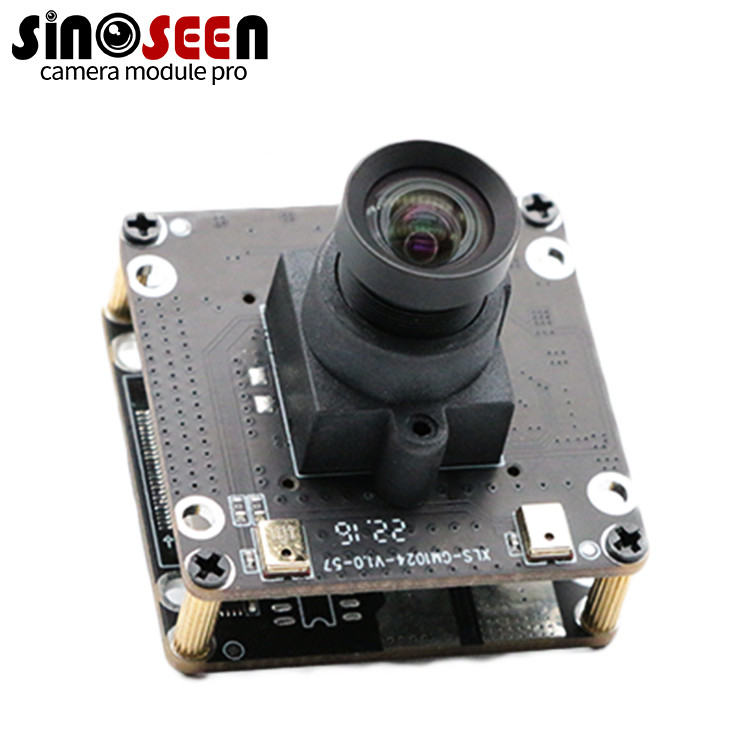

USB 3.0 camera module IMX377 CMOS 4k FF with two microphones for security surveillance
camera module 4K usb3.0 camera module
This is a USB 3.0 high-end camera module with 4K full-frame (FF) resolution, mainly used in the security monitoring industry. It is capable of capturing high-quality images and videos with excellent color accuracy and low noise levels.
The module is equipped with two microphones, enabling it to capture audio and video clips. This is especially useful in security surveillance applications, where audio can provide valuable context to video footage.
High field data transfer rates are provided using the USB 3.0 interface, allowing smooth and uninterrupted video streaming. Due to its compact size and standardized internet access, the module is designed to be easily integrated into existing surveillance systems.
Specification
|
Effective Pixels |
4072 (H) x3064 (V) |
|
Image Sensor |
(Type 1/2.3)12.3 Mega-pixel CMOS |
|
Sensor Type |
Sony IMX577 |
|
Chip size |
7.564 mm (H) × 5.476 mm (V) |
|
Substrate material |
Silicon |
|
operating temperature |
-20 to +75 ˚C |
|
storage temperature |
-30 to +80 ˚C |
|
Input frequency range |
27.0 MHz |
|
Dimensions |
Customizable |
