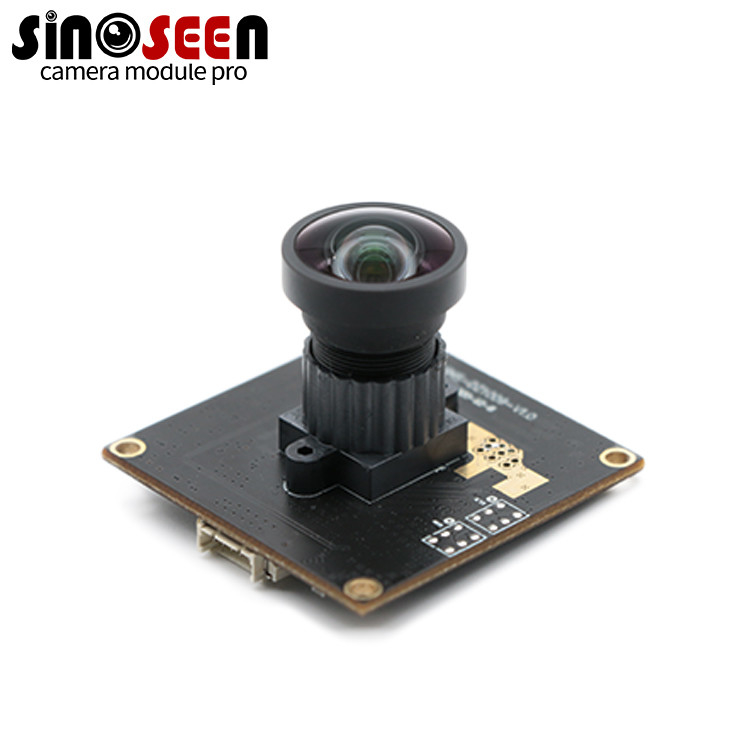

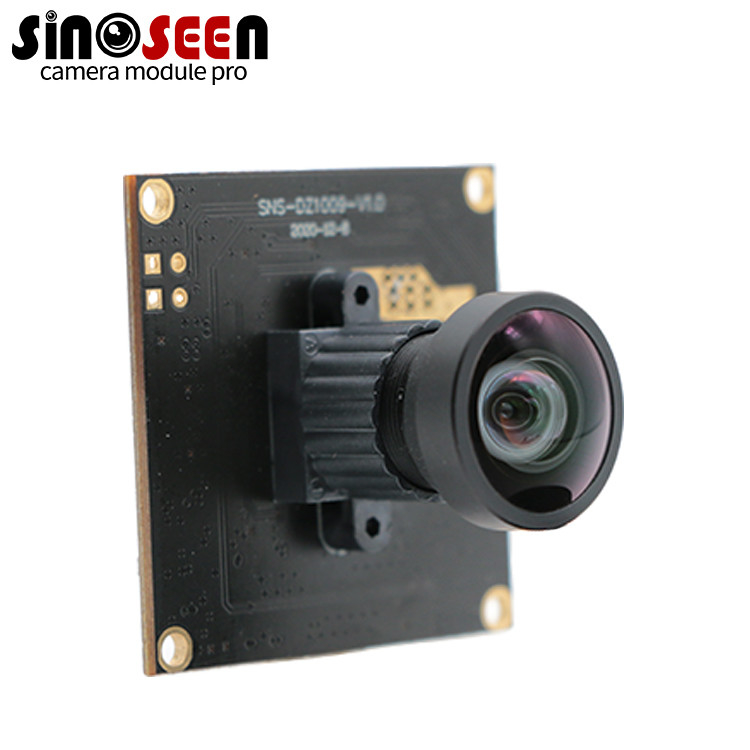

Imx317 4k FHD 8mp Usb Camera Module For Security Surveillance
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1009-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2.5"SONY IMX317 |
|---|---|---|---|
| Resolution: | 8MP (3840*2160) | Dimensions: | 38mmx38mm,(customizable) |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | 4K |
| High Light: | Imx317 8mp Camera Module,RoHS Approved Usb Camera Module,Security Surveillance 8mp Camera Module |
||
Product Description
OEM 8MP SONY IMX317 4K FHD USB Camera Module for Security Surveillance Face Recognition
8MP 4K 30FPS USB2.0 Camera Module
This is an 8 megapixel (MP) USB camera module designed for security and surveillance applications. It features 4K Full HD resolution for crisp, detailed images and integrates easily with a variety of systems using the USB interface.
The module features advanced image processing capabilities, including automatic exposure, white balance, and noise reduction, ensuring high-quality images even in low-light conditions. It also has a wide dynamic range, which enables it to capture images with a high level of detail in both bright and dark areas.
The module's compact design and low power consumption make it suitable for a wide range of applications including security cameras, video conferencing systems, A.ND industrial automation. It is also easy to install and use, with plug-and-play capabilities and combinations with various operating systems.
Specification:FHD Camera Module
|
Model No |
SNS-DZ1009-V1.0 |
|
Sensor |
1/2.5’’ SONY IMX317 CMOS |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3840(H) x 2160(V) |
|
Pixel Size |
1.62µm x 1.62µm |
|
Image area |
3864um (H) x 2196um (V) |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
Chroma |
Color, RGB |
|
Clock Frequency |
6 to 72 MHz |
|
Microphones |
Built-in |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
|
|
Lens construction: 5E+IR |
|
H FOV: 90 degree |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Operating Voltage |
DC 5V |
|
Operating Current |
260mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38MMx38MM (32MMx32MM) |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
|
WinXP/Vista/Win7/Win8/Win10 |
