• Color Image WDR IMX291 2MP USB Camera Module Full Hd For Industrial Testing
  • Color Image WDR IMX291 2MP USB Camera Module Full Hd For Industrial Testing
  • Color Image WDR IMX291 2MP USB Camera Module Full Hd For Industrial Testing
  • Color Image WDR IMX291 2MP USB Camera Module Full Hd For Industrial Testing
Color Image WDR IMX291 2MP USB Camera Module Full Hd For Industrial Testing

Color Image WDR IMX291 2MP USB Camera Module Full Hd For Industrial Testing

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-USB291-V1.1

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/2.8" SONY IMX291 CMOS
Resolution: 2MP 1945(H) X 1109(V) Dimensions: 38mmx38mm(customizable)
Lens FOV: 90°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: Starvis
High Light:

Color Image USB Camera Module

,

WDR 2MP Camera Module

,

Industrial Testing 2MP Camera Module

Product Description

1080p HD Industrial IMX291 Camera Module WDR Night Vision USB Interface

WDR Starlight IMX291 Night Vision 1080p HD Industrial Starvis 2MP USB Camera Module



IMX291 Camera Module

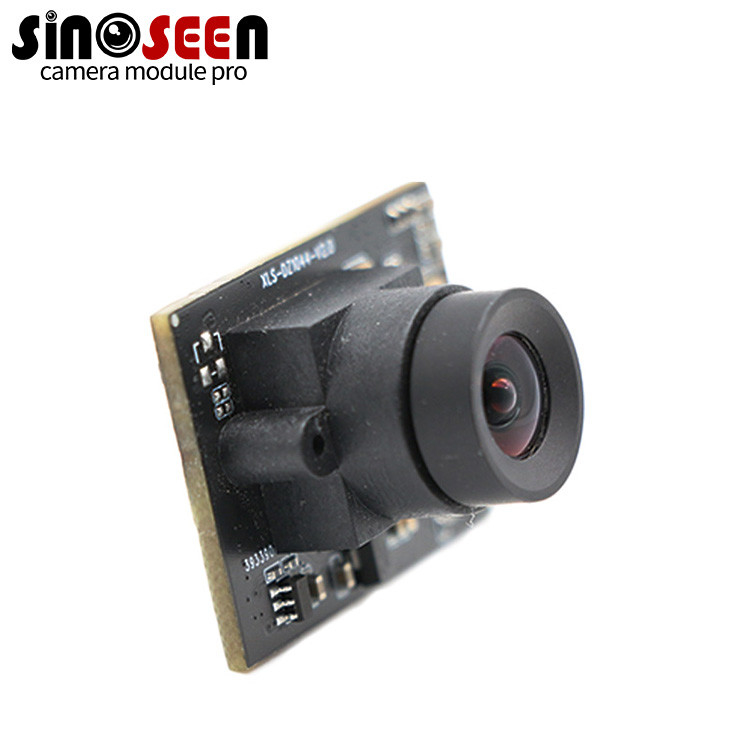

This is a 2mp USB Camera Module that uses the Sony IMX291 image sensor to capture high quality color images with wide dynamic range (WDR). The camera module has a USB interface, which is convenient to connect with devices such as computers.

The camera module can capture images with a resolution of 1920 x 1080 pixels (Full HD) and can transmit data at up to 30 frames per second. It also features Wide Dynamic Range (WDR), which captures images with high contrast and detail in both bright and dark areas of a scene.

The camera module is suitable for a variety of applications including surveillance, industrial inspection, robotics, and computer vision. Its compact size and USB interface make it easy to integrate into various systems and devices.



Specification

Model No

SNS-USB291-V1.1

Sensor

1/2.8’’ SONY IMX291 CMOS

Pixel

2 Mega Pixel

Most effective pixels

1945(H) x 1109(V)

Pixel Size

2.9µm x 2.9µm

Chroma

Color

Compression format

MJPEG / YUV2 (YUYV)

Resolution & Frame rate

See above

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus

Microphone

Built-in

Dynamic range

72dB

Sensitivity

>= 2000mV

Interface type

USB2.0 high speed

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

Lens

Focal length: 3.6MM



Lens Size: 1/2.8 inch



FOV: 90°



Thread Size: M12*P0.5

Audio frequency

Optional

Power supply

USB BUS POWER

Power consumption

DC 5V, 150mA

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Support

Dimension

38mm*38mm (compatible with 32mm*32mm)

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

Color Image WDR IMX291 2MP USB Camera Module Full Hd For Industrial Testing 0
Color Image WDR IMX291 2MP USB Camera Module Full Hd For Industrial Testing 1



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





FAQ:


Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.


Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.


Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.


Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.


Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
