Factory Price Fixed Focus 30FPS 2MP Usb Camera Module 1080p With GC2053 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-2MP-GC2053-iio |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 2MP Camera Module | Sensor: | 1/2.7'' Omnivision OV2735 CMOS |
|---|---|---|---|
| Resolution: | 1920(H) X 1080(V) | Dimensions: | (customizable) |
| Lens FOV: | 95°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | HDR |
| High Light: | 30FPS 2MP Usb Camera Module,GC2053 Usb Camera Module 1080p,USB2.0 2MP Camera Module |
||
Product Description

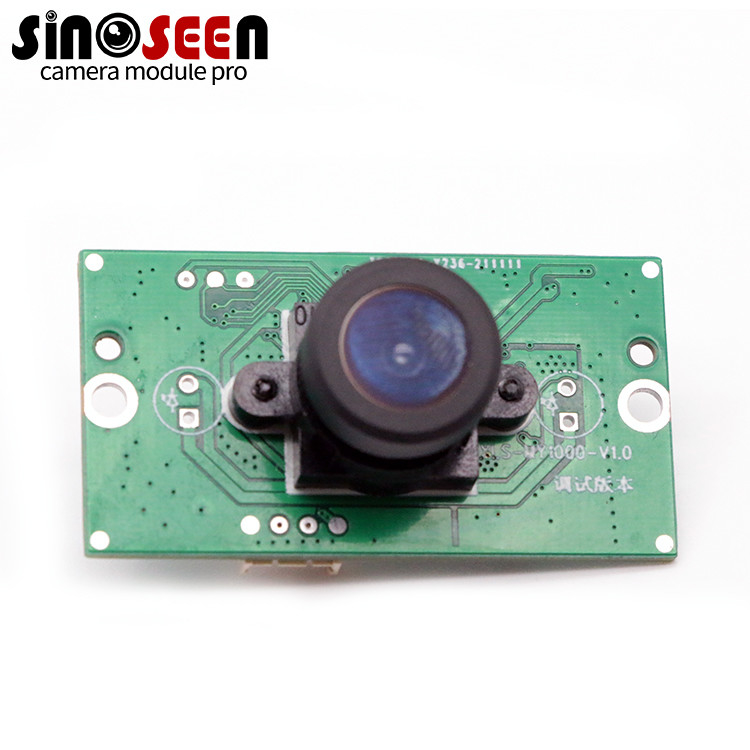

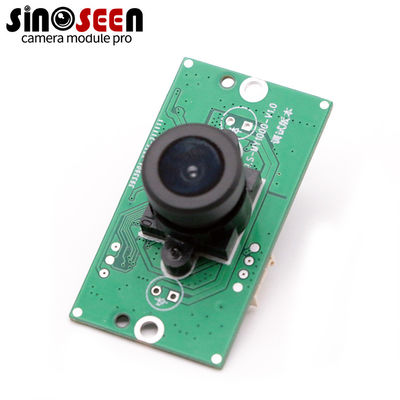

1080p Fixed Focus 30FPS 2MP Usb Camera Module With GC2053 Sensor
Factory Price Fixed Focus 30FPS 2MP Usb Camera Module 1080p With GC2053 Sensor
GC2053 Camera Module
This fixed focus 30FPS 2MP USB camera module is a camera module designed for a variety of applications. The camera module uses a fixed-focus lens, which means it does not have the ability to adjust the focal length of the lens.
The camera module has a resolution of 2 megapixels and is capable of capturing video in 1080p resolution at a frame rate of 30 frames per second. The GC2053 sensor used in the camera module is a commonly used sensor in many camera applications and provides good image quality in various lighting conditions.
The camera module can be used in a variety of applications such as video conferencing, security and surveillance, and industrial automation. Fixed focal length lenses may limit their use in some applications where the ability to adjust the focal length is important, but for applications where a fixed focal length is sufficient, this camera module may be a cost-effective choice.
Specification
|
Model No |
SNS-2MP-GC2053-iio |
|
Sensor |
1/2.7’’ Omnivision OV2735 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image Area |
5808µm x 3288µm |
|
Compression format |
YUV2 / MJPG |
|
Resolution |
See above |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
3700 mV/lux-sec |
|
Interface type |
USB2.0 |
|
|
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
IR Cut filter: 850nm |
|
|
FOV: 95° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38x38MM |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 55°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
