High Performance Usb Camera Module With GC1054 Sensor For Action Cameras

High Performance Usb Camera Module With GC1054 Sensor For Action Cameras

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-1MP-GC1054-typ

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 1MP Camera Module Sensor: 1/4 GC1054
Resolution: 1280(H) X 720(V) Dimensions: (customizable)
Lens FOV: 95°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: Low Power Consumption
High Light:

GC1054 Usb Camera Module


GC1054 Sensor Action Cameras Module


10bit ADC Usb Camera Module

Product Description

720p Usb Camera Module Low Power Consumption With GC1054 Sensor

Low Power Consumption 1/4 Inch 720p Usb Camera Module With GC1054 Sensor


Usb Camera Module GC1054 Sensor

This is a camera module specially designed for action cameras. The camera module is optimized for high-performance video capture and features the GC1054 sensor, which is commonly used in action camera applications.

The camera module has a resolution of 2 megapixels and is capable of capturing video in 1080p resolution at a frame rate of 60 frames per second. This high frame rate makes it ideal for capturing fast action and movement.

The GC1054 sensor used in the camera module provides good image quality in various lighting conditions. Its small size and low power consumption make it ideal for compact battery-operated devices such as action cameras.

The camera module can be used in a range of applications beyond action cameras, such as drone cameras or other applications requiring high-performance video capture in a compact form factor. The USB interface makes it easy to integrate the camera module into existing systems, and its small size allows it to be easily installed in a variety of applications.

Specification: 720P USB Camera Module
Parameter Typical value
Optical Format 1/4inch
Pixel Size 3.0um*3.0um
Active pixel array 1280*720
ADC resolution 10bit ADC
Max Frame rate 30fps@36MHz,DCLK
Power Supply DVDD:1.4-1.6(Typ.1.5V)
Power Consumption 110mW@30fps,720p
SNR 41.4dB
Dart Current 200e-/s(60)
Sensitivity 18000e-/lux-sec
Dynamic range 70.7dB
Operating temperature -30-80
Stable Image temperature 0-50
Optimal Lens chief ray angle(CRA) 12(linear)
Package type CSP/PLCC
Input clock frequency 6-27MHz

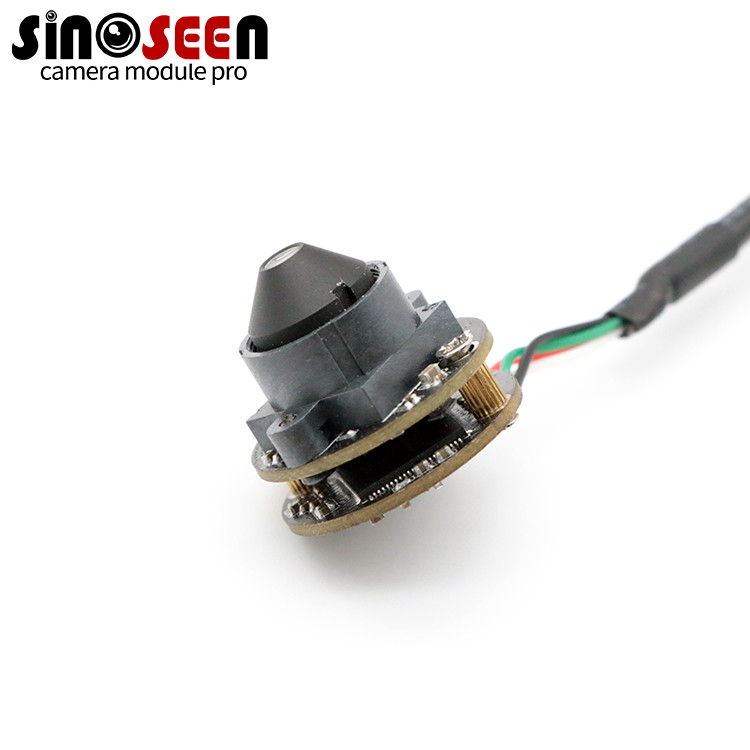

High Performance Usb Camera Module With GC1054 Sensor For Action Cameras 0

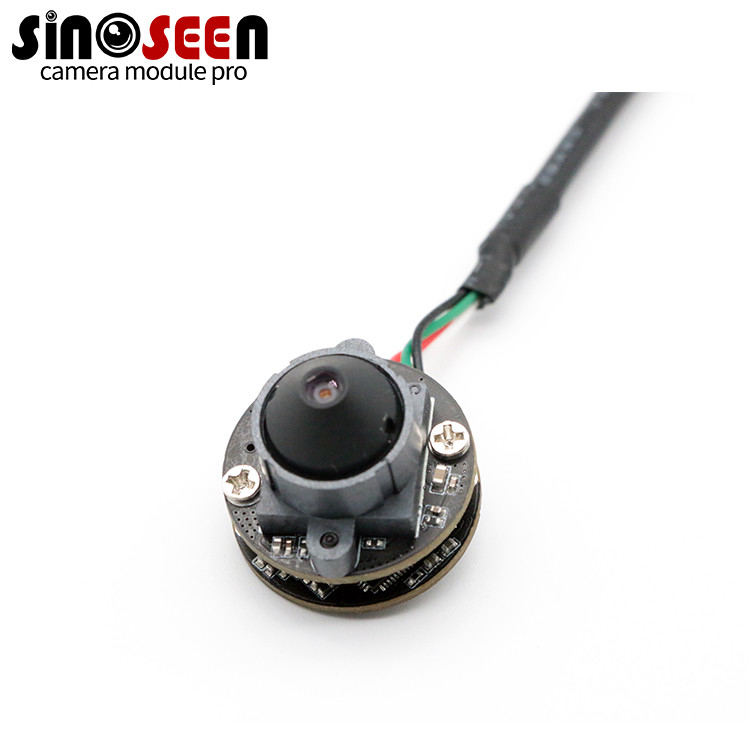

High Performance Usb Camera Module With GC1054 Sensor For Action Cameras 1
