0.3MP USB Camera Module OV7251 Black And White Sensor Global Exposure For Machine Vision
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM1017-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/7.5" Omnivision OV7251 |
|---|---|---|---|
| Resolution: | 0.3MP 640(H) X 480(V) | Dimensions: | 38mmx38mm (compatible With 32mmx32mm) |
| Lens FOV: | 60°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Global Shutter |
| High Light: | 0.3MP USB Camera Module,Machine Vision OV7251 Camera Module,Global Exposure USB Camera Module |
||
Product Description
0.3MP Global Shutter Camera Module OV7251 Sensor For Machine Vision
0.3MP USB Camera Module OV7251 Black And White Sensor Global Exposure For Machine Vision
OV7251 USB Camera Module

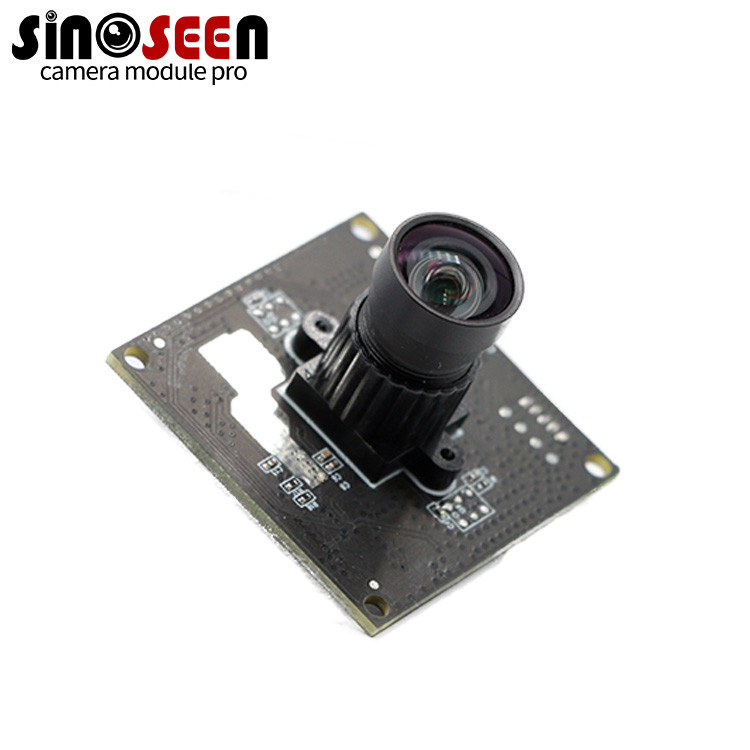

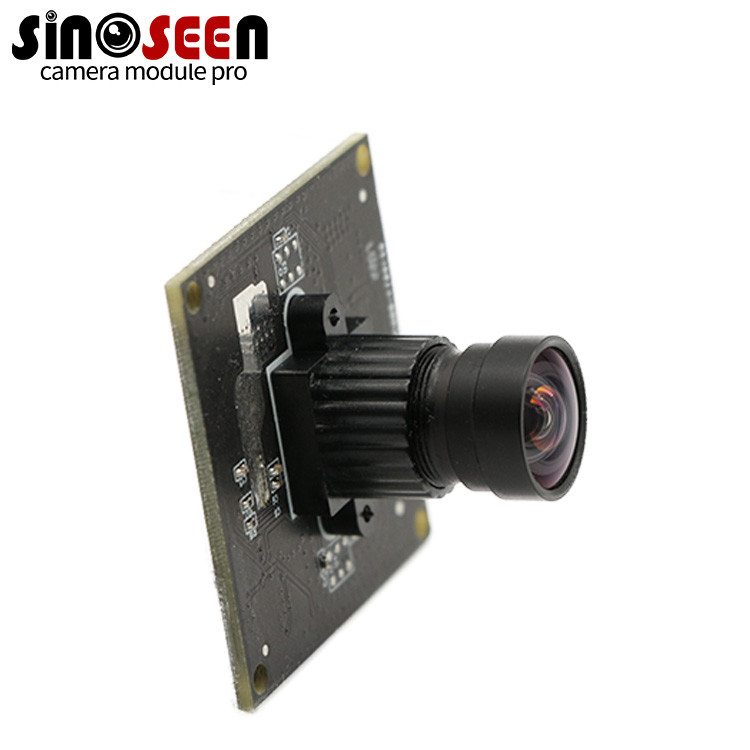

This 0.3MP USB camera module OV7251 is a monochrome sensor camera module designed for machine vision applications. It features global exposure, which means the entire image is exposed at once, allowing fast-moving objects or scenes with varying lighting conditions to be accurately captured.
The camera module has a resolution of 640x480 pixels and is connected to a computer via a USB interface. It is compact and easy to integrate into various systems, making it ideal for industrial automation, robotics, and other applications that require high-speed and high-resolution image capture.
The OV7251 sensor used in this camera module is based on OmniVision's advanced PureCel technology, which provides excellent image quality and low power consumption. Additionally, the sensor's high dynamic range and low-light sensitivity make it ideal for applications that require accurate image capture in challenging lighting conditions.
Specification:Global Exposure camera module
|
Model No |
SNS-GM1017-V1.0 |
|
Sensor |
1/7.5’’ Omnivision OV7251 |
|
Pixel |
0.3 Mega Pixel |
|
Most effective pixels |
640(H) x 480(V), 320(H) x 240(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image area |
1968um(H) x 1488um (V) |
|
Compression format |
MJPG |
|
Resolution & Frame rate |
640x480@120fps; 320x240@200fps |
|
Shutter Type |
Global Shutter |
|
CFA (Chroma) |
Mono, Black/White |
|
Focus type |
Fixed focus |
|
S/N ratio |
38dB |
|
Dynamic range |
69.6dB |
|
Sensitivity |
10800mV / lux-sec |
|
Interface type |
USB2.0 high speed |
|
|
Brightness/Contrast/Color saturation/Hue/Definition//White balance |
|
Lens |
Focal length: 3.6mm |
|
|
Lens Size: 1/4 inch |
|
|
FOV: 60° |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 120mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38mm*38mm (customizable with 32mm*32mm) |
|
Storage temperature |
-30°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
