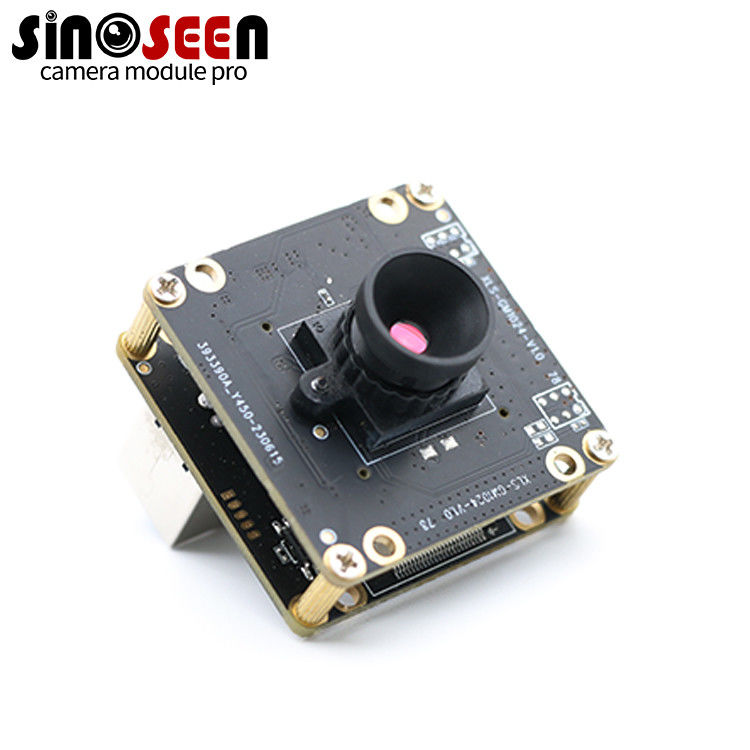

SONY IMX378 Sensor 12MP USB Camera Module High Dynamic Range
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | XLS-M1024-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2.3" |
|---|---|---|---|
| Resolution: | 12MP 4056x3040 | Dimensions: | With Housing Customizable |
| Lens FOV: | 100°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | HDR |
| High Light: | 12MP USB Camera Module,SONY IMX378 Sensor Camera Module,USB Camera Module 4056x3040 |
||
Product Description
SONY IMX378 Sensor 12MP USB Camera Module High Dynamic Range
high dynamic range description
This one with the Sony IMX378 sensor is a 12MP image sensor known for its high-quality imaging capabilities. It is commonly used in camera modules for a variety of applications, including smartphones, action cameras, and industrial imaging systems. A notable feature of this mod is its High Dynamic Range (HDR) capability. HDR imaging enables the sensor to capture a wider range and detail in bright and dark areas of the scene, resulting in a more balanced and visually appealing image. This is especially useful in scenes with challenging lighting conditions, where there can be significant contrast between light and shadow areas. When integrated into a USB camera module, the module enables high-resolution imaging and seamless connection to USB-enabled devices. The USB camera module can be easily connected to a computer, laptop or other devices with a USB port for easy capture and transfer of images or videos. With 12MP resolution, the camera module can capture images with high detail and clarity. This resolution is suitable for applications requiring high-resolution imaging, such as product inspection, microscopy or documentation purposes.
|
Pixel Size
|
1.55μm x 1.55μm
|
|
Effective Pixels
|
4056x3040 |
|
Image Sensor
|
1/2.3"
|
|
Sensor Type
|
SONY IMX378
|
|
Lens View
|
FOV100°(Optional),F/N(Optional)
|
|
TV Distortion
|
<1% (Optional)
|
|
Temperature(Operation)
|
0～60℃
|
|
Temperature(Storage)
|
-20～70℃
|
|
Dimension
|
19.25*8.5mm (Customizable)
|
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current available USB solution
0.3MP
Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675
Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)
Global shutter:OV7251 (1/7.5”,B/W)
High frame rate:200FPS SC031GS(1/6”,B/W)
Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)
1MP
Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760
Small size for endoscope:OV9734 GC1009 HM1091
Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)
Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)
2MP
Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)
1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237
1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)
1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310
1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307
1080P-WDR (30FPS): AR0230 AR0331(300W)
1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290
1080P big size: IMX385
1080P global shutter: OG02B10(color) OG02B1B(B/W)
5MP
500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650
FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)
8MP
800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390
8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)
13MP-16MP
IMX214(13M) IMX258(13M) IMMX298(16M)
USB3.0
IMX335 OV5648 IMX179 IMX307 PS5268
H264
GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
