Place of Origin:
Shenzhen,China
Brand Name:
Sinoseen
Certification:
RoHS
Model Number:
XLS131710-V1.0

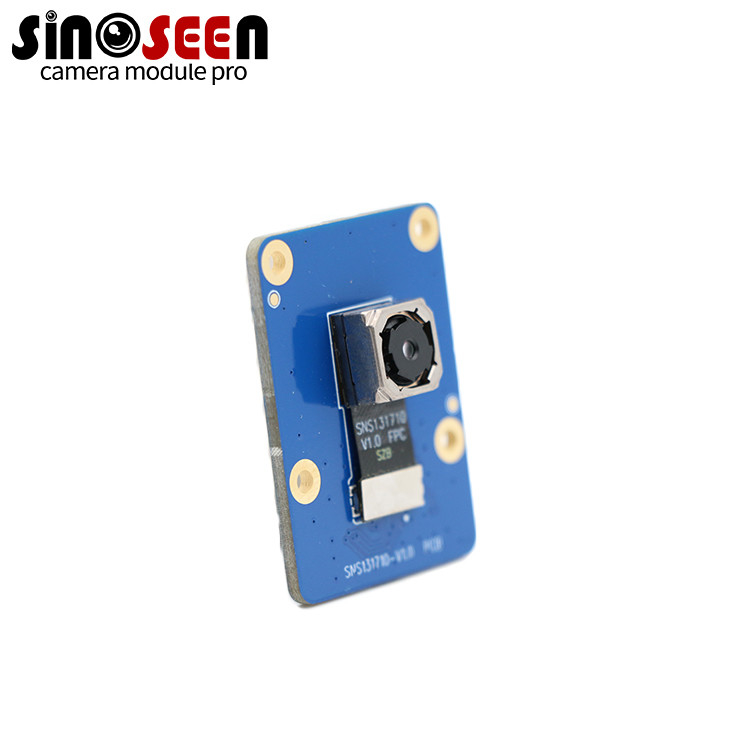

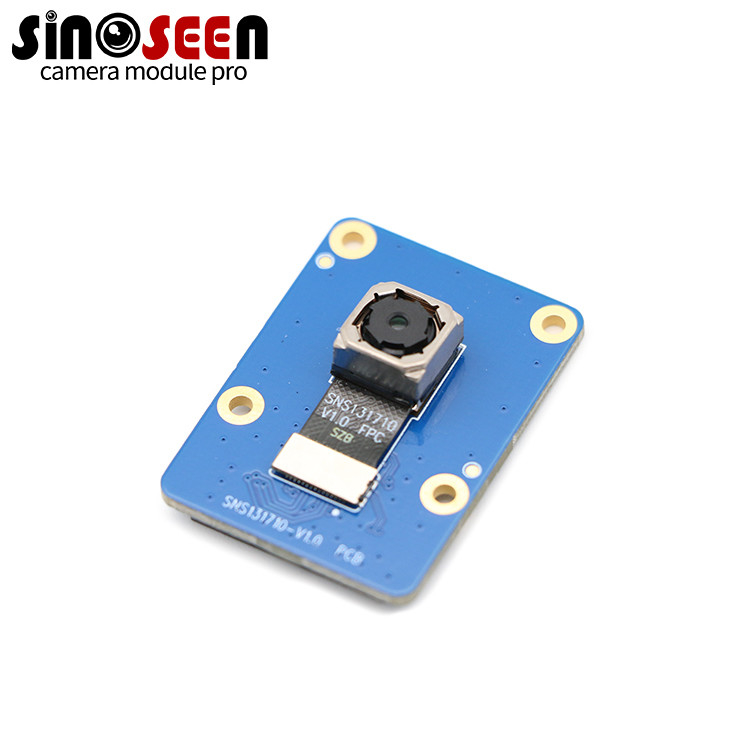

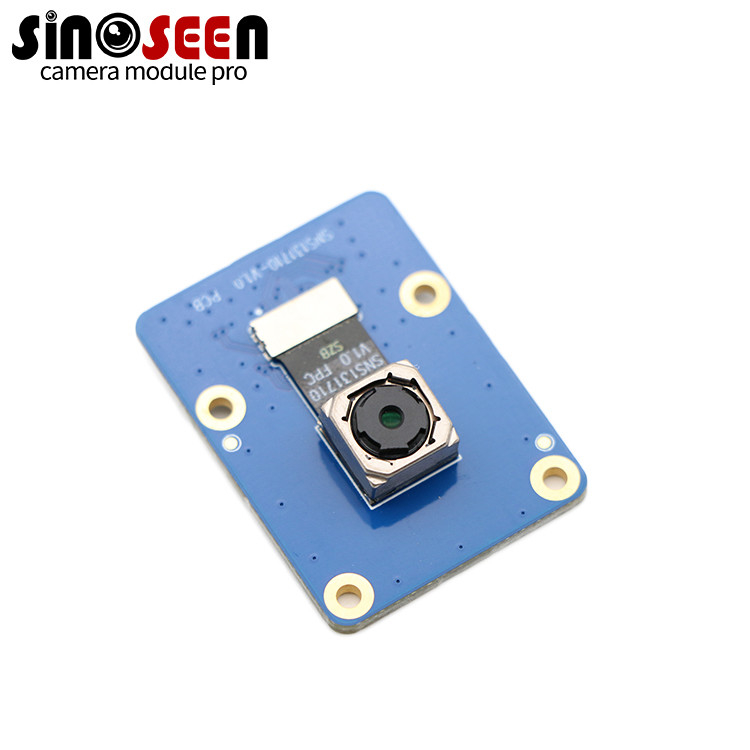

13MP OV13850 Sensor Autofocus Mipi Camera Module For Smartphones
13MP Camera Module OV13850 sensor
This autofocus MIPI camera module is a camera system designed for integration into smartphones and other mobile devices. It uses the OV13850 image sensor developed by OmniVision Technologies with a resolution of 13 megapixels. One of the main features of this camera module is its autofocus capability. Autofocus allows the camera to automatically adjust focus based on the distance between the camera and the subject. This ensures that captured images or videos are crisp and clear, regardless of the subject's distance from the camera. Autofocus is especially useful in smartphone photography, as it allows users to capture sharp and detailed images of both close-ups and distant subjects. The camera module has a 13MP resolution and is capable of capturing high-quality images with rich details and high clarity. Higher resolutions benefit applications that require high-resolution imaging, such as photography, video recording, or scanning documents.
Specification
|
Module No |
XLS131710-V1.0 |
|
Pixel Size |
3.75μm x 3.75μm |
|
Effective Pixels |
13MP 4224(H) x 3136(V) |
|
Video output |
Raw Bayer10bit/8bit |
|
Active Array Size Video Rate |
Full resolution@30FPS,1080P@60FPS |
|
Sensor Type |
Omnivision OV13850 |
|
Lens view |
FOV90°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
0～60℃ |
|
Storage temperature |
-20～70℃ |
|
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
