Autofocus S5K3L8 Sensor 13MP Camera Module MIPI Interface For Mobile Phones And Tablets
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | XLS131796-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | S5K3L8 Sensor |
|---|---|---|---|
| Resolution: | 13MP 4224(H) X 3136(V) | Dimensions: | Customizable |
| Lens FOV: | 90°(optional) | Focus Type: | Auto Focus |
| Interface: | MIPI | Feature: | Low Light Performance |
| High Light: | S5K3L8 Sensor 13MP Camera Module,13MP Camera Module For Mobile Phones,MIPI Camera Module For Tablets |
||
Product Description

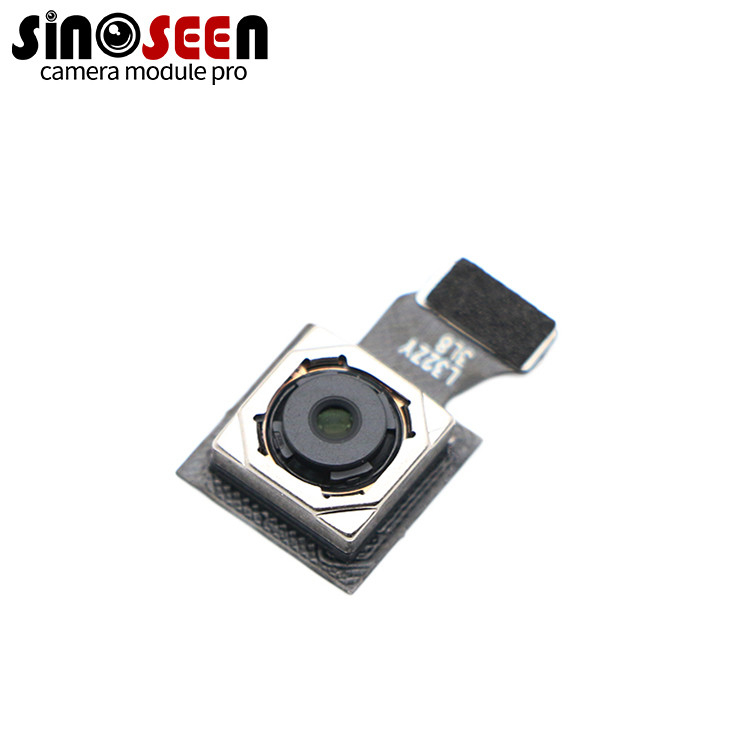

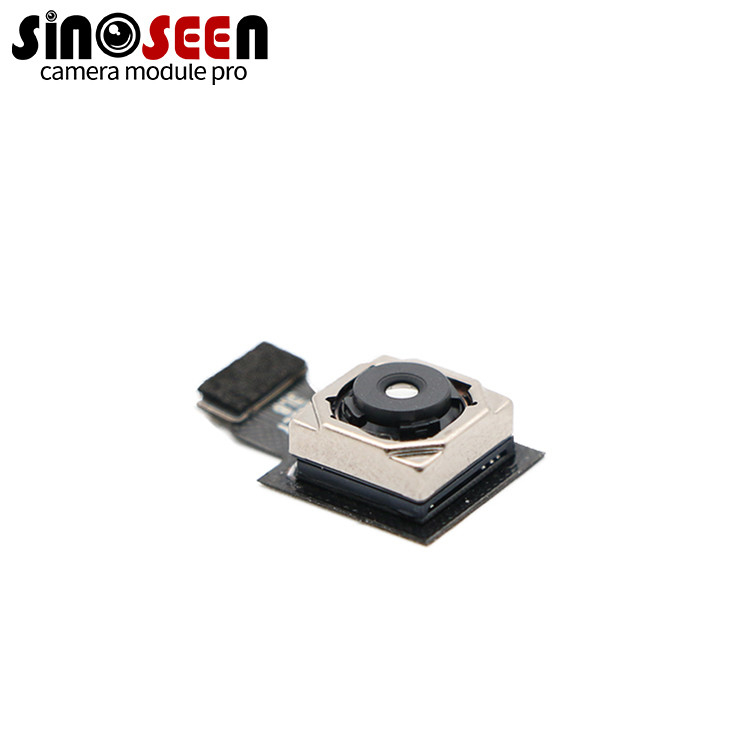

Autofocus 13MP S5K3L8 sensor MIPI interface camera module for mobile phones and tablets
13MP Camera Module
The S5K3L8 sensor is a 13-megapixel image sensor commonly used in phones and tablets. It offers a high resolution of 13 million pixels for detailed and clear images. The camera module has an auto-focus function, and the lens can automatically adjust the focus to ensure clear and sharp images. Autofocus is particularly useful in mobile devices and tablets, where users can capture images of objects at different distances. This camera module is designed for integration into mobile phones and tablets. Its compact size and high-resolution capabilities make it ideal for capturing high-quality images and videos on these devices.
Specification
|
Module No |
XLS131796-V1.0 |
|
Pixel Size |
3.75μm x 3.75μm |
|
Effective Pixels |
13MP 4224(H) x 3136(V) |
|
Video output |
Raw Bayer10bit/8bit |
|
Active Array Size Video Rate |
Full resolution@30FPS,1080P@60FPS |
|
Sensor Type |
S5K3L8 sensor |
|
Lens view |
FOV90°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
0～60℃ |
|
Storage temperature |
-20～70℃ |
|
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
