IMX377 CMOS USB Camera Module 12MP FF Two Microphone For Security Monitoring
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM1024-V1.0-57 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 12mp Camera Module | Sensor: | IMX577/377 |
|---|---|---|---|
| Resolution: | 12MP 4072 (H) X3064 (V) | Dimensions: | (customizable) |
| Unit Cell Size: | 1.55 Um (H) X 1.55 Um (V) | Focus Type: | Fixed Focus |
| Interface: | USB | Feature: | FHD |
| Highlight: | Two Microphone USB Camera Module,CMOS USB Camera Module,12MP Camera Module For Security Monitoring |
||
Product Description

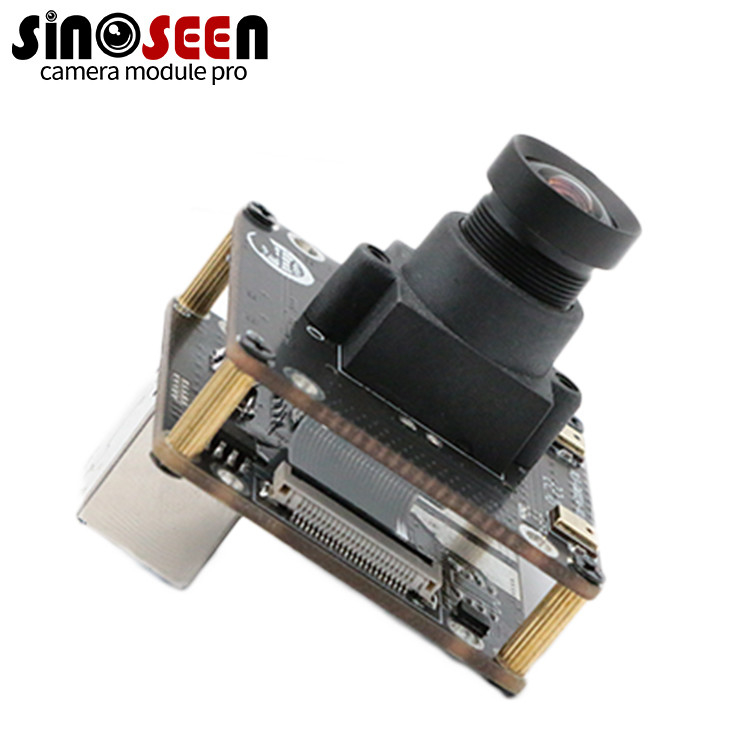

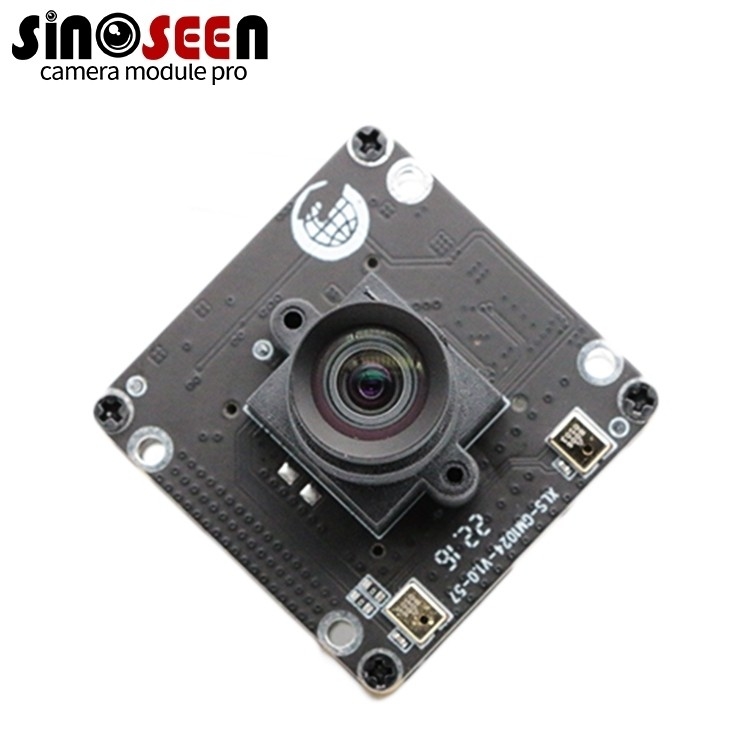

IMX377 CMOS 12MP FF Two Microphone USB Camera Module For Security Monitoring
usb camera module
This sensor with IMX377 is a high-quality CMOS sensor developed by Sony. With a resolution of 12MP, it delivers detailed and clear images for better identification and analysis of objects or individuals in surveillance footage. The inclusion of two microphones enables stereo capture for a more immersive audio experience. It also has the potential to improve audio quality and cancel noise, allowing for clear and accurate recordings in security surveillance scenarios. The module captures detailed, high-resolution images and videos, making it easier to identify objects, individuals or key details in surveillance footage. Stereo capture enhances audio recording capabilities and provides a more comprehensive monitoring experience.
Specification
|
Effective Pixels |
4072 (H) x3064 (V) |
|
Image Sensor |
(Type 1/2.3)12.3 Mega-pixel CMOS |
|
Sensor Type |
Sony IMX377 |
|
Chip size |
7.564 mm (H) × 5.476 mm (V) |
|
Substrate material |
Silicon |
|
operating temperature |
-20 to +75 ˚C |
|
storage temperature |
-30 to +80 ˚C |
|
Input frequency range |
27.0 MHz |
|
Dimensions |
Customizable |
