OV2710 Sensor Fixed Focus Lens 1080P Camera Module USB Driver Free Plug And Play
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM882M-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | Omnivision OV2710 |
|---|---|---|---|
| Resolution: | 2MP (1920*1080) | Dimensions: | 38x38mm (customizable) |
| Lens FOV: | 70°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Plug&Play |
| High Light: | OV2710 Sensor 1080P Camera Module,USB2.0 1080P Camera Module,2MP USB Camera Module |
||
Product Description
OV2710 sensor fixed focus lens 1080P camera module USB driver-free plug and play

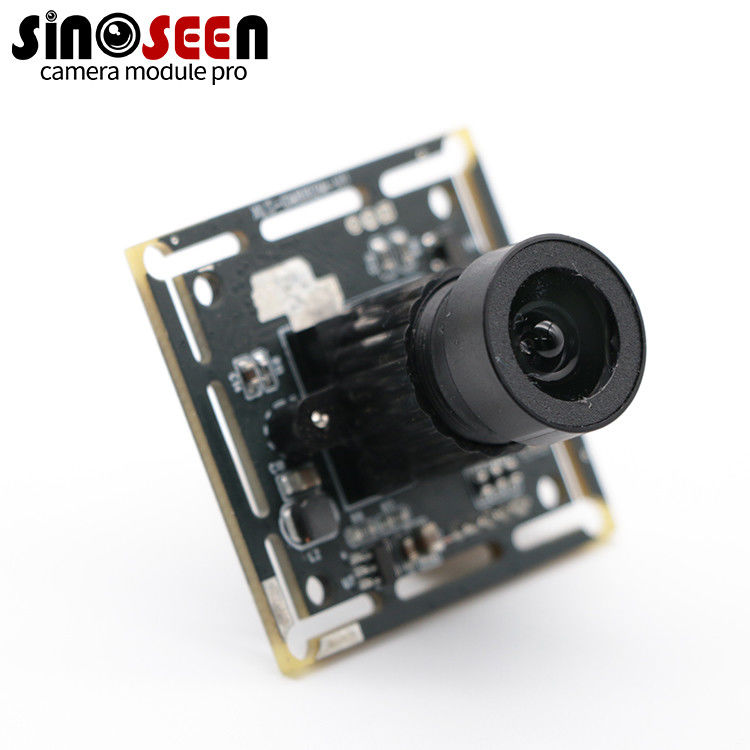

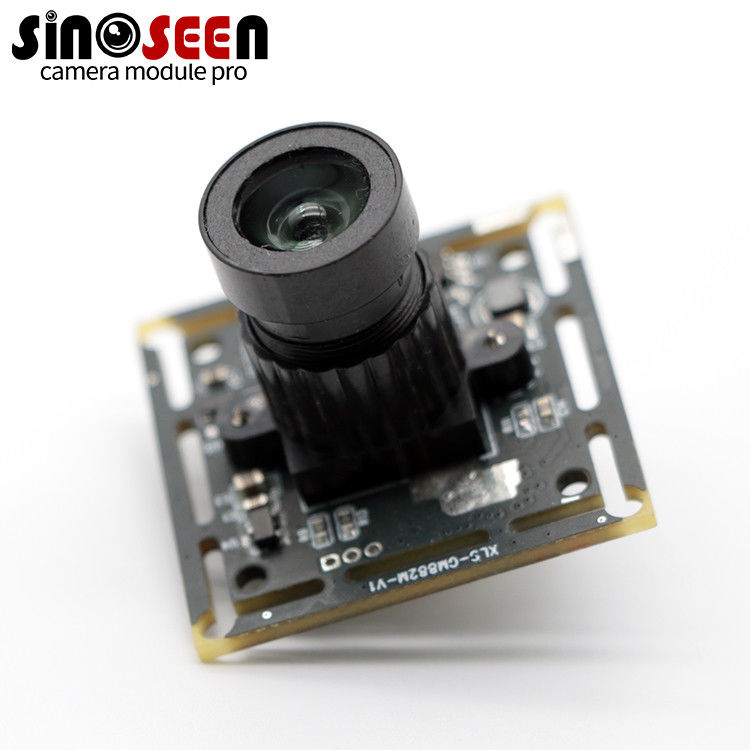

OV2710 USB Camera Module
This module OV2710 is a CMOS image sensor developed by OmniVision. With its 1080P resolution (1920x1080 pixels), it captures high-quality images and videos, suitable for applications that require clear and detailed visuals. Fixed focus lenses do not require manual adjustment of focus. It ensures that the camera module is always correctly focused, simplifying setup and ensuring worry-free operation. 1080P resolution delivers high-definition images, capturing clear and detailed visuals. This resolution is typically used for applications such as video conferencing, live broadcasting, and surveillance that require clear and sharp images.
|
Model No |
SNS-GM882M-V1 |
|
Sensor |
1/2.7’’ Omnivision OV2710 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image Area |
5856µm x 3276µm |
|
Compression format |
YUV2 / MJPG |
|
Resolution |
See above |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
39dB |
|
Dynamic range |
69dB |
|
Sensitivity |
3700 mV/lux-sec |
|
Interface type |
USB2.0 |
|
|
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
IR Cut filter: 850nm |
|
|
FOV: 70° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38MM x 38MM |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 55°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
