Embedded Barcode Scanner Module 1D 2D Codes Reader For Vending Machine

Embedded Barcode Scanner Module 1D 2D Codes Reader For Vending Machine

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: WH-1036

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Sensor: Image Type,CMOS Sensor Acquisition Speed: 1/30 Fps(E21W) 1/120fps(E21W1)
FOV: Diagonal 84°,Level 72°,Vertical 54° Precision: ≥5mil
Print Contrast: 20% Minimum Reflectance Input Voltage: 3-3.6V Or 3.6-16V
High Light:

Barcode Scanner Module 1D 2D Codes Reader


Embedded Barcode Scanner Module


Barcode Scanner Module For Vending Machine

Product Description

1D 2D Code Embedded Barcode Scanning Module Vending Machine


This is a one-dimensional and two-dimensional code embedded barcode scanning module in a vending machine. It is a device or component that can read and decode one-dimensional and two-dimensional barcodes in the vending machine. This module enables vending machines to scan barcodes on products or items for various purposes such as inventory management, product identification, and payment processing.


Acquisition Performance
Sensor Image Type,CMOS Sensor
Acquisition Speed 1/30 fps(E21W) 1/120fps(E21W1)
FOV Diagonal 84°,Level 72°,Vertical 54°
Reading Performance
Precision ≥5mil
Depth of Field Symbologies
Code 128 10mil 18bytes (Paper)
Code 128 18bytes (Screen)
QR 10mil 160bytes (Paper)
DM 15mil 100bytes (Paper)
QR 18bytes (Screen)
Code 128 10mil 18bytes (Paper)
Symbologies 2D:QR Code, Data Matrix, PDF417,Han Xin Code,Dotcode,OCR,etc.
1D:UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128,
ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25,
Standard 25, Codabar, MSI/MSI PLESSEY, GS1
Print Contrast 20% minimum reflectance
Environmental Parameter
Operating Temperature -30℃ ~ 70℃
Storage Temperature -40℃ ~ 80℃
Humidity 5% ~ 95% RH (non-condensing)
Ambient Light Max.100,000 Lux
Electrical Parameter
Input Voltage 3-3.6V or 3.6-16V
Operating Current <190mA(3.3V Input),<150mA(5V Input)
Standby Current < 5mA

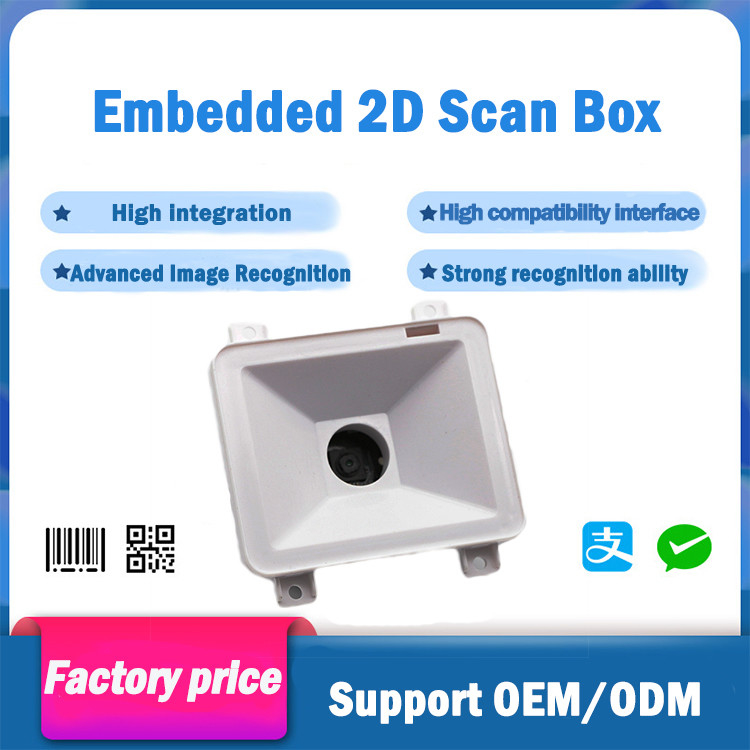

Embedded Barcode Scanner Module 1D 2D Codes Reader For Vending Machine 0

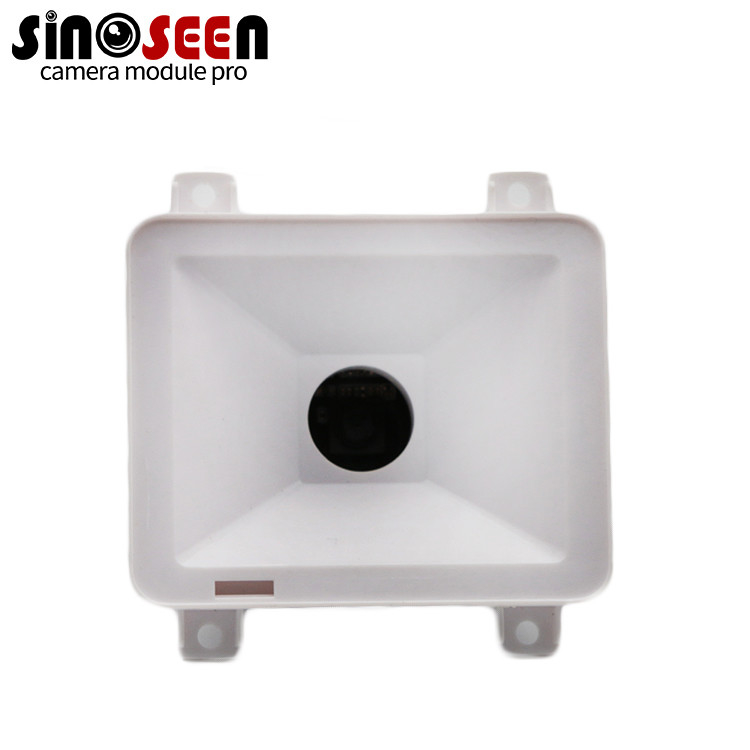

Embedded Barcode Scanner Module 1D 2D Codes Reader For Vending Machine 1
