Place of Origin:
Shenzhen,China
Brand Name:
Sinoseen
Certification:
RoHS
Model Number:
SNS-DZ1117-V1.0

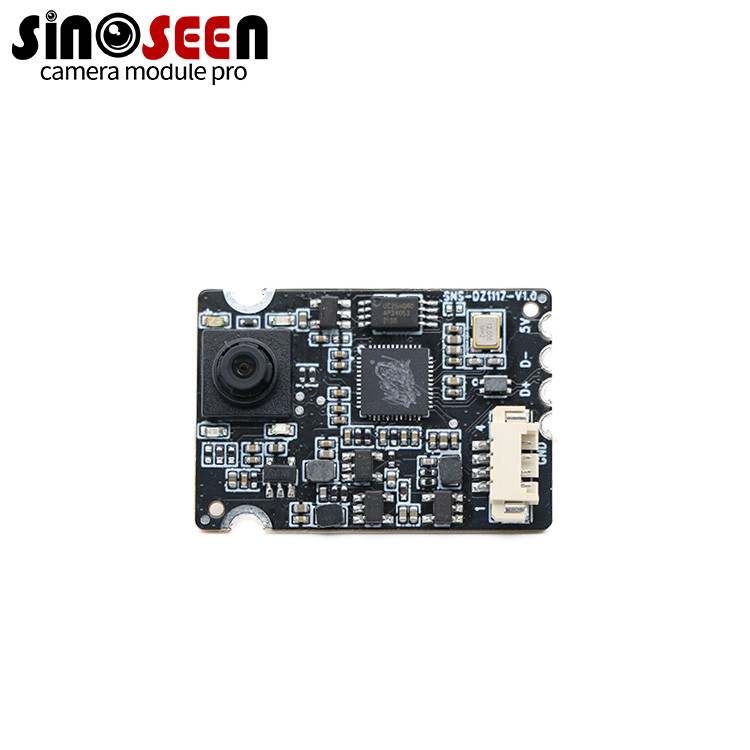

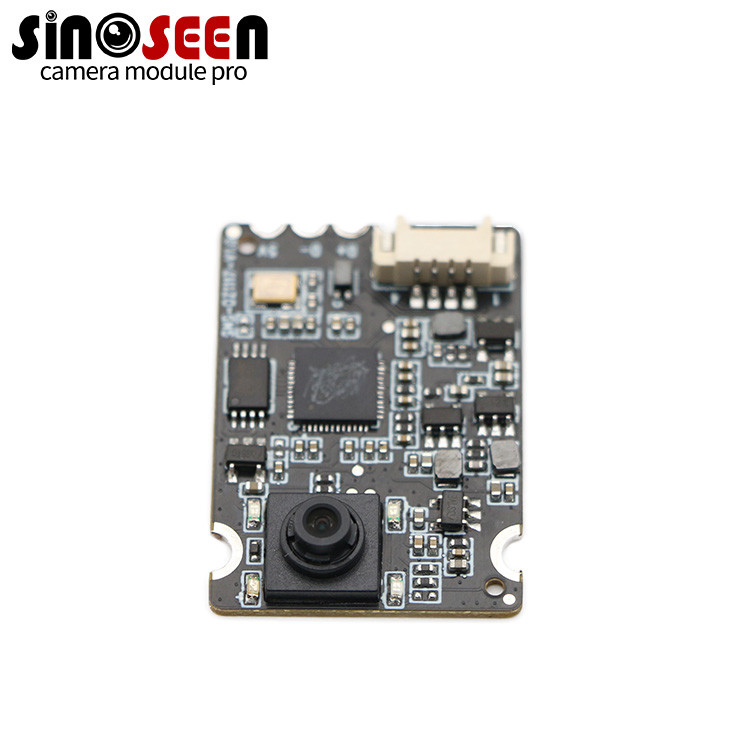

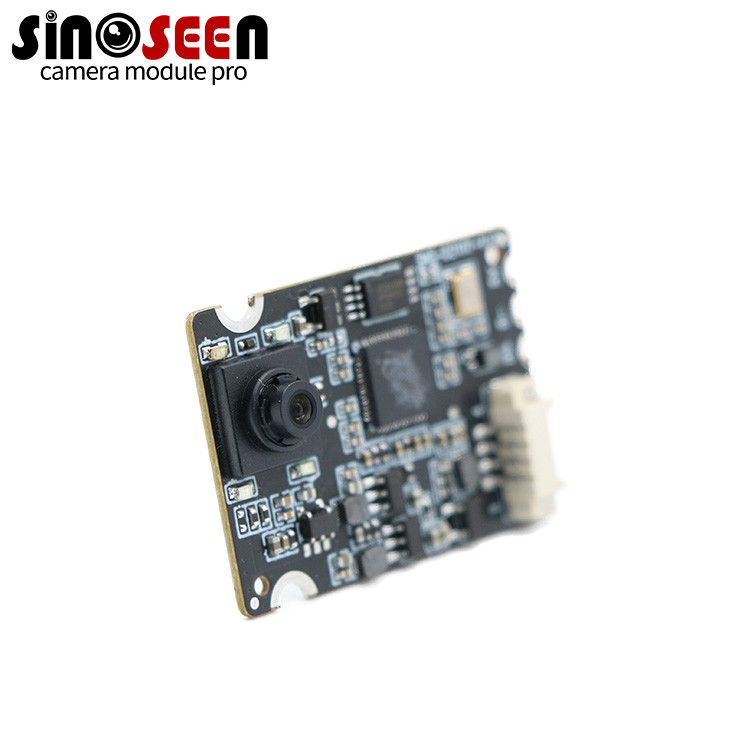

USB Camera Module
This camera module provides high frame rate capabilities. It can capture video at 120 frames per second (fps) or 240 fps. Higher frame rates enable smooth video playback, making it suitable for applications that require capturing fast-moving objects or motion analysis. The camera module supports global exposure control. Global exposure means that all pixels of the image sensor are exposed simultaneously, ensuring consistent exposure throughout the image. This feature helps avoid issues such as rolling shutter effects or inconsistent exposure levels, especially in dynamic or rapidly changing scenes. The camera module utilizes a USB interface to connect to a host device such as a computer or microcontroller. USB interface connection is simple and convenient, and it widely supports various platforms and operating systems.
Specification
Model No | SNS-DZ1117-V1.0 |
Sensor | SC035HGS Sensor |
Pixel | 1 Mega Pixel |
Most effective pixels | 1280(H) x 720(V) |
Pixel Size | 3.0µm x 3.0µm |
Image area | 3888µm x 2430µm |
Compression format | MJPEG / YUV2 (YUYV) |
Resolution & Frame rate | See above |
Shutter Type | Electronic rolling shutter |
Focus type | Fixed focus |
S/N ratio | 40dB |
Dynamic range | 69dB |
Sensitivity | 3700mV / lux-sec |
CRA (chief ray angle) | 25° |
Interface type | USB2.0 |
Lens FOV | 100° |
| Brightness/Contrast/Color saturation/Hue/Definition/ |
Audio frequency | Optional |
Power supply | USB BUS POWER |
Power consumption | DC 5V, 120mW |
Main chip | DSP/SENSOR/FLASH |
Auto Exposure Control (AEC) | Support |
Auto White Balance (AEB) | Support |
Auto Gain Control (AGC) | Support |
Dimension | Customizable |
Storage temperature | -20°C to 70°C |
Operating temperature | 0°C to 60°C |
USB cable length | Default |
| WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Camera module customization process
1 According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right SENSER+ lens solution, and then design the product PCB or FPC according to the structural requirements.
2 examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
